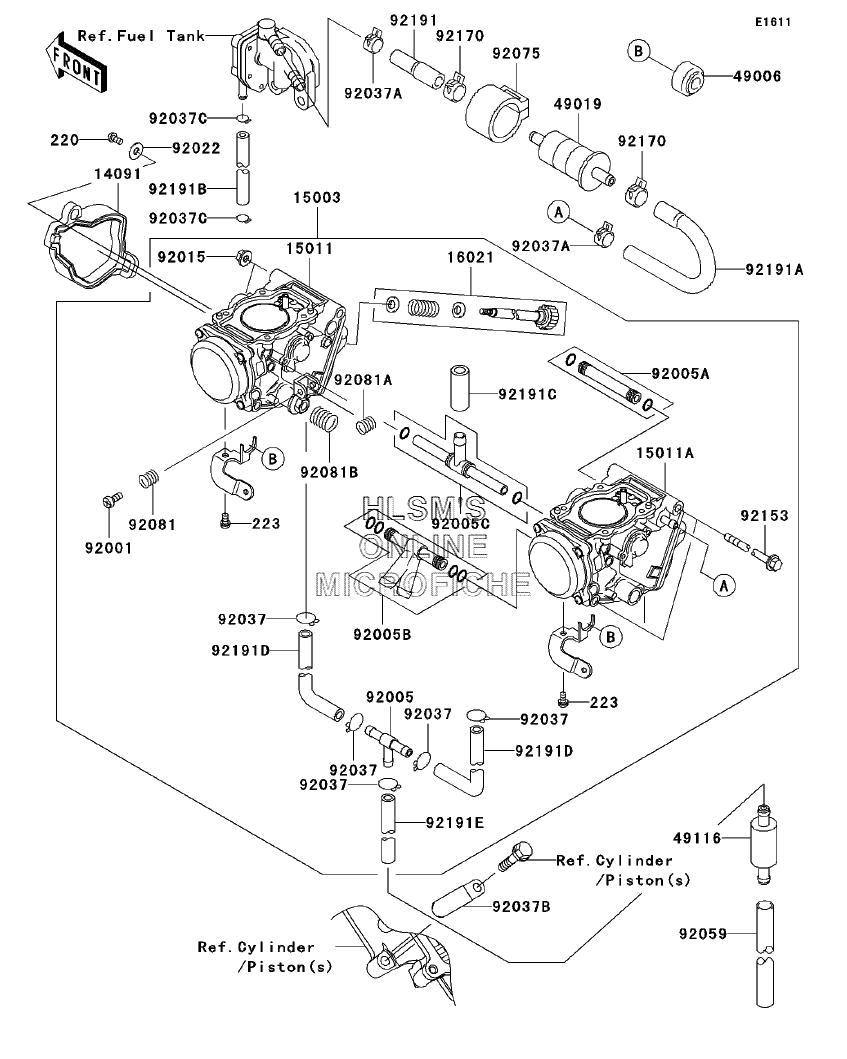

CARBURETOR для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
220220B0408 SCREW PAN CROSSCREW PAN CROS
-
223223D0408 SCREW PAN WS CROSSCREW PAN WS CROS
-
1409114091-1196 COVER, THROTTLE CABLECOVER, THROTTLE CABLE
-
1500315003-0019 CARBURETOR ASSYCARBURETOR ASSY
-
1501115011-0015 CARBURETOR (FRONT)CARBURETOR (FRONT)
-
15011A15011-0016 CARBURETOR (REAR)CARBURETOR (REAR)
-
1602116021-1223 SCREW THROTTLE STOPSCREW THROTTLE STOP
-
4900649006-1353 BOOT, STARTER CABLEBOOT, STARTER CABLE
-
4901949019-1055 FILTER FUELFILTER FUEL
-
4911649116-1126 VALVE ASSYVALVE ASSY
-
9200192001-1998 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
9200592005-1112 FITTING, FUEL, T TYPEFITTING, FUEL, T TYPE
-
92005A92005-1375 FITTINGFITTING
-
92005B92005-1376 FITTINGFITTING
-
92005C92005-1385 FITTINGFITTING
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
9203792037-1201 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1505 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1539 CLAMP, L=45CLAMP, L=45
-
92037C92037-1610 CLAMPCLAMP
-
9205992059-1736 TUBE, 7X10X100TUBE, 7X10X100
-
9207592075-1853 DAMPER, FUEL FILTERDAMPER, FUEL FILTER
-
9208192081-1620 SPRING, THROTTLE ADJUST (UPPER)SPRING, THROTTLE ADJUST (UPPER)
-
92081A92081-1621 SPRING, THROTTLE ADJUST (LOWER)SPRING, THROTTLE ADJUST (LOWER)
-
92081B92081-1622 SPRING, THROTTLE ADJUST (CENTER)SPRING, THROTTLE ADJUST (CENTER)
-
9215392153-1068 BOLT, 5X143BOLT, 5X143
-
9217092170-1492 CLAMPCLAMP
-
9219192191-0017 TUBE, TAP FUEL FILTERTUBE, TAP FUEL FILTER
-
92191A92191-0018 TUBE, FUEL FILTER CARBURETORTUBE, FUEL FILTER CARBURETOR
-
92191B92191-1251 TUBETUBE
-
92191C92191-1672 TUBE, 7X11X25TUBE, 7X11X25
-
92191D92191-1673 TUBE, 4.5X8X65TUBE, 4.5X8X65
-
92191E92191-1674 TUBE, 4.5X8X420TUBE, 4.5X8X420
