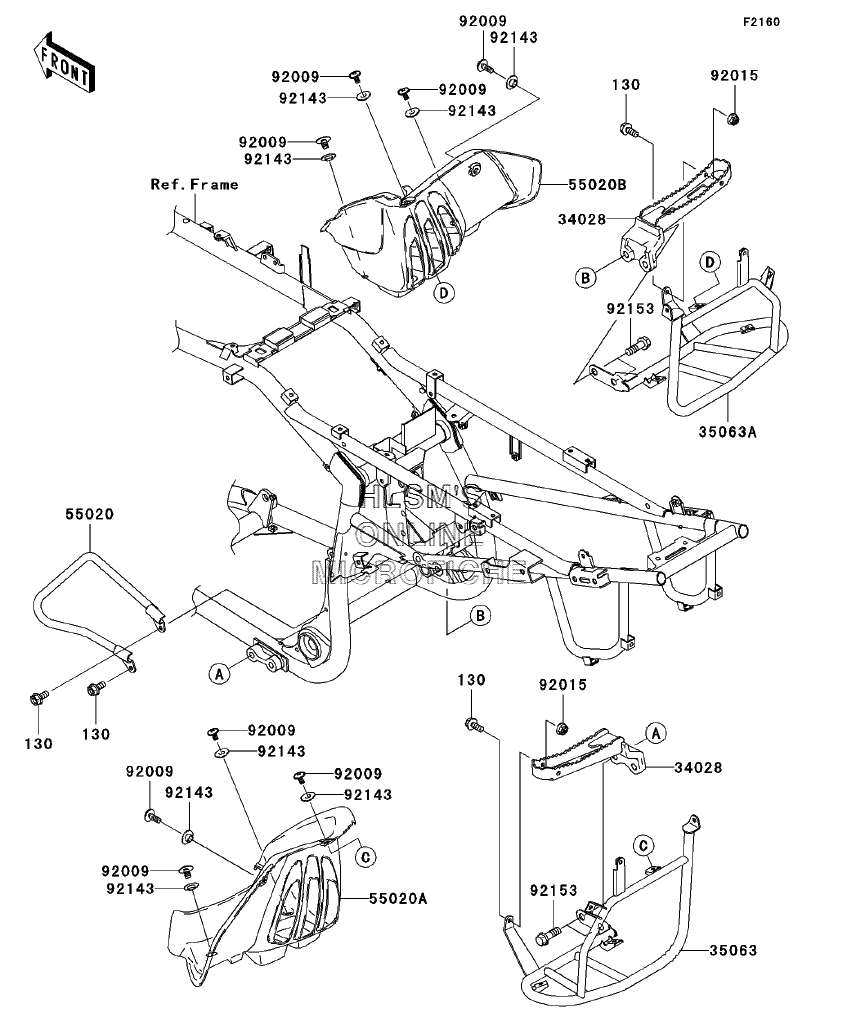

FOOTRESTS для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT FLANGED, 6X14 (BLACK)BOLT FLANGED, 6X14 (BLACK)
-
3402834028-1535-HN STEP, G.GRAYSTEP, G.GRAY
-
3506335063-0027 STAY, STEP (LEFT)STAY, STEP (LEFT)
-
35063A35063-0028 STAY, STEP (RIGHT)STAY, STEP (RIGHT)
-
5502055020-0033 GUARD, LEFT STEPGUARD, LEFT STEP
-
55020A55020-1799-6Z GUARD, STEP (LEFT/F.BLACK)GUARD, STEP (LEFT/F.BLACK)
-
55020B55020-1800-6Z GUARD, STEP (RIGHT/F.BLACK)GUARD, STEP (RIGHT/F.BLACK)
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9214392143-1087 COLLARCOLLAR
-
9215392153-0427 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
