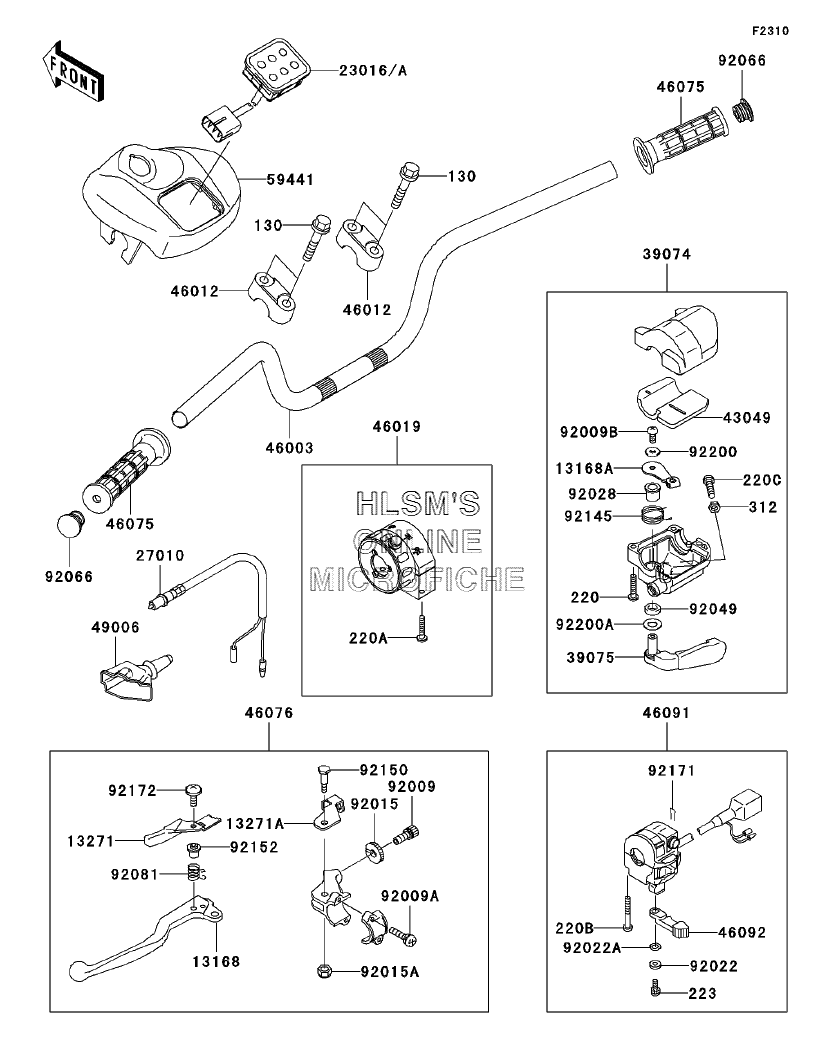

HANDLEBAR для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
1316813168-0002 LEVER (LEFT)LEVER (LEFT)
-
13168A13168-1715 LEVERLEVER
-
1327113271-0011 PLATE, LEVER LOCKPLATE, LEVER LOCK
-
13271A13271-1259 PLATE, LOCKPLATE, LOCK
-
23016A23016-0002 LAMP ASSYLAMP ASSY
-
2701027010-1294 SWITCH, BRAKESWITCH, BRAKE
-
3907439074-0001 LEVER ASSY THROTTLELEVER ASSY THROTTLE
-
3907539075-1062 LEVER THROTTLELEVER THROTTLE
-
4304943049-1088 PACKINGPACKING
-
4600346003-0001-HN HANDLE, G.GRAYHANDLE, G.GRAY
-
4601246012-1168 HOLDER HANDLEHOLDER HANDLE
-
4601946019-1122 GRIP ASSY, SHIFT CONTROLGRIP ASSY, SHIFT CONTROL
-
4607546075-1210 GRIPGRIP
-
4607646076-1258 LEVER ASSY GRIP (LEFT)LEVER ASSY GRIP (LEFT)
-
4609146091-1848 HOUSING ASSY CONTROL (LEFT)HOUSING ASSY CONTROL (LEFT)
-
4609246092-1217 LEVER GRIP, CHOKELEVER GRIP, CHOKE
-
4900649006-1261 BOOTBOOT
-
5944159441-1173-6D COVER HANDLE (BLACK)COVER HANDLE (BLACK)
-
9200992009-1435 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
92009A92009-1841 SCREW, 6X20SCREW, 6X20
-
92009B92009-1959 SCREWSCREW
-
9201592015-1596 NUT, CABLE ADJUST LOCK, 8MMNUT, CABLE ADJUST LOCK, 8MM
-
92015A92015-1829 NUTNUT
-
9202292022-1837 WASHER, 5MMWASHER, 5MM
-
92022A92022-1838 WASHER, WAVE, 5MMWASHER, WAVE, 5MM
-
9202892028-1986 BUSHINGBUSHING
-
9204992049-1578 SEAL OILSEAL OIL
-
9206692066-1550 PLUGPLUG
-
9208192081-1358 SPRING, LOCK RETURNSPRING, LOCK RETURN
-
9214592145-1392 SPRINGSPRING
-
9215092150-1420 BOLTBOLT
-
9215292152-1176 COLLARCOLLAR
-
9217192171-1095 CLAMP, CLIPCLAMP, CLIP
-
9217292172-0078 SCREW, 5X20SCREW, 5X20
-
9220092200-1558 WASHERWASHER
-
92200A92200-1559 WASHERWASHER
-
130130P0860 BOLT FLANGEDBOLT FLANGED
-
220220C0520 SCREW PAN CROSSCREW PAN CROS
-
220A220C0525 SCREW PAN CROSSCREW PAN CROS
-
220B220C0535 SCREW PAN CROSSCREW PAN CROS
-
220C220C0625 SCREW PAN CROS, 6X25 (BLACK)SCREW PAN CROS, 6X25 (BLACK)
-
223223C0512 SCREW PAN WS CROSSCREW PAN WS CROS
-
312312C0600 NUT HEX, 6MM (BLACK)NUT HEX, 6MM (BLACK)
