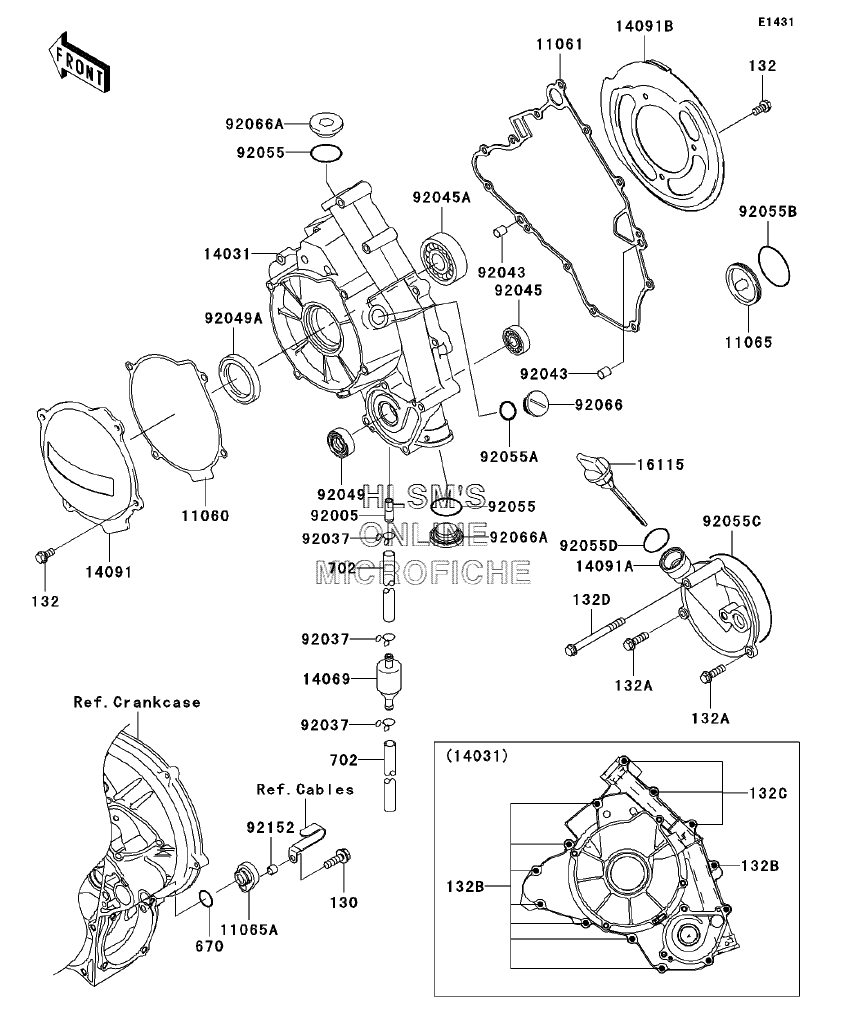

ENGINE COVER(S) для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
130130Z0620 BOLT FLANGEDBOLT FLANGED
-
132132Y0612 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
132A132Y0620 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
132B132Y0630 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
132C132Y0655 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
132D132Y0665 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
670670D2014 O RING, 14MMO RING, 14MM
-
702702A07035 TUBE RUBBERTUBE RUBBER
-
1106011060-1717 GASKET, BLANKGASKET, BLANK
-
1106111061-1119 GASKETGASKET
-
1106511065-1151 CAPCAP
-
11065A11065-1252 CAP, OIL COVERCAP, OIL COVER
-
1403114031-0030 COVER GENERATORCOVER GENERATOR
-
1406914069-1051 BREATHERBREATHER
-
1409114091-1538 COVER, GENERATOR COVERCOVER, GENERATOR COVER
-
14091A14091-1543 COVER, OILCOVER, OIL
-
14091B14091-1571 COVER, BELT CONVERTERCOVER, BELT CONVERTER
-
1611516115-0001 CAP OIL FILLERCAP OIL FILLER
-
9200592005-1369 FITTINGFITTING
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-1246 BEARING BALL, 6901BEARING BALL, 6901
-
92045A92045-1403 BEARING BALLBEARING BALL
-
9204992049-1228 SEAL OIL, AC037AE0SEAL OIL, AC037AE0
-
92049A92049-1576 SEAL OILSEAL OIL
-
9205592055-1136 RING O, 25.7X2.4RING O, 25.7X2.4
-
92055A92055-1146 RING ORING O
-
92055B92055-1279 RING O, 44.7X2.4RING O, 44.7X2.4
-
92055C92055-1632 RING ORING O
-
92055D92055-2185 RING O, 20MMRING O, 20MM
-
9206692066-0011 PLUG, COVERPLUG, COVER
-
92066A92066-0012 PLUG, 25X8PLUG, 25X8
-
9215292152-1332 COLLARCOLLAR
