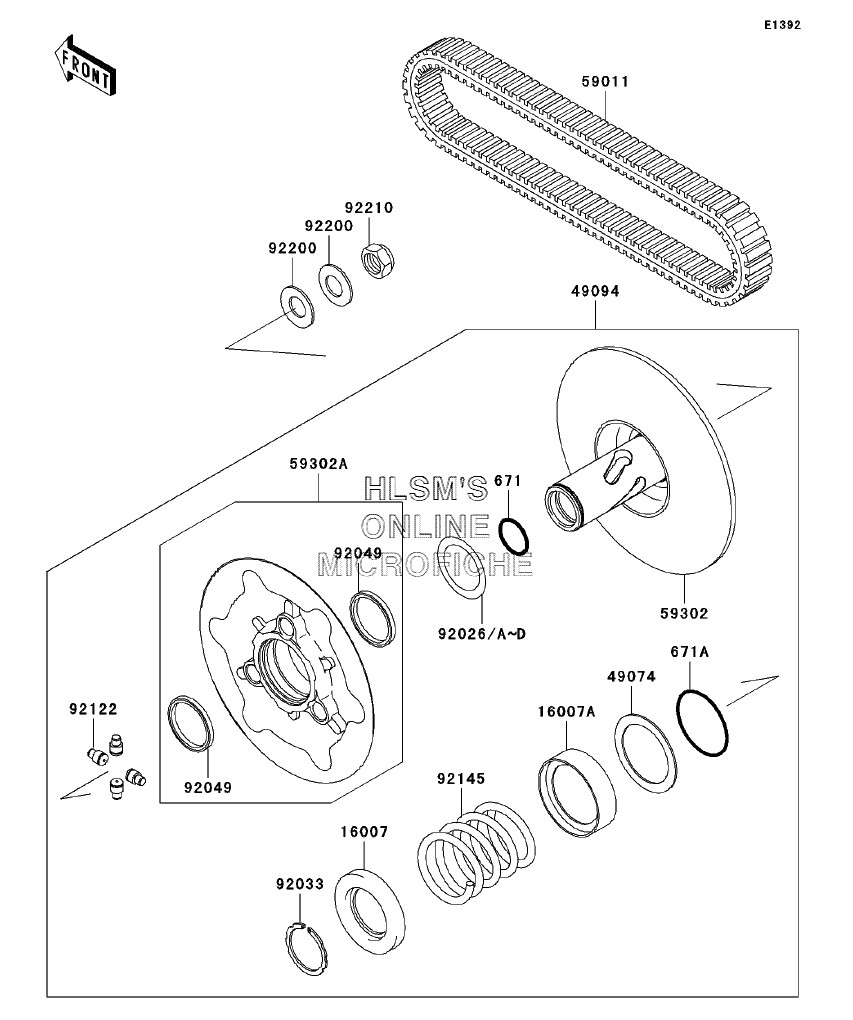

DRIVEN CONVERTER для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
671671D2530 O RINGO RING
-
671A671D2550 O RINGO RING
-
1600716007-1203 SEAT SPRINGSEAT SPRING
-
16007A16007-1221 SEAT SPRING, SHEAVE MOVABLESEAT SPRING, SHEAVE MOVABLE
-
4907449074-1055 PLATE THRUSTPLATE THRUST
-
4909449094-0005 CONVERTER ASSY DRIVENCONVERTER ASSY DRIVEN
-
5901159011-0003 BELTBELT
-
5930259302-0001 SHEAVE COMP, FIXEDSHEAVE COMP, FIXED
-
59302A59302-0002 SHEAVE COMP, MOVABLESHEAVE COMP, MOVABLE
-
9202692026-0034 SPACER, T=0.3SPACER, T=0.3
-
92026A92026-1565 SPACER, T=1.00SPACER, T=1.00
-
92026B92026-1569 SPACER, T=0.60SPACER, T=0.60
-
92026C92026-1570 SPACER, T=1.40SPACER, T=1.40
-
92026D92026-1617 SPACER, T=0.8SPACER, T=0.8
-
9203392033-1317 RING SNAPRING SNAP
-
9204992049-1528 SEAL OILSEAL OIL
-
9212292122-1209 ROLLERROLLER
-
9214592145-1462 SPRING (YELLOW)SPRING (YELLOW)
-
9220092200-1505 WASHERWASHER
-
9221092210-1367 NUT, 18MMNUT, 18MM
