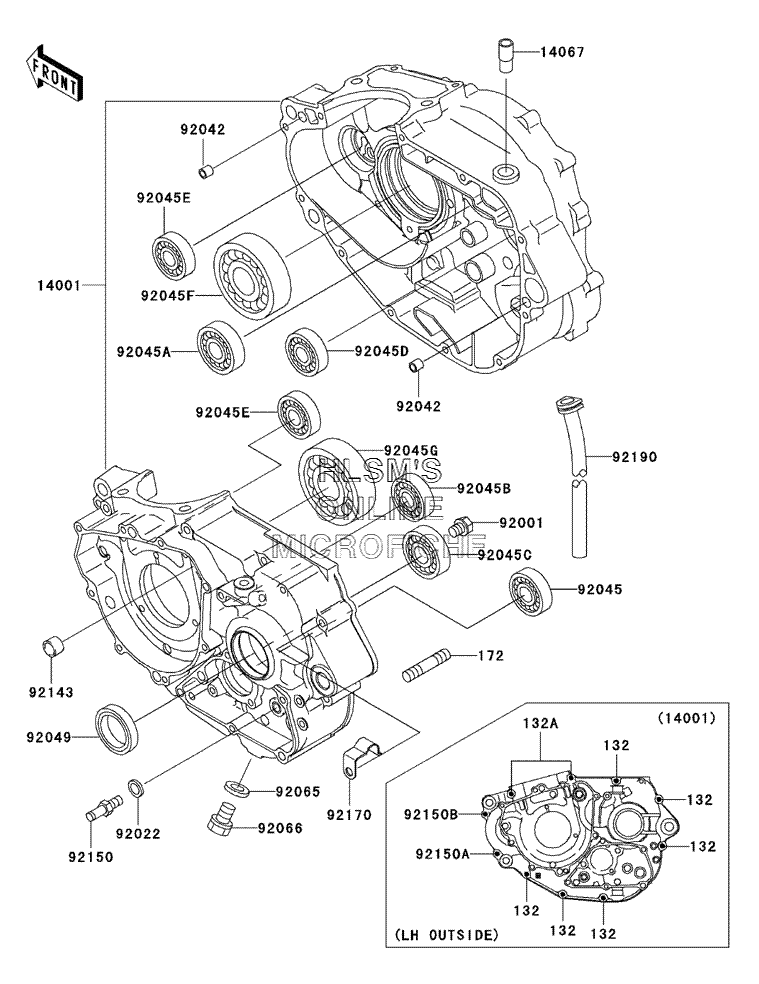

CRANKCASE для Kawasaki Super Sherpa - 2000 года выпуска
-
№АртикулНазвание
-
132132Y0650 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0670 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
172172G0680 BOLT, STUD, 6X80BOLT, STUD, 6X80
-
1400114001-5359 SET, CRANKCASESET, CRANKCASE
-
1406714067-006 FITTING, BREATHERFITTING, BREATHER
-
9200192001-1829 BOLT, W/WASHER, 6X14BOLT, W/WASHER, 6X14
-
9202292022-1415 WASHER, 10.2X18X1.0, SK5WASHER, 10.2X18X1.0, SK5
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204592045-036 BEARING, BALL, #6905BEARING, BALL, #6905
-
92045A92045-1041 BEARING, BALL, TMB204 JRBEARING, BALL, TMB204 JR
-
92045B92045-1287 BEARING, BALL, TMB203LUBEARING, BALL, TMB203LU
-
92045C92045-1288 BEARING, BALL, TMB205LUBEARING, BALL, TMB205LU
-
92045D92045-1291 BEARING, BALL, TMB203BEARING, BALL, TMB203
-
92045E92045-1346 BEARING, BALL, TMB302JR2BEARING, BALL, TMB302JR2
-
92045F92045-1347 BEARING, BALL, TMB306JR2BEARING, BALL, TMB306JR2
-
92045G92045-1348 BEARING, BALL, 3TM, 6207CJR2BEARING, BALL, 3TM, 6207CJR2
-
9204992049-1577 SEAL, OIL, TC32457SEAL, OIL, TC32457
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1241 PLUG, DRAINPLUG, DRAIN
-
9214392143-1263 COLLARCOLLAR
-
9215092150-1803 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92150A92150-1874 BOLT, SOCKET, 6X50BOLT, SOCKET, 6X50
-
92150B92150-1875 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
9217092170-1803 CLAMP, TUBECLAMP, TUBE
-
9219092190-1493 TUBETUBE
