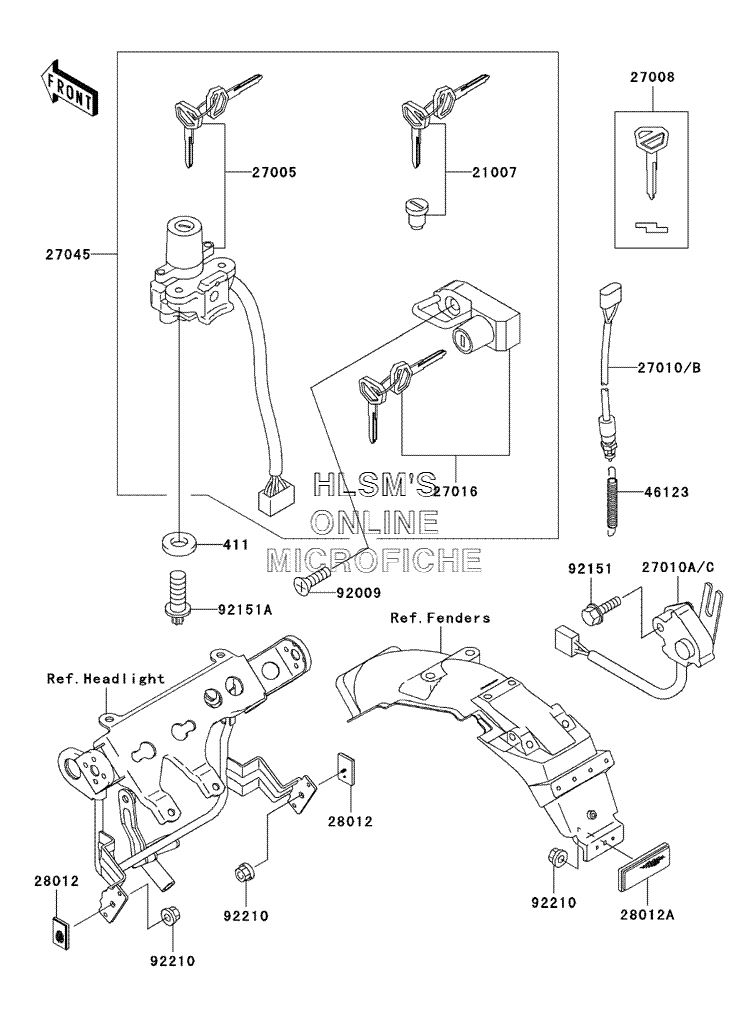

IGNITION SWITCH для Kawasaki Super Sherpa - 2000 года выпуска
-
№АртикулНазвание
-
411411E0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
2100721007-5040 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-1203 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1170 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1301 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
27010A27010-1377 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2701627016-5207 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
2704527045-5038 SWITCH, ASSYSWITCH, ASSY
-
2801228012-1003 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012A28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
4612346123-1056 SPRING, COMP, REAR BRAKE SWITCHSPRING, COMP, REAR BRAKE SWITCH
-
9200992009-1753 SCREW, 6X30SCREW, 6X30
-
9215192151-1216 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92151A92151-1911 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
