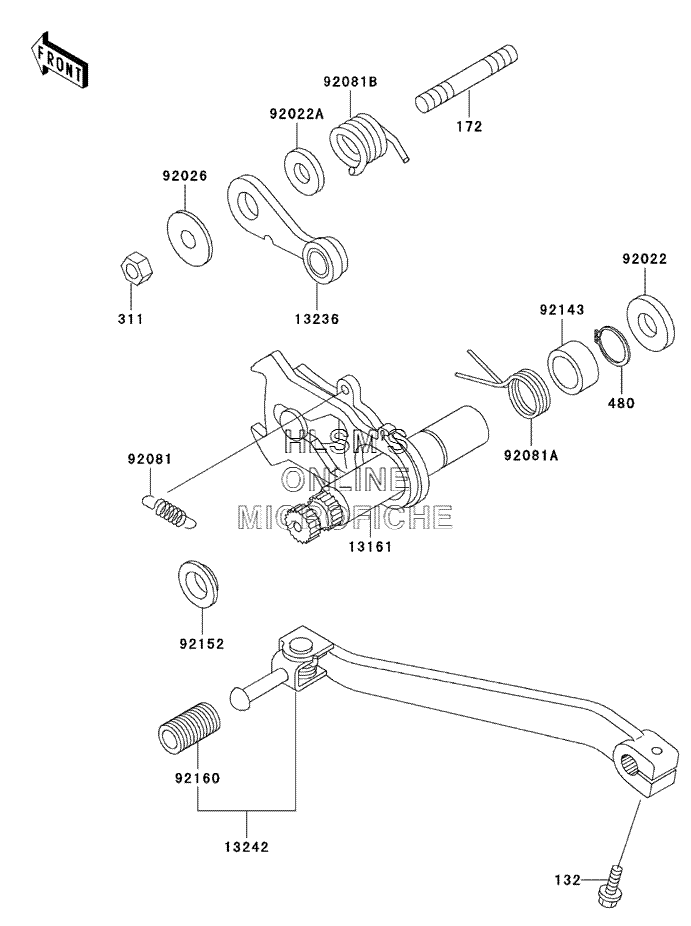

GEAR CHANGE MECHANISM для Kawasaki Super Sherpa - 2000 года выпуска
-
№АртикулНазвание
-
132132Y0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
172172G0612 BOLT, STUD, 6X12BOLT, STUD, 6X12
-
311311G0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
480480J1300 CIRCLIP, TYPE, C, 13MMCIRCLIP, TYPE, C, 13MM
-
1316113161-1242 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1323613236-1209 LEVER, COMP, NEUTRAL POSITIONLEVER, COMP, NEUTRAL POSITION
-
1324213242-1344 LEVER, ASSY, CHANGE, PEDALLEVER, ASSY, CHANGE, PEDAL
-
9202292022-1496 WASHER, 13.3X20X1WASHER, 13.3X20X1
-
92022A92022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
9208192081-076 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
92081A92081-1129 SPRING, TENSIONSPRING, TENSION
-
92081B92081-1993 SPRING, POSITION LEVERSPRING, POSITION LEVER
-
9214392143-1148 COLLARCOLLAR
-
9215292152-1075 COLLARCOLLAR
-
9216092160-1108 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
