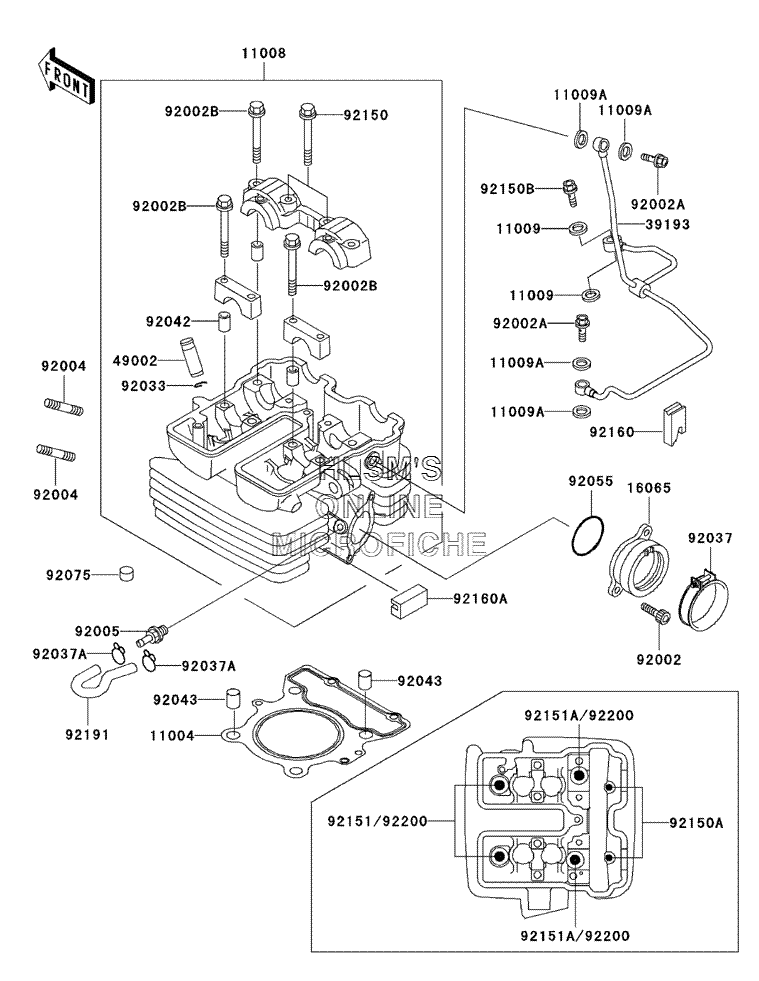

CYLINDER HEAD для Kawasaki Super Sherpa - 2000 года выпуска
-
№АртикулНазвание
-
1100411004-1328 GASKET, HEADGASKET, HEAD
-
1100811008-1340 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1100911009-1105 GASKET, 10X14.5X1.5GASKET, 10X14.5X1.5
-
11009A11009-1344 GASKET, 8.2X14X1.0GASKET, 8.2X14X1.0
-
1606516065-1342 HOLDER, CARBURETORHOLDER, CARBURETOR
-
3919339193-1032 PIPE, OILPIPE, OIL
-
4900249002-1126 GUIDE, VALVEGUIDE, VALVE
-
9200292002-1143 BOLT, 6X16BOLT, 6X16
-
92002A92002-1618 BOLT, BANJO, 8X20BOLT, BANJO, 8X20
-
92002B92002-1756 BOLT, 6X40BOLT, 6X40
-
9200492004-1217 STUD, 8X22STUD, 8X22
-
9200592005-1337 FITTINGFITTING
-
9203392033-1247 RING, SNAPRING, SNAP
-
9203792037-1304 CLAMP, ID=53 (BLACK)CLAMP, ID=53 (BLACK)
-
92037A92037-1610 CLAMPCLAMP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9205592055-520 O-RINGO-RING
-
9207592075-182 DAMPERDAMPER
-
9215092150-1083 BOLT, 6X35BOLT, 6X35
-
92150A92150-1552 BOLT, 6X135BOLT, 6X135
-
92150B92150-1641 BOLT, BANJO, 10X23BOLT, BANJO, 10X23
-
9215192151-1152 BOLT, 10X158BOLT, 10X158
-
92151A92151-1263 BOLTBOLT
-
9216092160-1816 DAMPERDAMPER
-
92160A92160-1879 DAMPERDAMPER
-
9219192191-1158 TUBETUBE
-
9220092200-1339 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
