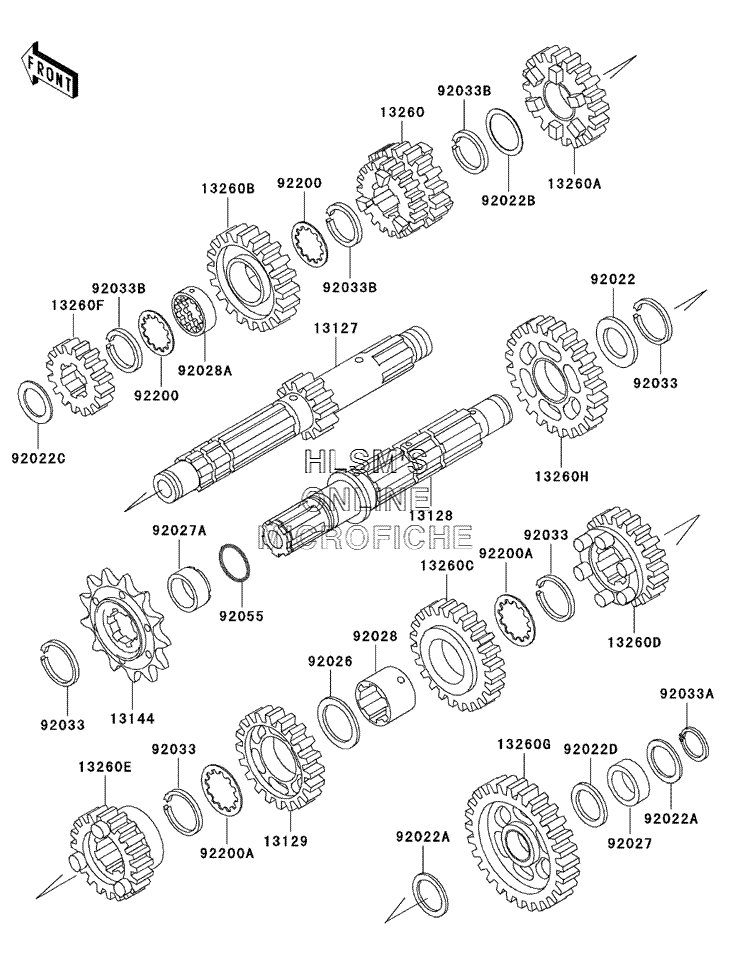

TRANSMISSION для Kawasaki Super Sherpa - 2000 года выпуска
-
№АртикулНазвание
-
1312713127-1258 SHAFT, TRANSMISSION INPUT (11 TEETH)SHAFT, TRANSMISSION INPUT (11 TEETH)
-
1312813128-1224 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1312913129-1650 GEAR, OUTPUT 3RD (27 TEETH)GEAR, OUTPUT 3RD (27 TEETH)
-
1314413144-1237 SPROCKET, OUTPUT (14 TEETH)SPROCKET, OUTPUT (14 TEETH)
-
1326013260-1656 GEAR, INPUT 3RD AND 4TH (18/27 TEETH)GEAR, INPUT 3RD AND 4TH (18/27 TEETH)
-
13260A13260-1657 GEAR, INPUT 5TH (26 TEETH)GEAR, INPUT 5TH (26 TEETH)
-
13260B13260-1658 GEAR, INPUT TOP (27 TEETH)GEAR, INPUT TOP (27 TEETH)
-
13260C13260-1660 GEAR, OUTPUT 4TH (31 TEETH)GEAR, OUTPUT 4TH (31 TEETH)
-
13260D13260-1661 GEAR, OUTPUT 5TH (25 TEETH)GEAR, OUTPUT 5TH (25 TEETH)
-
13260E13260-1662 GEAR, OUTPUT TOP (23 TEETH)GEAR, OUTPUT TOP (23 TEETH)
-
13260F13260-1672 GEAR, INPUT 2ND (16 TEETH)GEAR, INPUT 2ND (16 TEETH)
-
13260G13260-1673 GEAR, OUTPUT LOW (34 TEETH)GEAR, OUTPUT LOW (34 TEETH)
-
13260H13260-1674 GEAR, OUTPUT 2ND (34 TEETH)GEAR, OUTPUT 2ND (34 TEETH)
-
9202292022-159 WASHER, 25.3X30X0.5WASHER, 25.3X30X0.5
-
92022A92022-1614 WASHER, 17.3X25X0.5WASHER, 17.3X25X0.5
-
92022B92022-198 WASHER, 22.3X27X0.5WASHER, 22.3X27X0.5
-
92022C92022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
92022D92022-270 WASHER, 17.3X30X1.4WASHER, 17.3X30X1.4
-
9202692026-079 SPACER, 30X38X1.0SPACER, 30X38X1.0
-
9202792027-1315 COLLAR, 17X22X8.5COLLAR, 17X22X8.5
-
92027A92027-1800 COLLAR, 25X32X15.3COLLAR, 25X32X15.3
-
9202892028-1822 BUSHING, OUTPUT 3RD AND 4TH GEARBUSHING, OUTPUT 3RD AND 4TH GEAR
-
92028A92028-1823 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
9203392033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033A92033-032 RING, SNAPRING, SNAP
-
92033B92033-1293 RING, SNAPRING, SNAP
-
9205592055-1293 O-RING, 21.5MMO-RING, 21.5MM
-
9220092200-1370 WASHER, INPUTWASHER, INPUT
-
92200A92200-1371 WASHER, OUTPUTWASHER, OUTPUT
