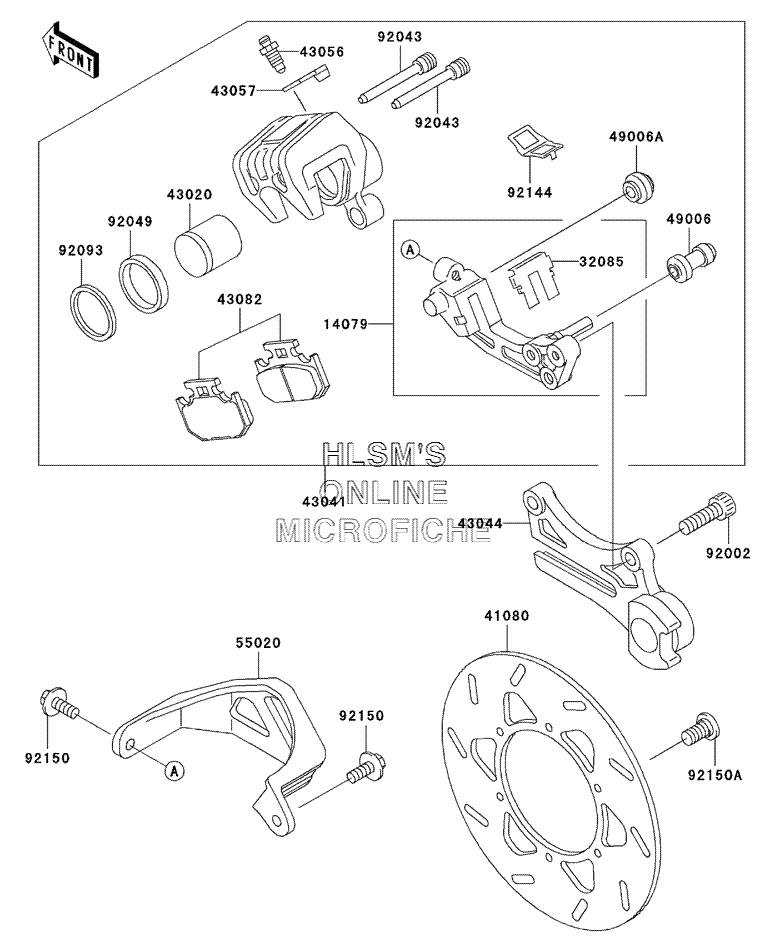

BRAKE - REAR для Kawasaki KDX 220R - 2003 года выпуска
-
№АртикулНазвание
-
1407914079-1070 HOLDER, ASSY, REAR CALIPERHOLDER, ASSY, REAR CALIPER
-
3208532085-1315 STOPPER, PADSTOPPER, PAD
-
4108041080-1384 DISC, REARDISC, REAR
-
4302043020-1099 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4304143041-1488 CALIPER, ASSY, REARCALIPER, ASSY, REAR
-
4304443044-1114 HOLDER, COMP, CALIPERHOLDER, COMP, CALIPER
-
4305643056-1055 BREATHERBREATHER
-
4305743057-1001 CAP, BREATHERCAP, BREATHER
-
4308243082-1131 PAD, ASSY, BRAKEPAD, ASSY, BRAKE
-
4900649006-1088 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1242 BOOT, CALIPERBOOT, CALIPER
-
5502055020-1488-RZ GUARD, REAR CALIPER (WHITE)GUARD, REAR CALIPER (WHITE)
-
9200292002-1442 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9204392043-1416 PIN, HANGERPIN, HANGER
-
9204992049-1331 SEAL, OIL, PISTONSEAL, OIL, PISTON
-
9209392093-1272 SEAL, PISTONSEAL, PISTON
-
9214492144-1364 SPRING, PADSPRING, PAD
-
9215092150-1506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92150A92150-1811 BOLT, DISC PLATE, 8X15BOLT, DISC PLATE, 8X15
