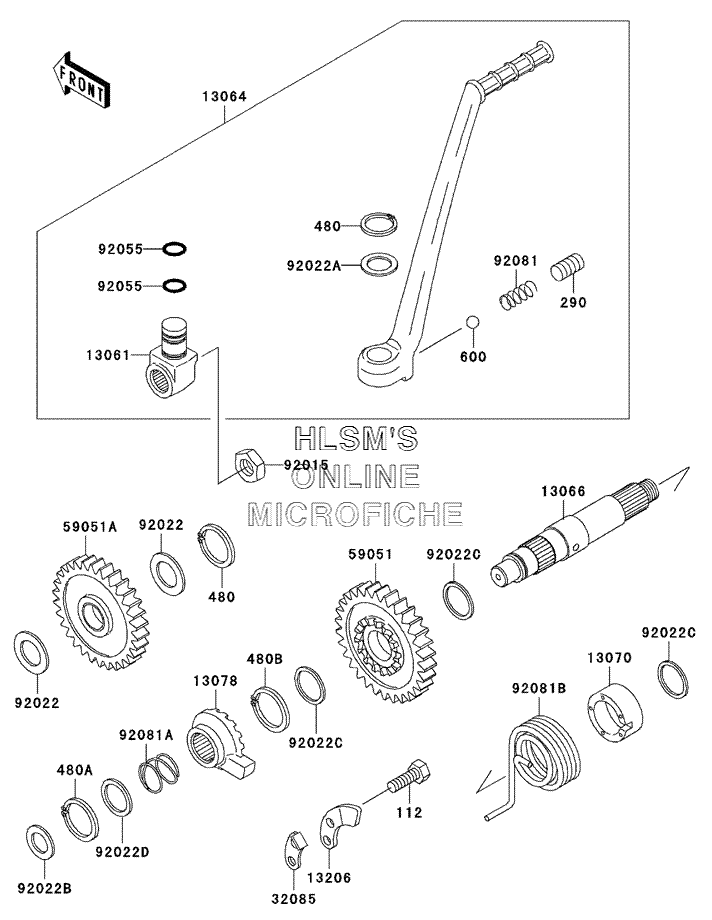

KICKSTARTER MECHANISM для Kawasaki KDX 220R - 2003 года выпуска
-
№АртикулНазвание
-
112112Y0618 BOLT, UPSETBOLT, UPSET
-
290290Q0808 SCREW, SET, SOCKET, 8X8SCREW, SET, SOCKET, 8X8
-
480480J1500 CIRCLIP, TYPE, C, 15MMCIRCLIP, TYPE, C, 15MM
-
480A480J1600 CIRCLIP, TYPE, C, 16MMCIRCLIP, TYPE, C, 16MM
-
480B480J1800 CIRCLIP, TYPE, C, 18MMCIRCLIP, TYPE, C, 18MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
1306113061-1487 BOSS, KICK PEDALBOSS, KICK PEDAL
-
1306413064-1174 LEVER, ASSY, KICK, PEDALLEVER, ASSY, KICK, PEDAL
-
1306613066-1071 SHAFT, KICKSHAFT, KICK
-
1307013070-1063 GUIDE, KICK SPRINGGUIDE, KICK SPRING
-
1307813078-1063 RATCHETRATCHET
-
1320613206-1061 GUIDE, KICKGUIDE, KICK
-
3208532085-1016 STOPPER, KICKSTARTERSTOPPER, KICKSTARTER
-
5905159051-1224 GEAR, SPUR, KICKSTARTERGEAR, SPUR, KICKSTARTER
-
59051A59051-1309 GEAR, SPUR, KICK (30 TEETH)GEAR, SPUR, KICK (30 TEETH)
-
9201592015-1958 NUT, 12MMNUT, 12MM
-
9202292022-1045 WASHER, 15.3X25X0.5WASHER, 15.3X25X0.5
-
92022A92022-1205 WASHER, 16.3X24X1WASHER, 16.3X24X1
-
92022B92022-269 WASHER, 12.3X20X0.5WASHER, 12.3X20X0.5
-
92022C92022-271 WASHER, 18.3X22X0.5WASHER, 18.3X22X0.5
-
92022D92022-315 WASHER, 16.8X22X0.5WASHER, 16.8X22X0.5
-
9205592055-061 O-RING, 10X1.5O-RING, 10X1.5
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-122 SPRING, RATCHETSPRING, RATCHET
-
92081B92081-1926 SPRING, KICKSTARTERSPRING, KICKSTARTER
