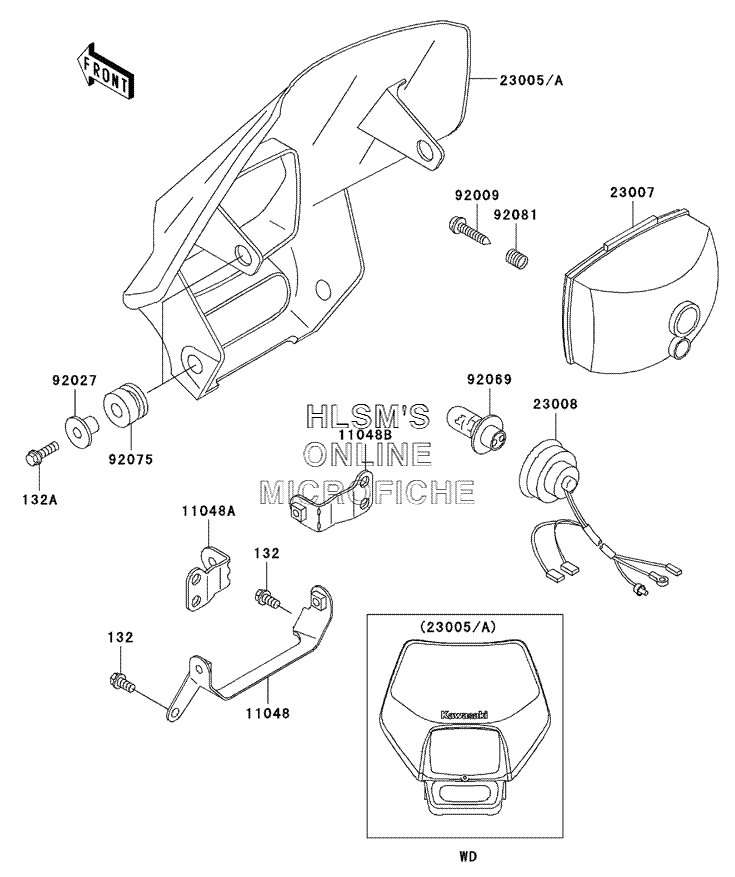

HEADLIGHT(S) для Kawasaki KDX 220R - 2003 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1104811048-1089 BRACKET, HEAD LAMP, LOWERBRACKET, HEAD LAMP, LOWER
-
11048A11048-1534 BRACKET, HEAD LAMP, UPPER (LEFT)BRACKET, HEAD LAMP, UPPER (LEFT)
-
11048B11048-1535 BRACKET, HEAD LAMP, UPPER (RIGHT)BRACKET, HEAD LAMP, UPPER (RIGHT)
-
23005A23005-5044-6W BODY, COMP, HEAD LAMP (L.GREEN)BODY, COMP, HEAD LAMP (L.GREEN)
-
2300723007-1246 LENS, COMP, HEAD LAMPLENS, COMP, HEAD LAMP
-
2300823008-1513 SOCKET, ASSY, HEAD LAMPSOCKET, ASSY, HEAD LAMP
-
9200992009-1695 SCREW, TAPPINGSCREW, TAPPING
-
9202792027-1183 COLLARCOLLAR
-
9206992069-1080 BULB, 12V 30/30WBULB, 12V 30/30W
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
9208192081-1519 SPRING, FOUCUS ADJUSTINGSPRING, FOUCUS ADJUSTING
