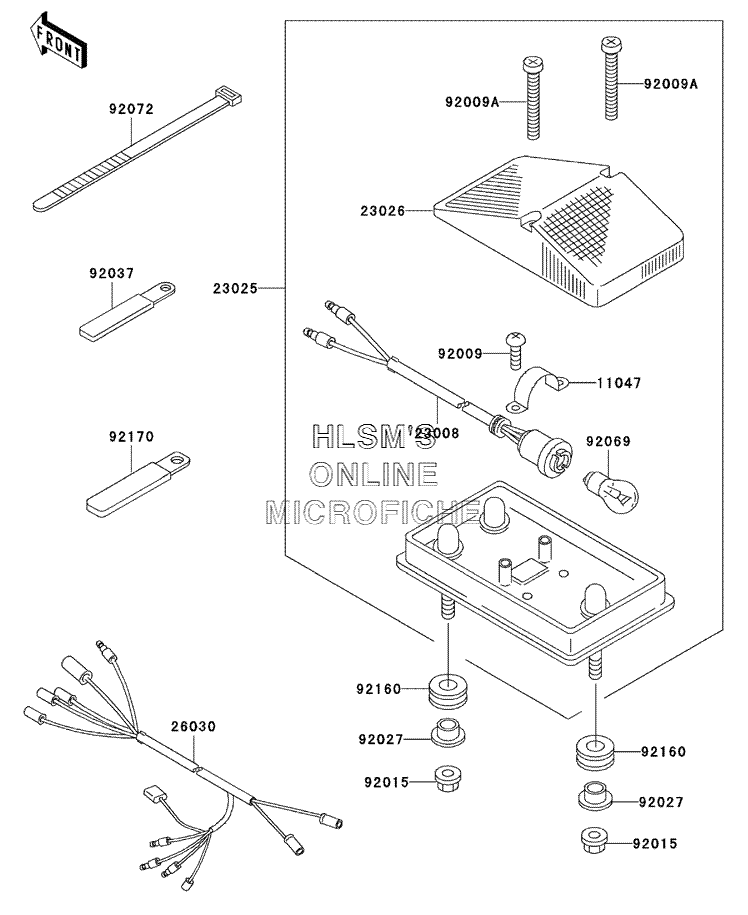

TAILLIGHT(S) для Kawasaki KDX 220R - 2003 года выпуска
-
№АртикулНазвание
-
1104711047-1238 BRACKET, TAIL LAMPBRACKET, TAIL LAMP
-
2300823008-1462 SOCKET, ASSY, TAIL LAMPSOCKET, ASSY, TAIL LAMP
-
2302523025-1215 LAMP, TAILLAMP, TAIL
-
2302623026-1131 LENS, TAIL LAMPLENS, TAIL LAMP
-
2603026030-1279 HARNESS, MAINHARNESS, MAIN
-
9200992009-1021 SCREW, TAPPING, 4X10SCREW, TAPPING, 4X10
-
92009A92009-1647 SCREW, TAPPING, 4X30SCREW, TAPPING, 4X30
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202792027-1920 COLLAR, L=14.1COLLAR, L=14.1
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
9206992069-1072 BULB, 12V 10WBULB, 12V 10W
-
9207292072-1195 BAND, L=202BAND, L=202
-
9216092160-1167 DAMPERDAMPER
-
9217092170-1114 CLAMP, L=150CLAMP, L=150
