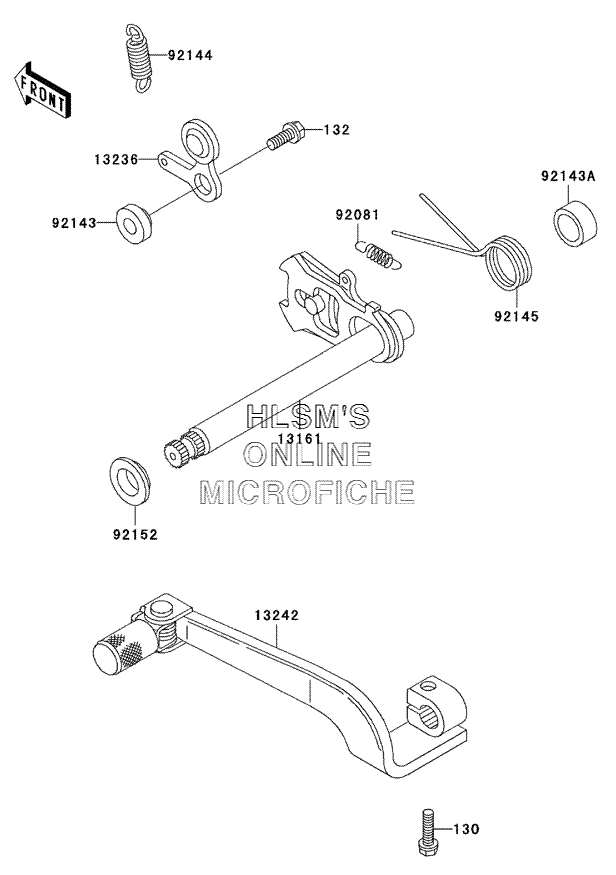

GEAR CHANGE MECHANISM для Kawasaki KDX 220R - 2003 года выпуска
-
№АртикулНазвание
-
130130Z0630 BOLT, FLANGEDBOLT, FLANGED
-
132132Y0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1316113161-1217 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1323613236-1189 LEVER, COMP, POSITIONLEVER, COMP, POSITION
-
1324213242-1319 LEVER, ASSY, CHANGE, PEDALLEVER, ASSY, CHANGE, PEDAL
-
9208192081-076 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9214392143-1055 COLLARCOLLAR
-
92143A92143-1148 COLLARCOLLAR
-
9214492144-1382 SPRINGSPRING
-
9214592145-1368 SPRINGSPRING
-
9215292152-1075 COLLARCOLLAR
