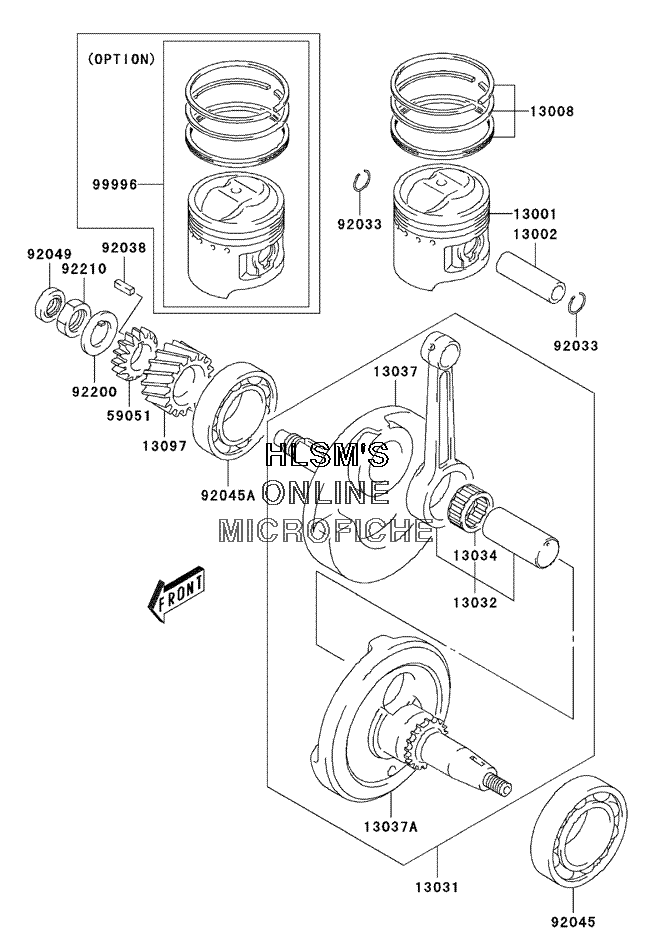

CRANKSHAFT - PISTON(S) для Kawasaki KLX 125L - 2006 года выпуска
-
№АртикулНазвание
-
1300113001-S003 PISTON-ENGINEPISTON-ENGINE
-
1300213002-S003 PIN-PISTONPIN-PISTON
-
1300813008-S003 RING-SET-PISTONRING-SET-PISTON
-
1303113031-S003 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1303213032-S003 ROD-CONNECTINGROD-CONNECTING
-
1303413034-S003 BEARING-BIG END, 28X36X15.8BEARING-BIG END, 28X36X15.8
-
1303713037-S005 CRANKSHAFT, RIGHTCRANKSHAFT, RIGHT
-
13037A13037-S006 CRANKSHAFT, LEFTCRANKSHAFT, LEFT
-
1309713097-S003 GEAR-PRIMARY SPURGEAR-PRIMARY SPUR
-
5905159051-S001 GEAR-SPUR, OIL PUMP DRIVEGEAR-SPUR, OIL PUMP DRIVE
-
9203392033-S022 RING-SNAPRING-SNAP
-
9203892038-S003 KEY, PRIMARY DRIVEKEY, PRIMARY DRIVE
-
9204592045-S010 BEARING-BALL, 35X72X17BEARING-BALL, 35X72X17
-
92045A92045-S026 BEARING-BALL, 28X68X18BEARING-BALL, 28X68X18
-
9204992049-S001 SEAL-OIL, 12X21X7SEAL-OIL, 12X21X7
-
9220092200-S058 WASHERWASHER
-
9221092210-S048 NUTNUT
-
9999699996-S007 KIT, PISTON O/S 0.50 (OPT.)KIT, PISTON O/S 0.50 (OPT.)
