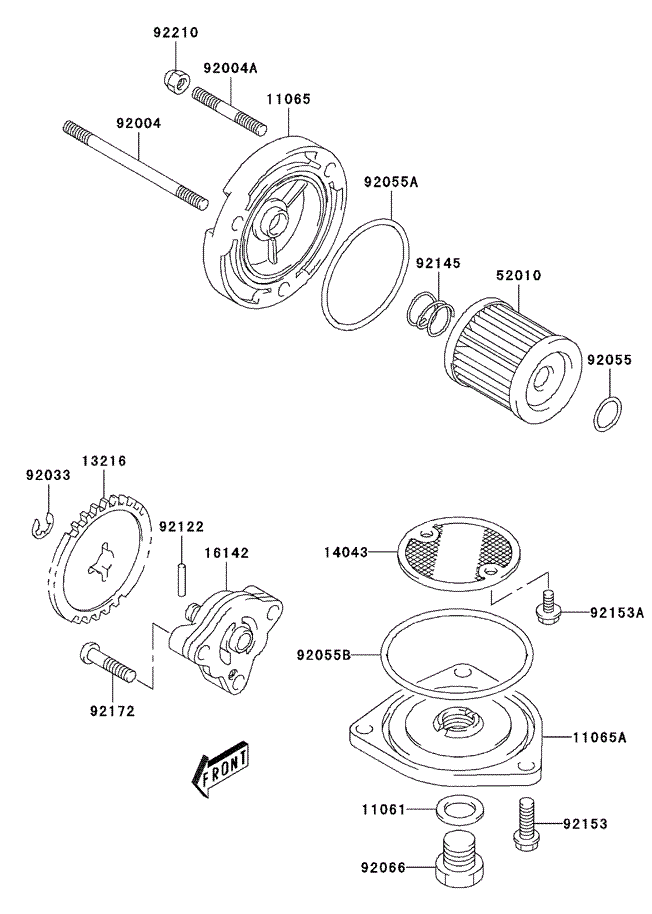

OIL PUMP для Kawasaki KLX 125L - 2006 года выпуска
-
№АртикулНазвание
-
1106111061-S006 GASKET, 13.8X18.8X0.4GASKET, 13.8X18.8X0.4
-
1106511065-S015 CAP, OIL FILTERCAP, OIL FILTER
-
11065A11065-S016 CAP, OIL STRAINERCAP, OIL STRAINER
-
1321613216-S004 GEAR-COMP, OIL PUMP DRIVENGEAR-COMP, OIL PUMP DRIVEN
-
1404314043-S002 FILTERFILTER
-
1614216142-S001 COVER-PUMPCOVER-PUMP
-
5201052010-S002 ELEMENT-OIL FILTER, ENGINE OILELEMENT-OIL FILTER, ENGINE OIL
-
9200492004-S006 STUD, L=90STUD, L=90
-
92004A92004-S007 STUDSTUD
-
9203392033-S018 RING-SNAPRING-SNAP
-
9205592055-S005 RING-O, D=1.9RING-O, D=1.9
-
92055A92055-S010 RING-O, D=2.4RING-O, D=2.4
-
92055B92055-S037 RING-O, D=2.4RING-O, D=2.4
-
9206692066-S002 PLUGPLUG
-
9212292122-S004 ROLLERROLLER
-
9214592145-S004 SPRING, OIL FILTER CAPSPRING, OIL FILTER CAP
-
9215392153-S002 BOLTBOLT
-
92153A92153-S132 BOLTBOLT
-
9217292172-S090 SCREWSCREW
-
9221092210-S045 NUTNUT
