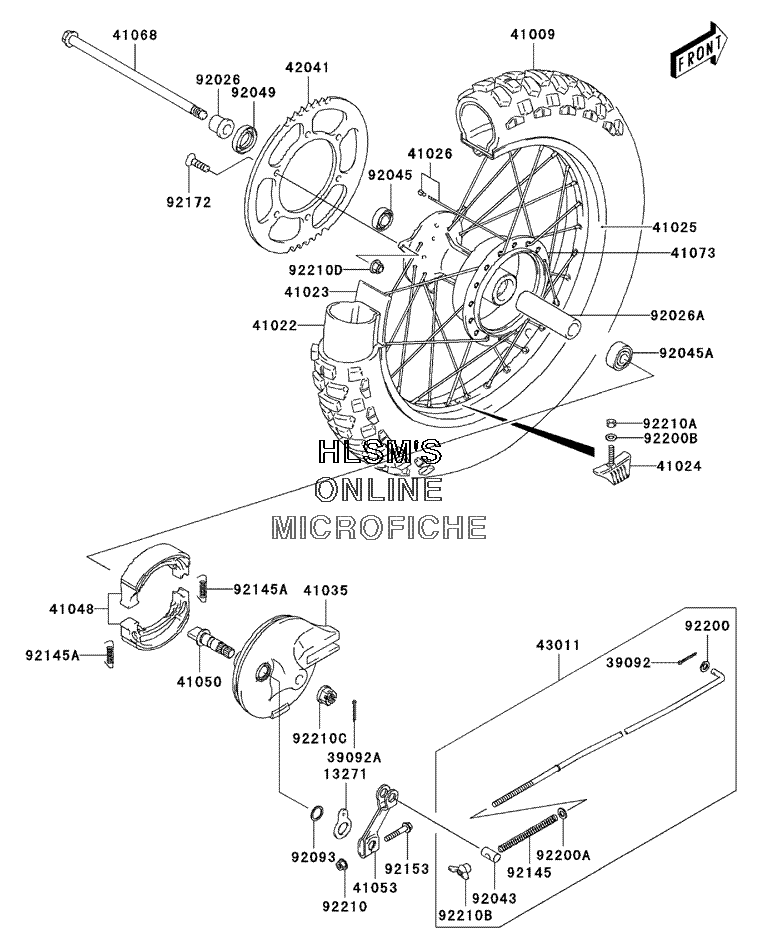

REAR HUB для Kawasaki KLX 125L - 2006 года выпуска
-
№АртикулНазвание
-
1327113271-S022 PLATE, BRAKE LINING INDICATORPLATE, BRAKE LINING INDICATOR
-
3909239092-S005 PIN-HAIR, COTTERPIN-HAIR, COTTER
-
39092A39092-S006 PIN-HAIR, REAR AXLE COTTERPIN-HAIR, REAR AXLE COTTER
-
4100941009-S008 TIRE, REARTIRE, REAR
-
4102241022-S004 TUBE-TIRETUBE-TIRE
-
4102341023-S004 BAND-RIMBAND-RIM
-
4102441024-S001 STOPPER-RIMSTOPPER-RIM
-
4102541025-S019 RIMRIM
-
4102641026-S013 SPOKE-ASSY.SPOKE-ASSY.
-
4103541035-S002 PANEL-ASSY.-BRAKEPANEL-ASSY.-BRAKE
-
4104841048-S003 SHOE-BRAKESHOE-BRAKE
-
4105041050-S003 CAM-BRAKECAM-BRAKE
-
4105341053-S003 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
4106841068-S004 AXLE, REARAXLE, REAR
-
4107341073-S016 WHEEL-ASSY., REARWHEEL-ASSY., REAR
-
4204142041-S003 SPROCKET-HUB (57 TEETH)SPROCKET-HUB (57 TEETH)
-
4301143011-S002 ROD-BRAKEROD-BRAKE
-
9202692026-S055 SPACER, REAR AXLESPACER, REAR AXLE
-
92026A92026-S164 SPACER, REAR HUB BEARINGSPACER, REAR HUB BEARING
-
9204392043-S023 PIN, BRAKE ROD ADJUSTERPIN, BRAKE ROD ADJUSTER
-
9204592045-S029 BEARING-BALL, REAR HUB (LEFT)BEARING-BALL, REAR HUB (LEFT)
-
92045A92045-S030 BEARING-BALL, REAR HUB (RIGHT)BEARING-BALL, REAR HUB (RIGHT)
-
9204992049-S025 SEAL-OIL, REAR HUBSEAL-OIL, REAR HUB
-
9209392093-S008 SEALSEAL
-
9214592145-S046 SPRING, REAR BRAKE RODSPRING, REAR BRAKE ROD
-
92145A92145-S047 SPRING, REAR BRAKE SHOESPRING, REAR BRAKE SHOE
-
9215392153-S130 BOLTBOLT
-
9217292172-S111 SCREW, SPROCKETSCREW, SPROCKET
-
9220092200-S002 WASHERWASHER
-
92200A92200-S003 WASHERWASHER
-
92200B92200-S028 WASHERWASHER
-
9221092210-S004 NUTNUT
-
92210A92210-S051 NUTNUT
-
92210B92210-S055 NUTNUT
-
92210C92210-S056 NUTNUT
-
92210D92210-S094 NUTNUT
