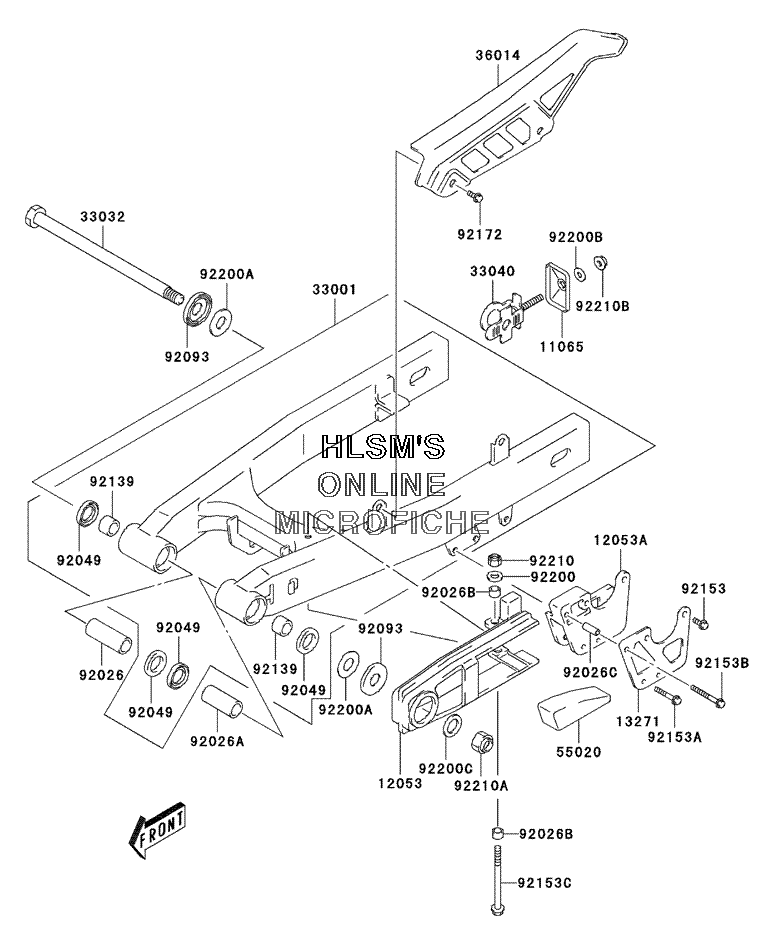

SUSPENSION - SWINGARM для Kawasaki KLX 125L - 2006 года выпуска
-
№АртикулНазвание
-
1106511065-S018 CAP, CHAIN ADJUSTER GUIDECAP, CHAIN ADJUSTER GUIDE
-
1205312053-S008 GUIDE-CHAINGUIDE-CHAIN
-
12053A12053-S011 GUIDE-CHAIN, CHAINGUIDE-CHAIN, CHAIN
-
1327113271-S023 PLATE, CHAIN, GUIDEPLATE, CHAIN, GUIDE
-
3300133001-S004-530 ARM-COMP-SWING (B.SILVER)ARM-COMP-SWING (B.SILVER)
-
3303233032-S001 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-S001 ADJUSTER-CHAINADJUSTER-CHAIN
-
3601436014-S001 CASE-CHAINCASE-CHAIN
-
5502055020-S007 GUARD, CHAIN, GUIDEGUARD, CHAIN, GUIDE
-
9202692026-S042 SPACER, SWING ARM PIVOT, RIGHTSPACER, SWING ARM PIVOT, RIGHT
-
92026A92026-S043 SPACER, SWING ARM PIVOT, LEFTSPACER, SWING ARM PIVOT, LEFT
-
92026B92026-S052 SPACER, CHAINSPACER, CHAIN
-
92026C92026-S054 SPACER, CHAIN GUIDESPACER, CHAIN GUIDE
-
9204992049-S022 SEAL-OIL, SWINGARMSEAL-OIL, SWINGARM
-
9209392093-S012 SEAL, REAR SWINGARMSEAL, REAR SWINGARM
-
9213992139-S008 BUSHING, REAR SWINGARM PIVOTBUSHING, REAR SWINGARM PIVOT
-
9215392153-S177 BOLTBOLT
-
92153A92153-S178 BOLTBOLT
-
92153B92153-S179 BOLTBOLT
-
92153C92153-S243 BOLTBOLT
-
9217292172-S099 SCREW, 6X10SCREW, 6X10
-
9220092200-S003 WASHERWASHER
-
92200A92200-S068 WASHERWASHER
-
92200B92200-S070 WASHER, 12.5X26X2.3WASHER, 12.5X26X2.3
-
92200C92200-S072 WASHER, 14.5X24X2.3WASHER, 14.5X24X2.3
-
9221092210-S024 NUTNUT
-
92210A92210-S057 NUTNUT
-
92210B92210-S094 NUTNUT
