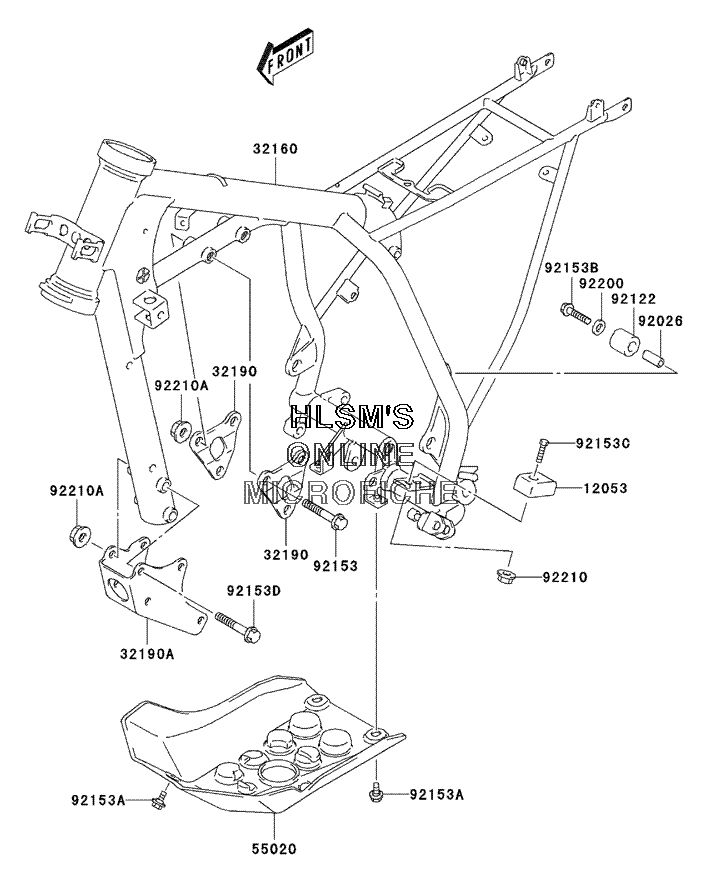

FRAME для Kawasaki KLX 125L - 2006 года выпуска
-
№АртикулНазвание
-
1205312053-S012 GUIDE-CHAINGUIDE-CHAIN
-
3216032160-S003-909 FRAME-COMP (P.SILVER)FRAME-COMP (P.SILVER)
-
3219032190-S003 BRACKET-ENGINEBRACKET-ENGINE
-
32190A32190-S005-909 BRACKET-ENGINE (P.SILVER)BRACKET-ENGINE (P.SILVER)
-
5502055020-S004 GUARD, ENGINEGUARD, ENGINE
-
9202692026-S053 SPACERSPACER
-
9212292122-S006 ROLLER, CHAIN CONTROL, UPPERROLLER, CHAIN CONTROL, UPPER
-
9215392153-S151 BOLTBOLT
-
92153A92153-S161 BOLTBOLT
-
92153B92153-S183 BOLTBOLT
-
92153C92153-S184 BOLTBOLT
-
92153D92153-S188 BOLTBOLT
-
9220092200-S125 WASHERWASHER
-
9221092210-S054 NUTNUT
-
92210A92210-S094 NUTNUT
