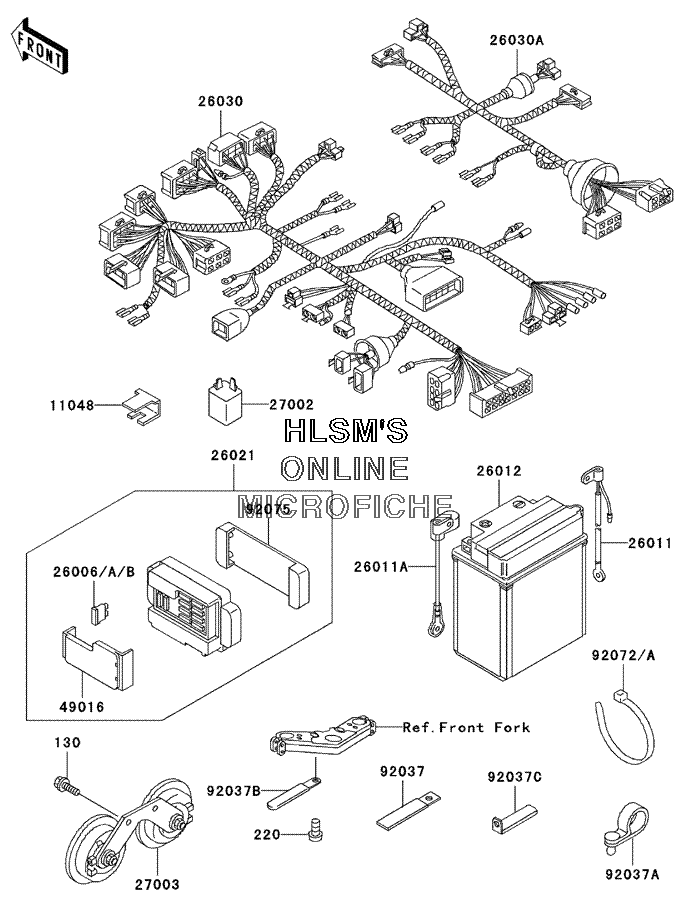

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Concours - 2001 года выпуска
-
№АртикулНазвание
-
130130C0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
220220C0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
1104811048-1680 BRACKET, FUSE LOCKBRACKET, FUSE LOCK
-
2600626006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1068 FUSE, 10A, RFUSE, 10A, R
-
26006B26006-1069 FUSE, 15A, BFUSE, 15A, B
-
2601126011-1323 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
26011A26011-1358 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
2601226012-1340 BATTERY, YB18L, A, TP, 12V 18AHBATTERY, YB18L, A, TP, 12V 18AH
-
2602126021-1091 JUNCTION BOXJUNCTION BOX
-
2603026030-1252 HARNESS, MAINHARNESS, MAIN
-
26030A26030-1285 HARNESS, COWLINGHARNESS, COWLING
-
2700227002-1060 RELAY, ASSY., TURN SIGNALRELAY, ASSY., TURN SIGNAL
-
2700327003-1372 HORN, DOUBLEHORN, DOUBLE
-
4901649016-1170 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037B92037-1539 CLAMP, L=45CLAMP, L=45
-
92037C92037-1564 CLAMP, HARNESSCLAMP, HARNESS
-
9207292072-1195 BAND, L=202BAND, L=202
-
92072A92072-1197 BAND, L=365BAND, L=365
-
9207592075-1688 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
