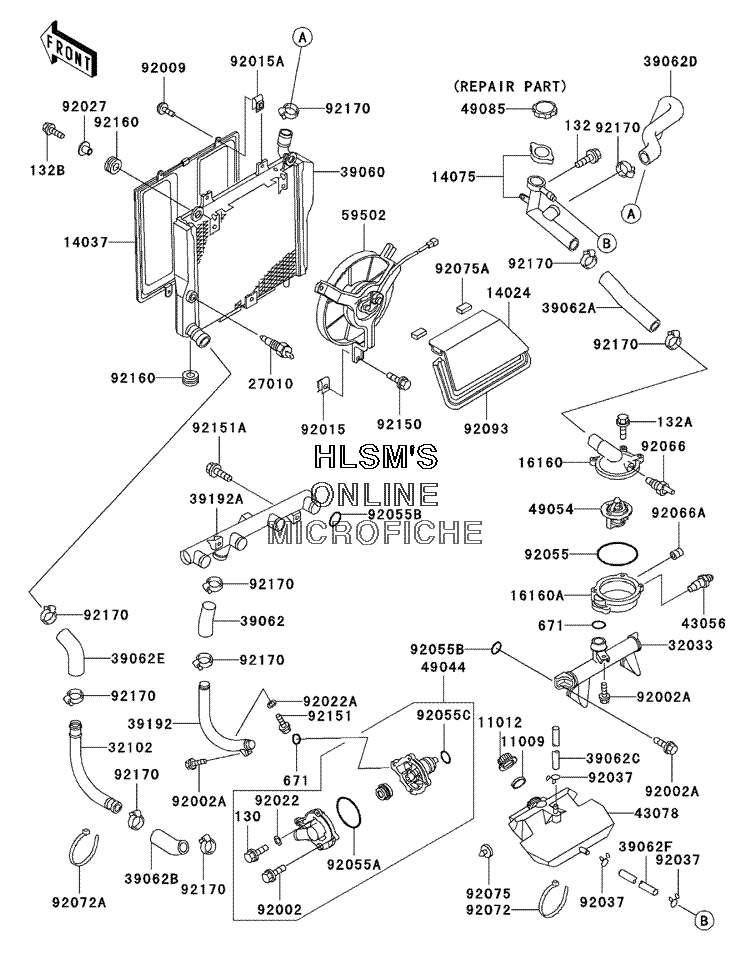

RADIATOR для Kawasaki Concours - 2001 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1402414024-1267 COVERCOVER
-
1403714037-1070 SCREEN, RADIATORSCREEN, RADIATOR
-
1407514075-1055 CAP, ASSY., RADIATORCAP, ASSY., RADIATOR
-
1616016160-1067 BODY, THERMOSTAT, UPPERBODY, THERMOSTAT, UPPER
-
16160A16160-1068 BODY, THERMOSTAT, LOWERBODY, THERMOSTAT, LOWER
-
2701027010-1202 SWITCH, FANSWITCH, FAN
-
3203332033-1719 PIPEPIPE
-
3210232102-1023 PIPEPIPE
-
3906039060-1076 RADIATORRADIATOR
-
3906239062-1072 HOSE, COOLINGHOSE, COOLING
-
39062A39062-1091 HOSE, COOLINGHOSE, COOLING
-
39062B39062-1092 HOSE, COOLINGHOSE, COOLING
-
39062C39062-1144 HOSE, COOLING, 5.5X10.5X1500HOSE, COOLING, 5.5X10.5X1500
-
39062D39062-1164 HOSE, COOLINGHOSE, COOLING
-
39062E39062-1165 HOSE, COOLINGHOSE, COOLING
-
39062F39062-1226 HOSE, COOLINGHOSE, COOLING
-
3919239192-1028 PIPE, WATERPIPE, WATER
-
39192A39192-1029 PIPE, WATERPIPE, WATER
-
4305643056-003 BREATHERBREATHER
-
4307843078-1074 RESERVOIRRESERVOIR
-
4904449044-1083 PUMP, WATERPUMP, WATER
-
4905449054-1051 THERMOSTATTHERMOSTAT
-
4908549085-1067 CAP, ASSY., PRESSURECAP, ASSY., PRESSURE
-
5950259502-1067 FAN, ASSY.FAN, ASSY.
-
9200292002-1392 BOLT, 6X22BOLT, 6X22
-
92002A92002-1569 BOLT, 6X12BOLT, 6X12
-
9200992009-1261 SCREW, TAPPING, 6MMSCREW, TAPPING, 6MM
-
9201592015-1487 NUTNUT
-
92015A92015-1758 NUT, 6MMNUT, 6MM
-
9202292022-1976 WASHER, 6MMWASHER, 6MM
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202792027-1134 COLLAR, L=14COLLAR, L=14
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-112 O-RING, 53.5X2.6O-RING, 53.5X2.6
-
92055A92055-1271 O-RING, WATER PUMPO-RING, WATER PUMP
-
92055B92055-1282 O-RINGO-RING
-
92055C92055-1424 O-RING, 33.2X2.4O-RING, 33.2X2.4
-
9206692066-1183 PLUG, SENSOR WATERPLUG, SENSOR WATER
-
130130C0610 BOLT, FLANGED, 6X10 (BLACK)BOLT, FLANGED, 6X10 (BLACK)
-
132132J0608 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0825 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
671671B2525 O-RING, 25MMO-RING, 25MM
-
92066A92066-1201 PLUG, PT1/8X7PLUG, PT1/8X7
-
9207292072-1195 BAND, L=202BAND, L=202
-
92072A92072-1197 BAND, L=365BAND, L=365
-
9207592075-078 DAMPER, RUBBERDAMPER, RUBBER
-
92075A92075-1446 DAMPERDAMPER
-
9209392093-1214 SEALSEAL
-
9215092150-1187 BOLT, 6X16BOLT, 6X16
-
9215192151-1344 BOLT, 6X10BOLT, 6X10
-
92151A92151-1997 BOLT, 6X12BOLT, 6X12
-
9216092160-1007 DAMPERDAMPER
-
9217092170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
