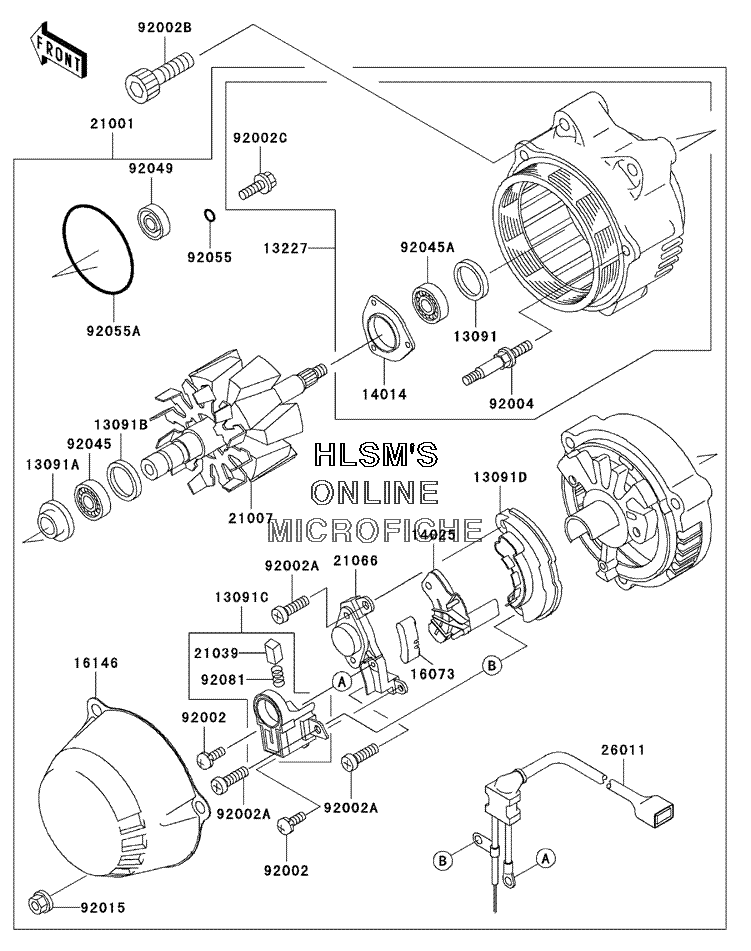

GENERATOR для Kawasaki Concours - 2001 года выпуска
-
№АртикулНазвание
-
1309113091-1326 HOLDER, BEARINGHOLDER, BEARING
-
13091A13091-1327 HOLDER, COVERHOLDER, COVER
-
13091B13091-1328 HOLDER, BEARINGHOLDER, BEARING
-
13091C13091-1465 HOLDER, BRUSHHOLDER, BRUSH
-
13091D13091-1466 RECTIFIERRECTIFIER
-
1322713227-1079 HOUSING, GENERATORHOUSING, GENERATOR
-
1401414014-1065 PLATE, POSITIONPLATE, POSITION
-
1402514025-1942 COVER, RECTIFIERCOVER, RECTIFIER
-
1607316073-1062 INSULATORINSULATOR
-
1614616146-1074 COVER, ASSY., GENERATORCOVER, ASSY., GENERATOR
-
2100121001-1104 GENERATORGENERATOR
-
2100721007-1196 ROTOR, GENERATORROTOR, GENERATOR
-
2103921039-1052 BRUSH, CARBONBRUSH, CARBON
-
2106621066-1076 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
2601126011-1432 WIRE, LEAD, GENERATORWIRE, LEAD, GENERATOR
-
9200292002-1379 SCREW, 4X8SCREW, 4X8
-
92002A92002-1380 SCREW, 5X17.5SCREW, 5X17.5
-
92002B92002-1716 BOLT, SOCKET, 8X45BOLT, SOCKET, 8X45
-
92002C92002-1856 SCREWSCREW
-
9200492004-1196 STUDSTUD
-
9201592015-1800 NUTNUT
-
9204592045-1133 BEARING, BALL, #6002NCBEARING, BALL, #6002NC
-
92045A92045-1350 BEARING, BALL, #6002BEARING, BALL, #6002
-
9204992049-1200 SEAL, OILSEAL, OIL
-
9205592055-1264 O-RING, 3.5MMO-RING, 3.5MM
-
92055A92055-1366 O-RING, 70.6X2.4O-RING, 70.6X2.4
-
9208192081-1759 SPRING, BRUSHSPRING, BRUSH
