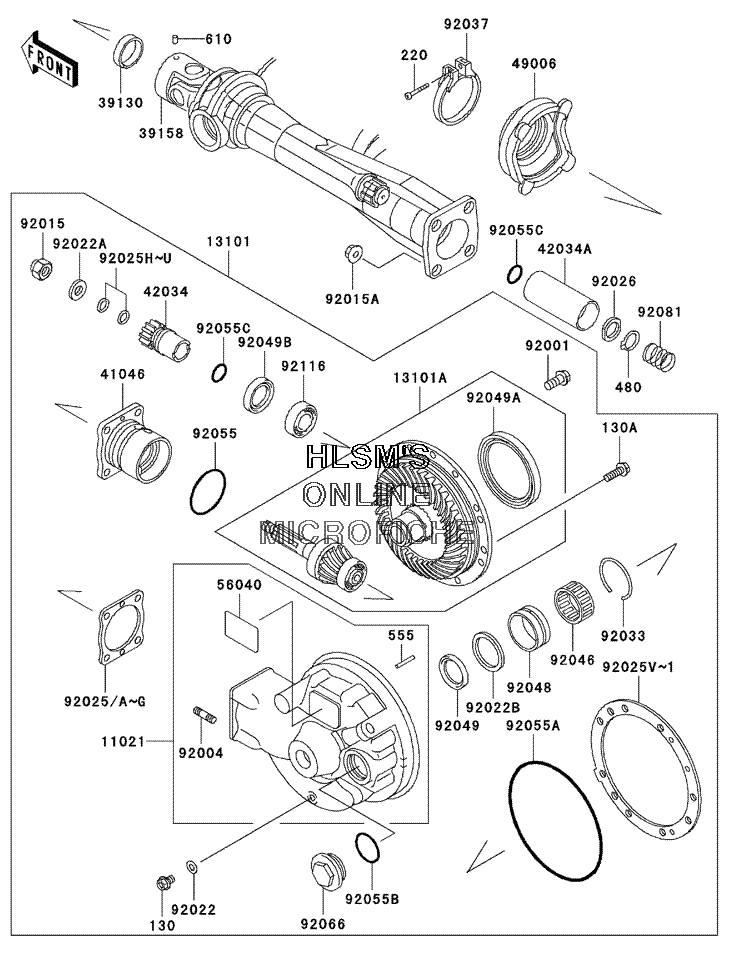

DRIVE SHAFT/FINAL GEAR для Kawasaki Concours - 2001 года выпуска
-
№АртикулНазвание
-
1102111021-1063-GD CASE, ASSY., FINAL BEVEL (G.GRAY)CASE, ASSY., FINAL BEVEL (G.GRAY)
-
1310113101-1099-GD GEAR, ASSY., FINAL BEVEL (G.GRAY)GEAR, ASSY., FINAL BEVEL (G.GRAY)
-
13101A13101-5063 GEAR, ASSY., FINAL BEVELGEAR, ASSY., FINAL BEVEL
-
3913039130-1002 SPRING, LEAFSPRING, LEAF
-
3915839158-1059 SHAFT, ASSY., DRIVESHAFT, ASSY., DRIVE
-
4104641046-1069 HOUSING, BEARING (BLACK)HOUSING, BEARING (BLACK)
-
4203442034-1079 COUPLINGCOUPLING
-
42034A42034-1178 COUPLING, PROPELLER SHAFT, OUTERCOUPLING, PROPELLER SHAFT, OUTER
-
4900649006-1188 BOOTBOOT
-
5604056040-1047 LABEL, WARNING, OILLABEL, WARNING, OIL
-
9200192001-1778 BOLT, 10X23BOLT, 10X23
-
9200492004-1045 STUD, 10X30 (BLACK)STUD, 10X30 (BLACK)
-
9201592015-1059 NUT, 16MMNUT, 16MM
-
92015A92015-1649 NUT, 10MMNUT, 10MM
-
9202292022-1086 WASHER, 8.2X16X1WASHER, 8.2X16X1
-
92022A92022-1105 WASHER, 16X32X3.2WASHER, 16X32X3.2
-
92022B92022-1294 WASHER, 39X49.5X1WASHER, 39X49.5X1
-
9202592025-1052 SHIM, T=0.15SHIM, T=0.15
-
92025A92025-1053 SHIM, T=0.50SHIM, T=0.50
-
92025B92025-1054 SHIM, T=0.60SHIM, T=0.60
-
92025C92025-1055 SHIM, T=0.70SHIM, T=0.70
-
92025D92025-1056 SHIM, T=0.80SHIM, T=0.80
-
92025E92025-1057 SHIM, T=0.90SHIM, T=0.90
-
92025F92025-1058 SHIM, T=1.00SHIM, T=1.00
-
92025G92025-1059 SHIM, T=1.20SHIM, T=1.20
-
92025H92025-1214 SHIM, T=1.30SHIM, T=1.30
-
92025I92025-1215 SHIM, T=1.32SHIM, T=1.32
-
92025J92025-1216 SHIM, T=1.34SHIM, T=1.34
-
92025K92025-1217 SHIM, T=1.36SHIM, T=1.36
-
92025L92025-1218 SHIM, T=1.38SHIM, T=1.38
-
92025M92025-1219 SHIM, T=0.10SHIM, T=0.10
-
92025N92025-1220 SHIM, T=0.20SHIM, T=0.20
-
92025O92025-1221 SHIM, T=0.30SHIM, T=0.30
-
92025P92025-1222 SHIM, T=0.50SHIM, T=0.50
-
92025Q92025-1223 SHIM, T=0.60SHIM, T=0.60
-
92025R92025-1224 SHIM, T=0.70SHIM, T=0.70
-
92025S92025-1225 SHIM, T=0.80SHIM, T=0.80
-
92025T92025-1226 SHIM, T=0.90SHIM, T=0.90
-
92025U92025-1227 SHIM, T=1.00SHIM, T=1.00
-
92025V92025-1625 SHIM, T=0.10SHIM, T=0.10
-
130130X0812 BOLT, FLANGEDBOLT, FLANGED
-
130A130Y0825 BOLT, FLANGEDBOLT, FLANGED
-
220220B0430 SCREW, PAN, CROSSCREW, PAN, CROS
-
480480J2600 CIRCLIP, TYPE, C, 26MMCIRCLIP, TYPE, C, 26MM
-
555555A0428 PIN, SPRINGPIN, SPRING
-
610610A0406 ROLLER, 4X6ROLLER, 4X6
-
92025092025-1630 SHIM, T=0.90SHIM, T=0.90
-
92025192025-1631 SHIM, T=1.20SHIM, T=1.20
-
92025W92025-1626 SHIM, T=0.15SHIM, T=0.15
-
92025X92025-1627 SHIM, T=0.20SHIM, T=0.20
-
92025Y92025-1628 SHIM, T=0.30SHIM, T=0.30
-
92025Z92025-1629 SHIM, T=0.60SHIM, T=0.60
-
9202692026-1085 SPACER, PROPELLER SHAFTSPACER, PROPELLER SHAFT
-
9203392033-1074 RING, SNAP, 52MMRING, SNAP, 52MM
-
9203792037-1112 CLAMP, BOOT FITTINGCLAMP, BOOT FITTING
-
9204692046-1057 BEARING, NEEDLE, KTV384620E01 C3BEARING, NEEDLE, KTV384620E01 C3
-
9204892048-1019 RACE, ORT465021E01RACE, ORT465021E01
-
9204992049-1025 SEAL, OIL, S, 35477HSSEAL, OIL, S, 35477HS
-
92049A92049-1026 SEAL, OIL, S, 901159HSSEAL, OIL, S, 901159HS
-
92049B92049-1033 SEAL, OIL, SC32487SEAL, OIL, SC32487
-
9205592055-1038 O-RING, ID=57.6O-RING, ID=57.6
-
92055A92055-1165 O-RING, 154MMO-RING, 154MM
-
92055B92055-1281 O-RING, 35.8MMO-RING, 35.8MM
-
92055C92055-1646 O-RINGO-RING
-
9206692066-1006-GD PLUG, 36X7.5 (G.GRAY)PLUG, 36X7.5 (G.GRAY)
-
9208192081-1183 SPRING, PROPELLER SHAFTSPRING, PROPELLER SHAFT
-
9211692116-1004 BEARING, ROLLER, 4T32005XBEARING, ROLLER, 4T32005X
