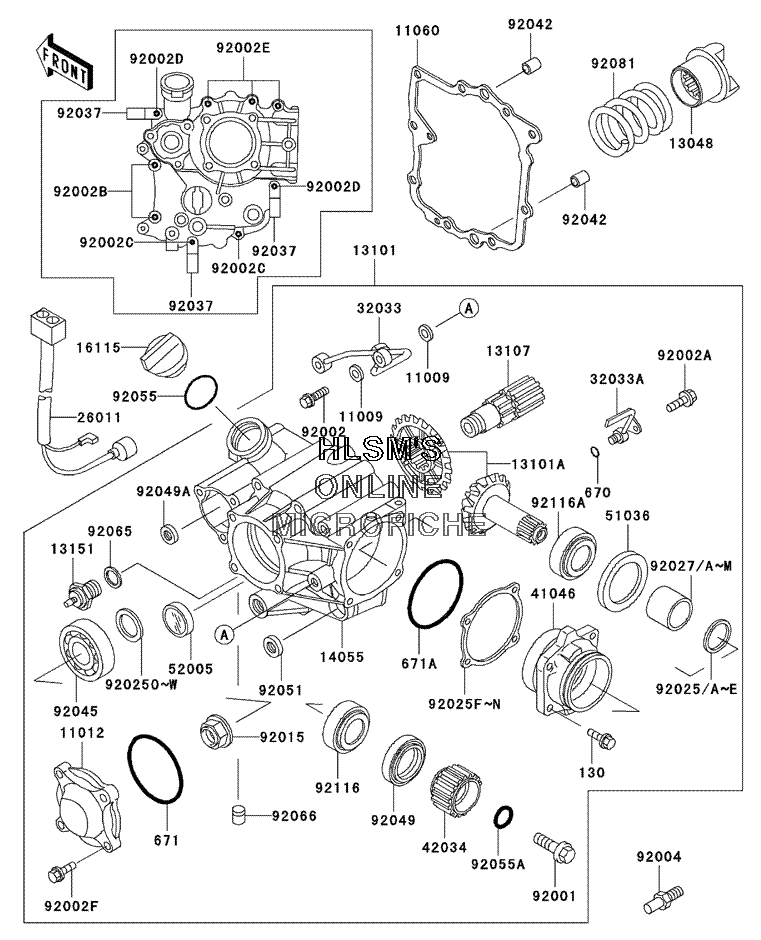

FRONT BEVEL GEAR для Kawasaki Concours - 2001 года выпуска
-
№АртикулНазвание
-
1100911009-1344 GASKET, 8.2X14X1.0GASKET, 8.2X14X1.0
-
1101211012-1884 CAP, BEARINGCAP, BEARING
-
1106011060-1404 GASKET, BEVEL GEAR CASE, FRONTGASKET, BEVEL GEAR CASE, FRONT
-
1304813048-1069 CAM, DAMPERCAM, DAMPER
-
1310113101-1218 GEAR, ASSY., FRONT BEVELGEAR, ASSY., FRONT BEVEL
-
13101A13101-5062 GEAR, ASSY., FRONT BEVELGEAR, ASSY., FRONT BEVEL
-
1310713107-1190 SHAFT, BEVEL GEAR, FRONTSHAFT, BEVEL GEAR, FRONT
-
1315113151-1080 SWITCH, COMP, NEUTRALSWITCH, COMP, NEUTRAL
-
1405514055-1065 CASE, GEAR, BEVEL, FRONTCASE, GEAR, BEVEL, FRONT
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
2601126011-1351 WIRE, LEADWIRE, LEAD
-
3203332033-1706 PIPE, OILPIPE, OIL
-
32033A32033-1707 PIPE, OILPIPE, OIL
-
4104641046-1067 HOUSING, BEARINGHOUSING, BEARING
-
4203442034-1091 COUPLING, FRONT DRIVENCOUPLING, FRONT DRIVEN
-
5103651036-1002 CUPCUP
-
5200552005-1057 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9200192001-1169 BOLT, FLANGED, 12X42BOLT, FLANGED, 12X42
-
9200292002-1429 BOLT, 8X20BOLT, 8X20
-
92002A92002-1449 BOLT, 6X10BOLT, 6X10
-
92002B92002-1582 BOLT, 6X25BOLT, 6X25
-
92002C92002-1583 BOLT, 6X50BOLT, 6X50
-
92002D92002-1584 BOLT, 6X60BOLT, 6X60
-
92002E92002-1585 BOLT, 6X10.5BOLT, 6X10.5
-
92002F92002-1612 BOLT, 6X25BOLT, 6X25
-
9200492004-1109 STUDSTUD
-
9201592015-1543 NUTNUT
-
9202592025-1072 SHIM, 25.2X29.8X1.70SHIM, 25.2X29.8X1.70
-
92025A92025-1073 SHIM, 25.2X29.8X1.72SHIM, 25.2X29.8X1.72
-
92025B92025-1074 SHIM, 25.2X29.8X1.74SHIM, 25.2X29.8X1.74
-
92025C92025-1075 SHIM, 25.2X29.8X1.76SHIM, 25.2X29.8X1.76
-
92025D92025-1076 SHIM, 25.2X29.8X1.78SHIM, 25.2X29.8X1.78
-
92025E92025-1077 SHIM, 25.2X29.8X1.80SHIM, 25.2X29.8X1.80
-
92025F92025-1606 SHIM, T=0.10SHIM, T=0.10
-
92025G92025-1607 SHIM, T=0.15SHIM, T=0.15
-
92025H92025-1608 SHIM, T=0.50SHIM, T=0.50
-
92025I92025-1609 SHIM, T=0.60SHIM, T=0.60
-
92025J92025-1610 SHIM, T=0.70SHIM, T=0.70
-
92025K92025-1611 SHIM, T=0.80SHIM, T=0.80
-
92025L92025-1612 SHIM, T=0.90SHIM, T=0.90
-
130130S0625 BOLT, FLANGED, 6X25 (BLACK)BOLT, FLANGED, 6X25 (BLACK)
-
670670B1506 O-RING, 6MMO-RING, 6MM
-
92025M92025-1613 SHIM, T=1.00SHIM, T=1.00
-
92025N92025-1614 SHIM, T=1.20SHIM, T=1.20
-
92025O92025-1688 SHIM, 25.3X36X0.15SHIM, 25.3X36X0.15
-
92025P92025-1689 SHIM, 25.3X36X0.50SHIM, 25.3X36X0.50
-
92025Q92025-1690 SHIM, 25.3X36X0.60SHIM, 25.3X36X0.60
-
92025R92025-1691 SHIM, 25.3X36X0.70SHIM, 25.3X36X0.70
-
92025S92025-1692 SHIM, 25.3X36X0.80SHIM, 25.3X36X0.80
-
92025T92025-1693 SHIM, 25.3X36X0.90SHIM, 25.3X36X0.90
-
92025U92025-1694 SHIM, 25.3X36X1.00SHIM, 25.3X36X1.00
-
92025V92025-1695 SHIM, 25.3X36X1.10SHIM, 25.3X36X1.10
-
92025W92025-1696 SHIM, 25.3X36X1.20SHIM, 25.3X36X1.20
-
9202792027-1152 COLLAR, 25.2X29.8X22.8COLLAR, 25.2X29.8X22.8
-
92027A92027-1153 COLLAR, 25.2X29.8X22.9COLLAR, 25.2X29.8X22.9
-
92027B92027-1154 COLLAR, 25.2X29.8X23COLLAR, 25.2X29.8X23
-
92027C92027-1155 COLLAR, 25.2X29.8X23.1COLLAR, 25.2X29.8X23.1
-
92027D92027-1156 COLLAR, 25.2X29.8X23.2COLLAR, 25.2X29.8X23.2
-
92027E92027-1157 COLLAR, 25.2X29.8X23.3COLLAR, 25.2X29.8X23.3
-
92027F92027-1158 COLLAR, 25.2X29.8X23.4COLLAR, 25.2X29.8X23.4
-
92027G92027-1159 COLLAR, 25.2X29.8X23.5COLLAR, 25.2X29.8X23.5
-
92027H92027-1160 COLLAR, 25.2X29.8X23.6COLLAR, 25.2X29.8X23.6
-
92027I92027-1161 COLLAR, 25.2X29.8X23.7COLLAR, 25.2X29.8X23.7
-
92027J92027-1162 COLLAR, 25.2X29.8X23.8COLLAR, 25.2X29.8X23.8
-
92027K92027-1163 COLLAR, 25.2X29.8X23.9COLLAR, 25.2X29.8X23.9
-
92027L92027-1164 COLLAR, 25.2X29.8X24COLLAR, 25.2X29.8X24
-
92027M92027-1165 COLLAR, 25.2X29.8X24.1COLLAR, 25.2X29.8X24.1
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204592045-1160 BEARING, BALLBEARING, BALL
-
9204992049-1038 SEAL, OIL, TC35527SEAL, OIL, TC35527
-
92049A92049-1566 SEAL, OILSEAL, OIL
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
92055A92055-1044 O-RING, ID=18.64O-RING, ID=18.64
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
9208192081-1859 SPRING, CAM DAMPERSPRING, CAM DAMPER
-
9211692116-1003 BEARING, ROLLER, 4T30205BEARING, ROLLER, 4T30205
-
92116A92116-1006 BEARING, ROLLER, 4T30305BEARING, ROLLER, 4T30305
-
671671B2565 O-RING, 65MMO-RING, 65MM
-
671A671B2570 O-RING, 70MMO-RING, 70MM
Все узлы модели:
- AIR CLEANER
- BALANCER SHAFT
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL W/ TORQUE LINK
- BREATHER COVER W/ OIL PAN
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CARBURETOR
- CARBURETOR PARTS
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CLUTCH MASTER CYLINDER
- COWLING
- COWLING - LOWERS
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS
- DRIVE SHAFT/FINAL GEAR
- ENGINE COVER
- ENGINE MOUNT
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- • FRONT BEVEL GEAR
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF ONLY)
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- METER(S)
- MUFFLER(S)
- OIL COOLER
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SADDLEBAGS (SIDE BAG)
- SEAT
- SIDE COVERS
- STAND(S)
- STARTER MOTOR
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
