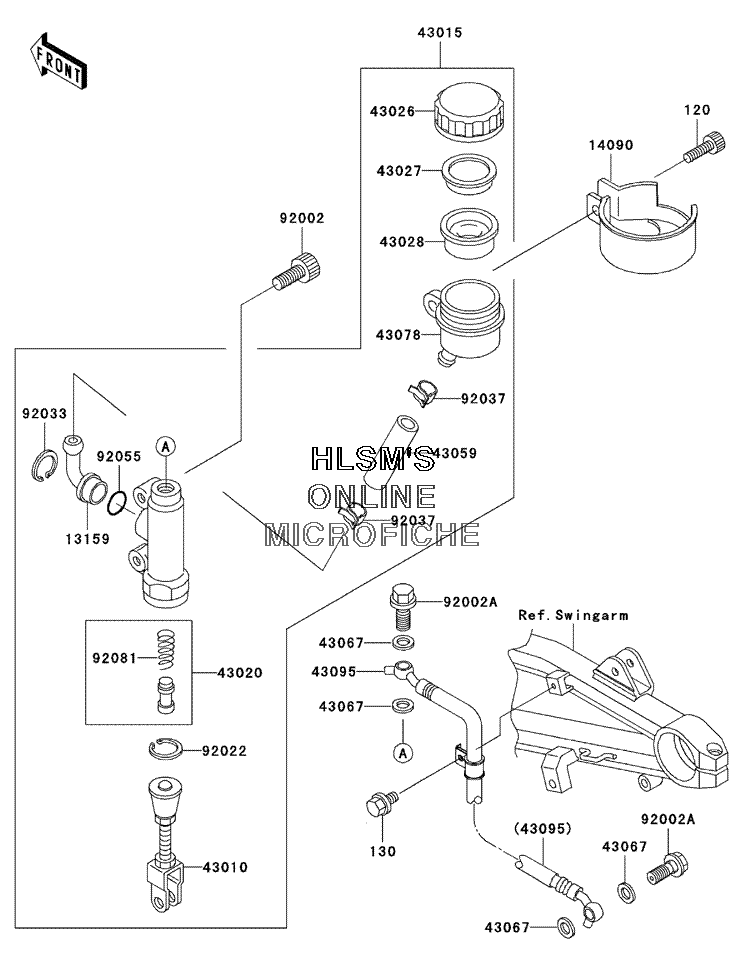

BRAKE - MASTER CYLINDER - REAR для Kawasaki ZRX1200 - 2001 года выпуска
-
№АртикулНазвание
-
120120S0620 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
130130J0610 BOLT, FLANGEDBOLT, FLANGED
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
1409014090-1482 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
4301043010-1077 ROD, ASSY., BRAKEROD, ASSY., BRAKE
-
4301543015-1677 CYLINDER, ASSY., MASTER, REARCYLINDER, ASSY., MASTER, REAR
-
4302043020-1057 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1051 CAP, BRAKECAP, BRAKE
-
4302743027-1051 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4305943059-1990 HOSE, BRAKE, REAR MASTER CYLINDERHOSE, BRAKE, REAR MASTER CYLINDER
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1165 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-1200 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
9200292002-1178 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
92002A92002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
