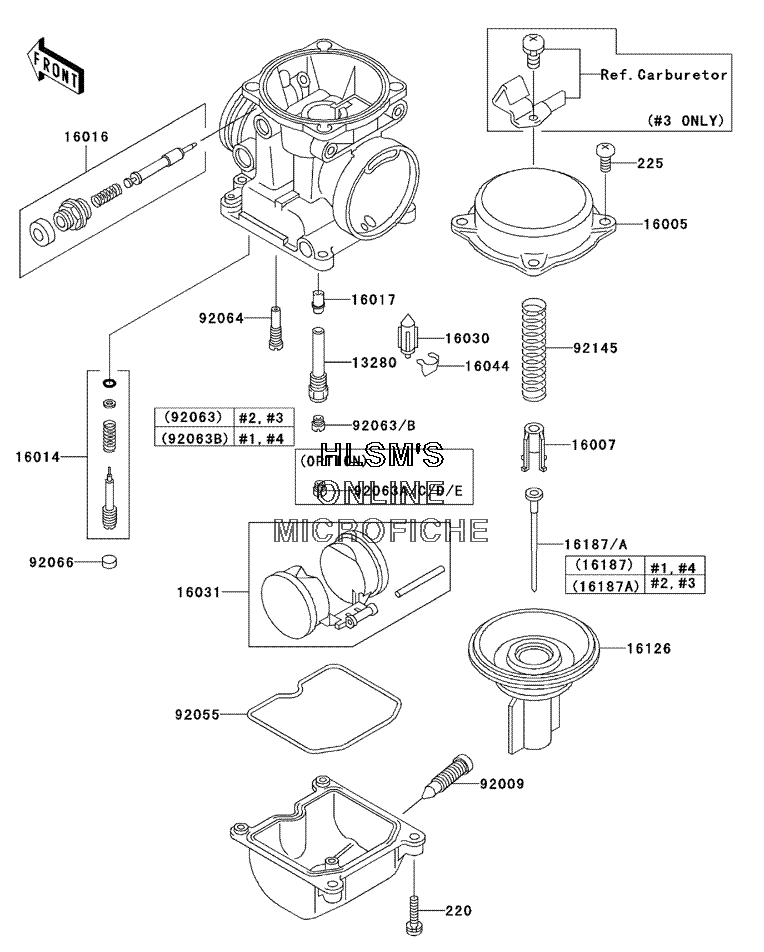

CARBURETOR PARTS для Kawasaki ZRX1200 - 2001 года выпуска
-
№АртикулНазвание
-
220220D0414 SCREW, PAN, CROSSCREW, PAN, CROS
-
225225C0418 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
1328013280-1054 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1600516005-1054 TOP, CHAMBER, MIXINGTOP, CHAMBER, MIXING
-
1600716007-1117 SEAT, SPRING, VALVESEAT, SPRING, VALVE
-
1601416014-1080 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1090 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1440 JET, NEEDLEJET, NEEDLE
-
1603016030-1057 VALVE, FLOATVALVE, FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1338 VALVE, VACUUMVALVE, VACUUM
-
1618716187-1200 NEEDLE, JET, NAGZNEEDLE, JET, NAGZ
-
16187A16187-1201 NEEDLE, JET, NAGUNEEDLE, JET, NAGU
-
9200992009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9205592055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1001 JET, MAIN, #95JET, MAIN, #95
-
92063A92063-1003 JET, MAIN, #90 (OPT)JET, MAIN, #90 (OPT)
-
92063B92063-1004 JET, MAIN, #92JET, MAIN, #92
-
92063C92063-1005 JET, MAIN, #98 (OPT)JET, MAIN, #98 (OPT)
-
92063D92063-1008 JET, MAIN, #100 (OPT)JET, MAIN, #100 (OPT)
-
92063E92063-1024 JET, MAIN, #88 (OPT)JET, MAIN, #88 (OPT)
-
9206492064-1101 JET, PILOT, #35JET, PILOT, #35
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9214592145-1064 SPRING, VACUUM VALVESPRING, VACUUM VALVE
