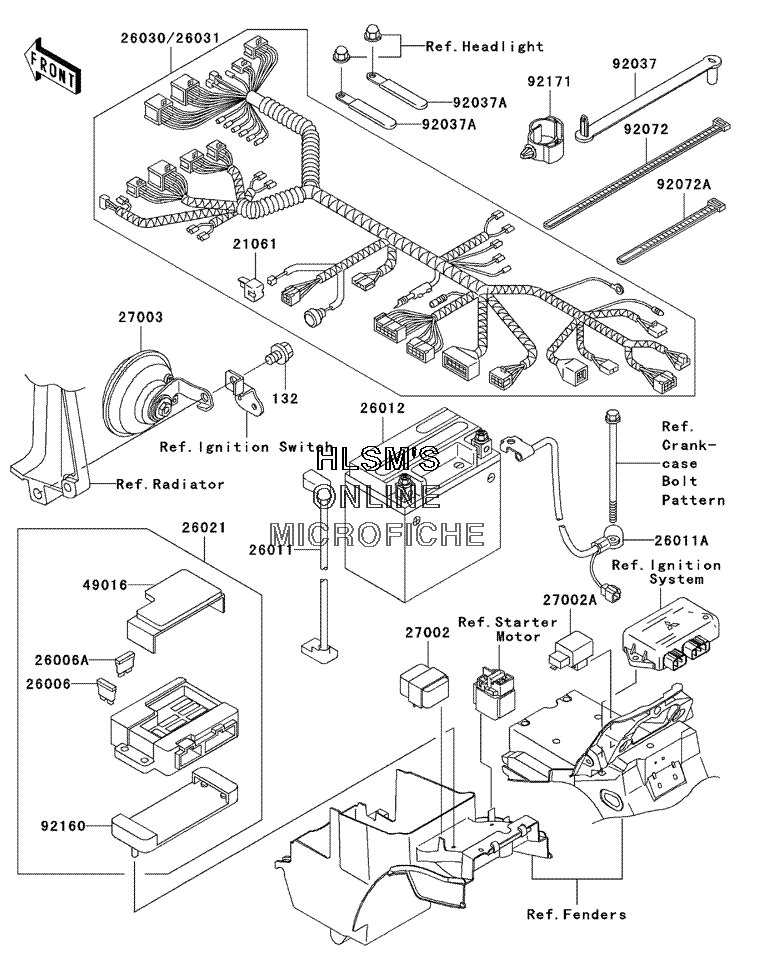

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki ZRX1200 - 2001 года выпуска
-
№АртикулНазвание
-
132132J0812 BOLT, FLANGED, SMALL, 8X12BOLT, FLANGED, SMALL, 8X12
-
2106121061-1059 RECTIFIERRECTIFIER
-
2600626006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1068 FUSE, 10A, RFUSE, 10A, R
-
2601126011-1792 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-1793 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-1409 BATTERY, FTZ14, BS, 12V 14AHBATTERY, FTZ14, BS, 12V 14AH
-
2602126021-1096 JUNCTION BOXJUNCTION BOX
-
2603026030-1841 HARNESS, MAINHARNESS, MAIN
-
2700227002-1078 RELAY, ASSY., HEAD LAMPRELAY, ASSY., HEAD LAMP
-
27002A27002-1101 RELAY, ASSY., TURN SIGNALRELAY, ASSY., TURN SIGNAL
-
2700327003-1424 HORN (RIGHT)HORN (RIGHT)
-
4901649016-1177 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-1993 CLAMPCLAMP
-
9207292072-1237 BAND, L=250BAND, L=250
-
92072A92072-1293 BAND, L=140BAND, L=140
-
9216092160-1650 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
-
9217192171-1415 CLAMP, C CRIP, DIA=13CLAMP, C CRIP, DIA=13
