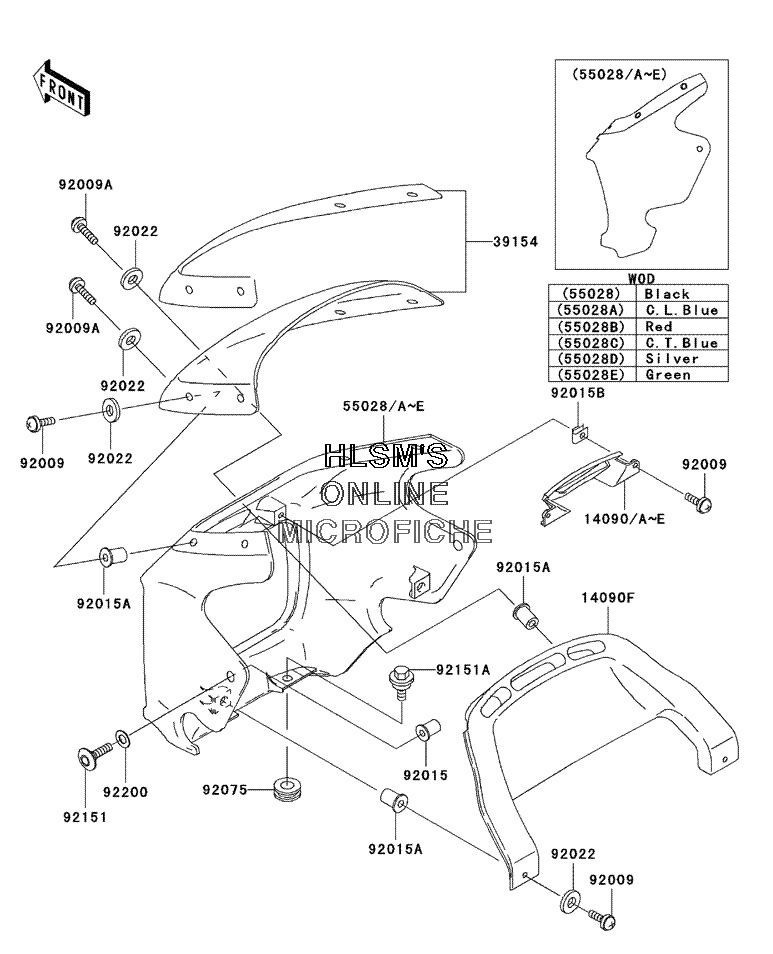

COWLING для Kawasaki ZRX1200 - 2001 года выпуска
-
№АртикулНазвание
-
1409014090-1404-B5 COVER, POSITION LAMP (BLACK)COVER, POSITION LAMP (BLACK)
-
14090E14090-1404-8N COVER, POSITION LAMP (C.L.GREEN)COVER, POSITION LAMP (C.L.GREEN)
-
14090F14090-1776 COVER, INNER COWLINGCOVER, INNER COWLING
-
3915439154-5008 WINDSHIELDWINDSHIELD
-
5502855028-1352-B5 COWLING, UPPER (BLACK)COWLING, UPPER (BLACK)
-
55028E55028-1352-8N COWLING, UPPER (C.L.GREEN)COWLING, UPPER (C.L.GREEN)
-
9200992009-1654 SCREW, 5X16 (BLACK)SCREW, 5X16 (BLACK)
-
92009A92009-1656 SCREW, 5X20 (BLACK)SCREW, 5X20 (BLACK)
-
9201592015-1700 NUTNUT
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
92015B92015-1798 NUT, 5MMNUT, 5MM
-
9202292022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9207592075-1634 DAMPERDAMPER
-
9215192151-1149 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92151A92151-1186 BOLT, FLANGED, 6MMBOLT, FLANGED, 6MM
-
9220092200-1013 WASHER, 10.3X20X1WASHER, 10.3X20X1
