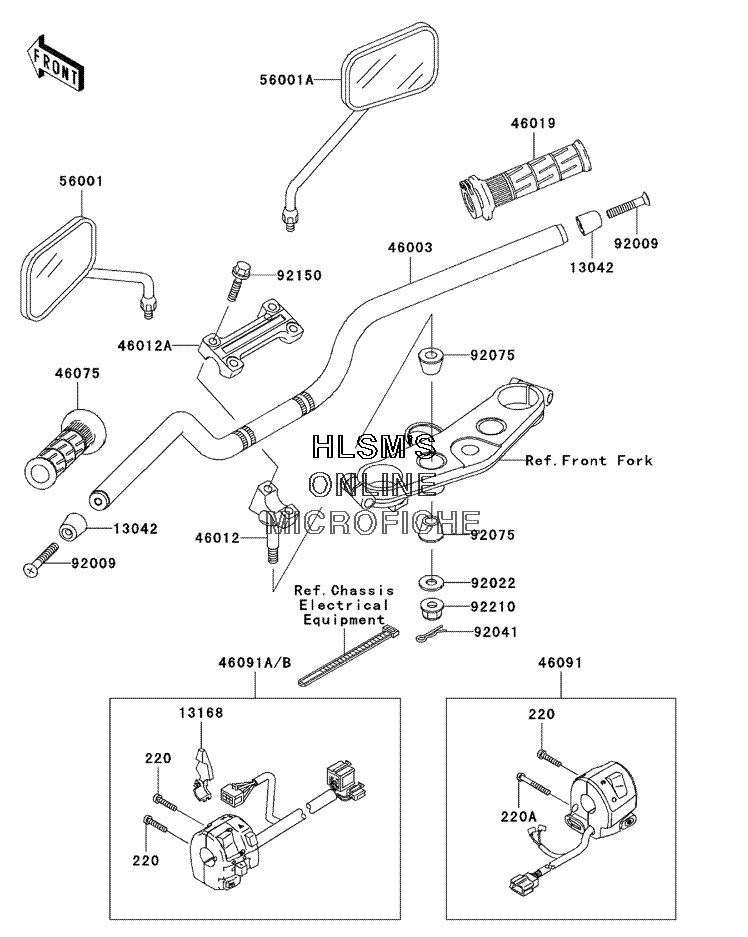

HANDLEBAR для Kawasaki ZRX1200 - 2001 года выпуска
-
№АртикулНазвание
-
220220C0525 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220C0540 SCREW, PAN, CROSSCREW, PAN, CROS
-
1304213042-1005 WEIGHT, HANDLEWEIGHT, HANDLE
-
1316813168-1516 LEVER, CHOKELEVER, CHOKE
-
4600346003-1572 HANDLEHANDLE
-
4601246012-1274 HOLDER, HANDLE, LOWERHOLDER, HANDLE, LOWER
-
46012A46012-1327 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
4601946019-1090 GRIP, ASSY., THROTTLEGRIP, ASSY., THROTTLE
-
4607546075-1144 GRIP (LEFT)GRIP (LEFT)
-
4609146091-1672 HOUSING, ASSY., CONTROL (RIGHT)HOUSING, ASSY., CONTROL (RIGHT)
-
46091A46091-1716 HOUSING, ASSY., CONTROL (LEFT)HOUSING, ASSY., CONTROL (LEFT)
-
5600156001-1564 MIRROR, ASSY. (LEFT)MIRROR, ASSY. (LEFT)
-
56001A56001-1565 MIRROR, ASSY. (RIGHT)MIRROR, ASSY. (RIGHT)
-
9200992009-1257 SCREW, 8X45SCREW, 8X45
-
9202292022-1396 WASHER, 10.5X26X2.3 (BLACK)WASHER, 10.5X26X2.3 (BLACK)
-
9204192041-1060 COTTER, 8MMCOTTER, 8MM
-
9207592075-039 DAMPER, HANDLE HOLDERDAMPER, HANDLE HOLDER
-
9215092150-1835 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
9221092210-1081 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
