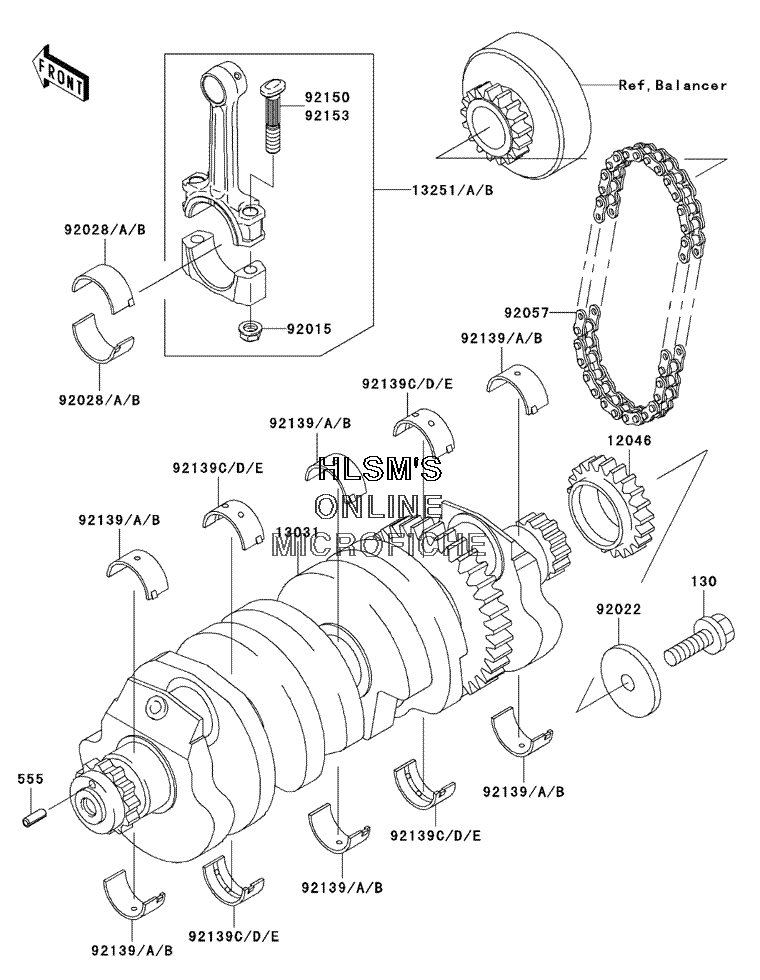

CRANKSHAFT для Kawasaki ZRX1200 - 2002 года выпуска
-
№АртикулНазвание
-
130130G0825 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
555555A0412 PIN, SPRINGPIN, SPRING
-
1204612046-1084 SPROCKET (21 TEETH)SPROCKET (21 TEETH)
-
1303113031-1484 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1325113251-1134-HH ROD, ASSY., CONNECTING, H ( , ZRT20AE018120)ROD, ASSY., CONNECTING, H ( , ZRT20AE018120)
-
13251A13251-1134-II ROD, ASSY., CONNECTING, I ( , ZRT20AE018120)ROD, ASSY., CONNECTING, I ( , ZRT20AE018120)
-
13251B13251-1139-II ROD, ASSY., CONNECTING, I ( ZRT20AE018121 , )ROD, ASSY., CONNECTING, I ( ZRT20AE018121 , )
-
9201592015-1559 NUT, CONNECTING RODNUT, CONNECTING ROD
-
9202292022-1633 WASHER, 8.5X36X4WASHER, 8.5X36X4
-
9202892028-1679 BUSHING, CONNECTING ROD (BLACK)BUSHING, CONNECTING ROD (BLACK)
-
92028A92028-1680 BUSHING, CONNECTING ROD (BLUE)BUSHING, CONNECTING ROD (BLUE)
-
92028B92028-1681 BUSHING, CONNECTING ROD (WHITE)BUSHING, CONNECTING ROD (WHITE)
-
9205792057-1209 CHAIN, GENERATORCHAIN, GENERATOR
-
9213992139-1068 BUSHING, CRANKSHAFT (BLUE)BUSHING, CRANKSHAFT (BLUE)
-
92139A92139-1069 BUSHING, CRANKSHAFT (BLACK)BUSHING, CRANKSHAFT (BLACK)
-
92139B92139-1070 BUSHING, CRANKSHAFT (BROWN)BUSHING, CRANKSHAFT (BROWN)
-
92139C92139-1071 BUSHING, CRANKSHAFT (BLUE)BUSHING, CRANKSHAFT (BLUE)
-
92139D92139-1072 BUSHING, CRANKSHAFT (BLACK)BUSHING, CRANKSHAFT (BLACK)
-
92139E92139-1073 BUSHING, CRANKSHAFT (BROWN)BUSHING, CRANKSHAFT (BROWN)
-
9215092150-1362 BOLT, CONNECTING ROD, 9MM ( , ZRT20AE018120)BOLT, CONNECTING ROD, 9MM ( , ZRT20AE018120)
-
9215392153-1102 BOLT ( ZRT20AE018121 , )BOLT ( ZRT20AE018121 , )
