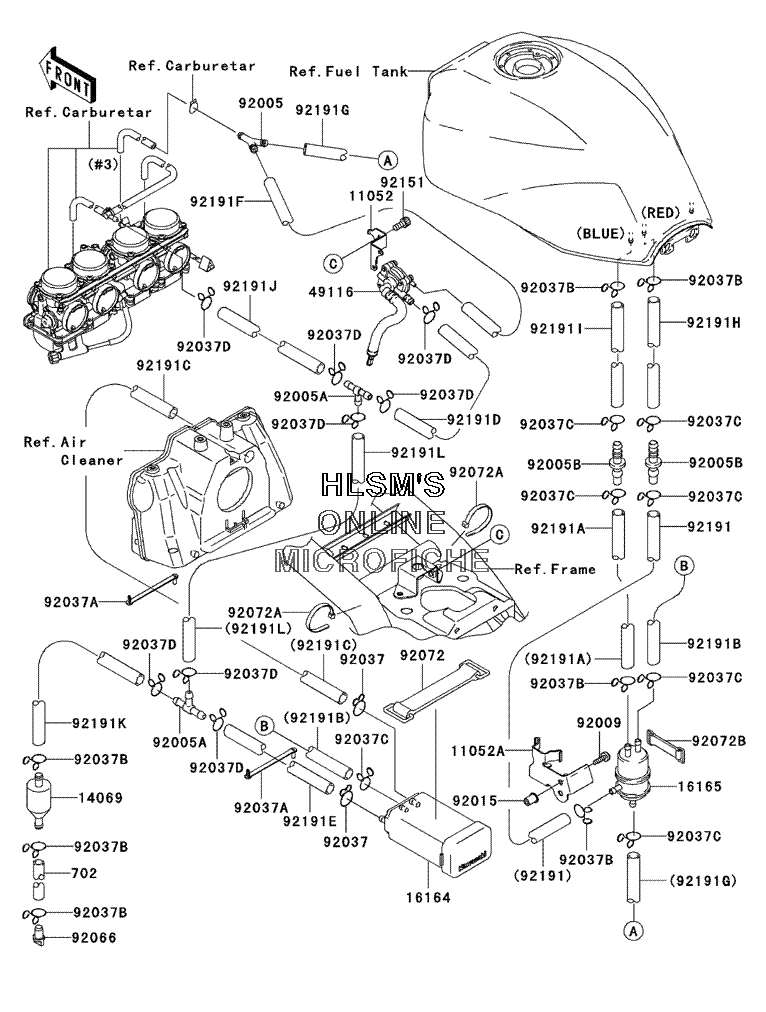

FUEL EVAPORATIVE SYSTEM для Kawasaki ZRX1200 - 2002 года выпуска
-
№АртикулНазвание
-
1105211052-1145 BRACKET, FUEL TANK DAMPER (CALIF. ONLY)BRACKET, FUEL TANK DAMPER (CALIF. ONLY)
-
11052A11052-1146 BRACKET (CALIF. ONLY)BRACKET (CALIF. ONLY)
-
1406914069-1051 BREATHER (CALIF. ONLY)BREATHER (CALIF. ONLY)
-
1616416164-1070 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
1616516165-1070 SEPARATOR (CALIF. ONLY)SEPARATOR (CALIF. ONLY)
-
4911649116-1187 VALVE, ASSY. (CALIF. ONLY)VALVE, ASSY. (CALIF. ONLY)
-
9200592005-1034 FITTING, TUBE (CALIF. ONLY)FITTING, TUBE (CALIF. ONLY)
-
92005A92005-1119 FITTING, T, TYPE (CALIF. ONLY)FITTING, T, TYPE (CALIF. ONLY)
-
92005B92005-1206 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9200992009-1662 SCREW, 6X14 (CALIF. ONLY)SCREW, 6X14 (CALIF. ONLY)
-
9201592015-1700 NUT (CALIF. ONLY)NUT (CALIF. ONLY)
-
9203792037-1104 CLAMP, HOSE (CALIF. ONLY)CLAMP, HOSE (CALIF. ONLY)
-
92037A92037-1163 CLAMP, SPEED, L=58 (CALIF. ONLY)CLAMP, SPEED, L=58 (CALIF. ONLY)
-
92037B92037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037C92037-1712 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92037D92037-1972 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9206692066-1211 PLUG, DRAIN (CALIF. ONLY)PLUG, DRAIN (CALIF. ONLY)
-
9207292072-071 BAND, L=100 (CALIF. ONLY)BAND, L=100 (CALIF. ONLY)
-
92072A92072-1237 BAND, L=250 (CALIF. ONLY)BAND, L=250 (CALIF. ONLY)
-
92072B92072-1419 BAND, L=50 (CALIF. ONLY)BAND, L=50 (CALIF. ONLY)
-
9215192151-1212 BOLT, SOCKET, 5X10 (CALIF. ONLY)BOLT, SOCKET, 5X10 (CALIF. ONLY)
-
9219192191-1581 TUBE, SEPARATOR, TANK (RED) (CALIF. ONLY)TUBE, SEPARATOR, TANK (RED) (CALIF. ONLY)
-
702702A0760 TUBE, RUBBER (CALIF. ONLY)TUBE, RUBBER (CALIF. ONLY)
-
92191A92191-1582 TUBE, TANK, SEPARATOR, BULE (CALIF. ONLY)TUBE, TANK, SEPARATOR, BULE (CALIF. ONLY)
-
92191B92191-1583 TUBE, SEPARATOR, CANISTER, BULE (CALIF. ONLY)TUBE, SEPARATOR, CANISTER, BULE (CALIF. ONLY)
-
92191C92191-1584 TUBE, CANISTER, CLEANER (GREEN) (CALIF. ONLY)TUBE, CANISTER, CLEANER (GREEN) (CALIF. ONLY)
-
92191D92191-1585 TUBE, FITTING, VALVE (YELLOW) (CALIF. ONLY)TUBE, FITTING, VALVE (YELLOW) (CALIF. ONLY)
-
92191E92191-1586 TUBE, FITTING, CANISTER (YELLOW) (CALIF. ONLY)TUBE, FITTING, CANISTER (YELLOW) (CALIF. ONLY)
-
92191F92191-1587 TUBE, CARBURETOR, VALVE (WHITE) (CALIF. ONLY)TUBE, CARBURETOR, VALVE (WHITE) (CALIF. ONLY)
-
92191G92191-1588 TUBE, SEPARATOR, FITTING (WHITE) (CALIF. ONLY)TUBE, SEPARATOR, FITTING (WHITE) (CALIF. ONLY)
-
92191H92191-1649 TUBE (RED) (CALIF. ONLY)TUBE (RED) (CALIF. ONLY)
-
92191I92191-1650 TUBE, BULE (CALIF. ONLY)TUBE, BULE (CALIF. ONLY)
-
92191J92191-1651 TUBE, 7X12X165 (YELLOW) (CALIF. ONLY)TUBE, 7X12X165 (YELLOW) (CALIF. ONLY)
-
92191K92191-1652 TUBE, 7X11X430 (CALIF. ONLY)TUBE, 7X11X430 (CALIF. ONLY)
-
92191L92191-1670 TUBE, 7X12X235 (YELLOW) (CALIF. ONLY)TUBE, 7X12X235 (YELLOW) (CALIF. ONLY)
