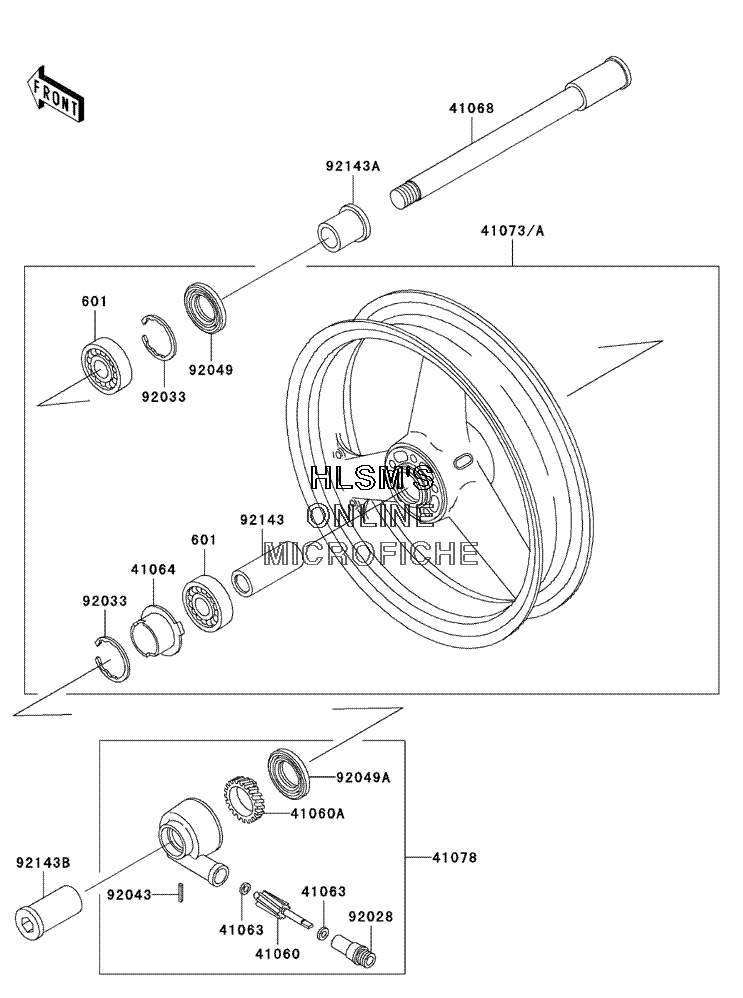

WHEEL - FRONT для Kawasaki ZRX1200 - 2002 года выпуска
-
№АртикулНазвание
-
601601B6005UU BEARING, BALL, #6005UUBEARING, BALL, #6005UU
-
4106041060-1140 GEAR, METER SCREW, 9TGEAR, METER SCREW, 9T
-
41060A41060-1141 GEAR, METER SCREW (24 TEETH)GEAR, METER SCREW (24 TEETH)
-
4106341063-001 WASHER, 5.1X9X0.4WASHER, 5.1X9X0.4
-
4106441064-1055 RECEIVER, SPEEDOMETERRECEIVER, SPEEDOMETER
-
4106841068-1327 AXLE, FRONTAXLE, FRONT
-
4107341073-1618-R2 WHEEL, ASSY., FRONT (BLACK)WHEEL, ASSY., FRONT (BLACK)
-
4107841078-1082 CASE, ASSY., METER GEARCASE, ASSY., METER GEAR
-
9202892028-1634 BUSHING, METER GEAR CASEBUSHING, METER GEAR CASE
-
9203392033-1042 RING, SNAP, 47MMRING, SNAP, 47MM
-
9204392043-1454 PIN, SPRING, 3X18PIN, SPRING, 3X18
-
9204992049-1377 SEAL, OIL, BJN 32 47 5SEAL, OIL, BJN 32 47 5
-
92049A92049-1378 SEAL, OIL, BJN, C2 35 52 5SEAL, OIL, BJN, C2 35 52 5
-
9214392143-1476 COLLAR, FRONT HUB, L=94COLLAR, FRONT HUB, L=94
-
92143A92143-1477 COLLAR, FRONT AXLE (RIGHT) L=17.5COLLAR, FRONT AXLE (RIGHT) L=17.5
-
92143B92143-1478 COLLAR, FRONT AXLE (LEFT) L=44.5COLLAR, FRONT AXLE (LEFT) L=44.5
