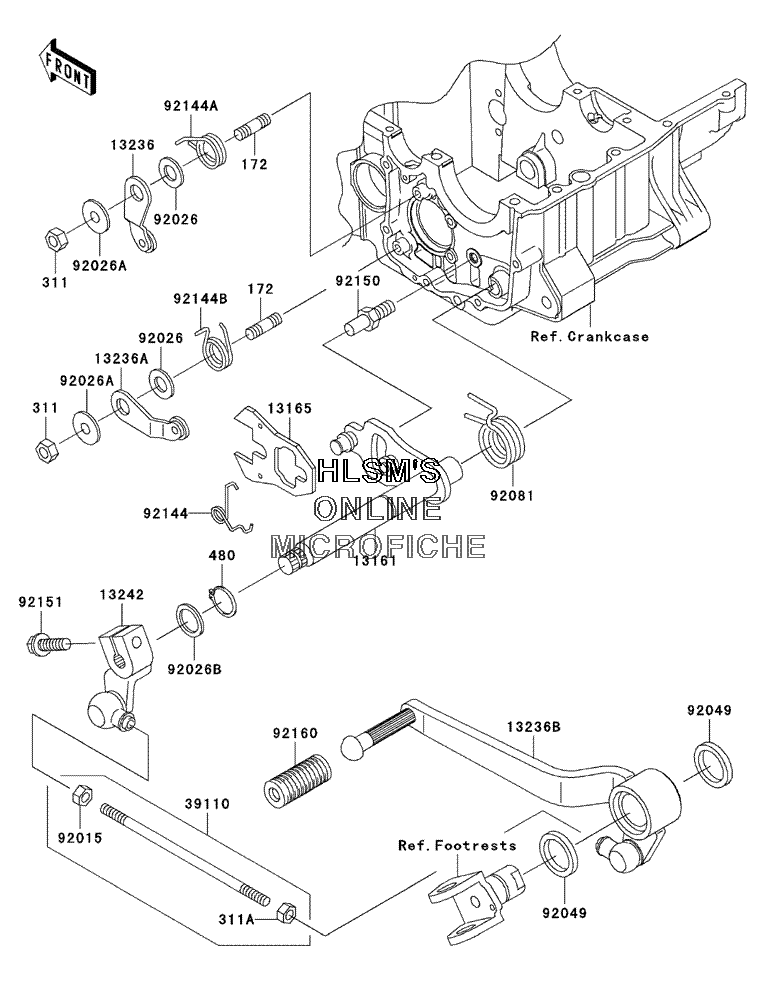

GEAR CHANGE MECHANISM для Kawasaki ZRX1200 - 2002 года выпуска
-
№АртикулНазвание
-
172172G0614 BOLT, STUD, 6X14BOLT, STUD, 6X14
-
311311G0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
311A311J0600 NUT, HEXNUT, HEX
-
480480J1300 CIRCLIP, TYPE, C, 13MMCIRCLIP, TYPE, C, 13MM
-
1316113161-1155 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1316513165-1120 PAWLPAWL
-
1323613236-1103 LEVER, COMP, GEAR POSITIONLEVER, COMP, GEAR POSITION
-
13236A13236-1216 LEVER, COMP, GEAR POSITIONLEVER, COMP, GEAR POSITION
-
13236B13236-1365 LEVER, COMP, PEDALLEVER, COMP, PEDAL
-
1324213242-1323 LEVER, ASSY., CHANGE, LINKLEVER, ASSY., CHANGE, LINK
-
3911039110-1106 ROD, ASSY., TIEROD, ASSY., TIE
-
9201592015-1178 NUTNUT
-
9202692026-094 SPACER, 6.3X12X1.0SPACER, 6.3X12X1.0
-
92026A92026-1217 SPACERSPACER
-
92026B92026-1532 SPACER, 13.3X18X1.0SPACER, 13.3X18X1.0
-
9204992049-1492 SEAL, OILSEAL, OIL
-
9208192081-1869 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
9214492144-1029 SPRINGSPRING
-
92144A92144-1856 SPRINGSPRING
-
92144B92144-1857 SPRING, GEAR POSITIONSPRING, GEAR POSITION
-
9215092150-1869 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9215192151-1450 BOLT, 6X20BOLT, 6X20
-
9216092160-1036 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
