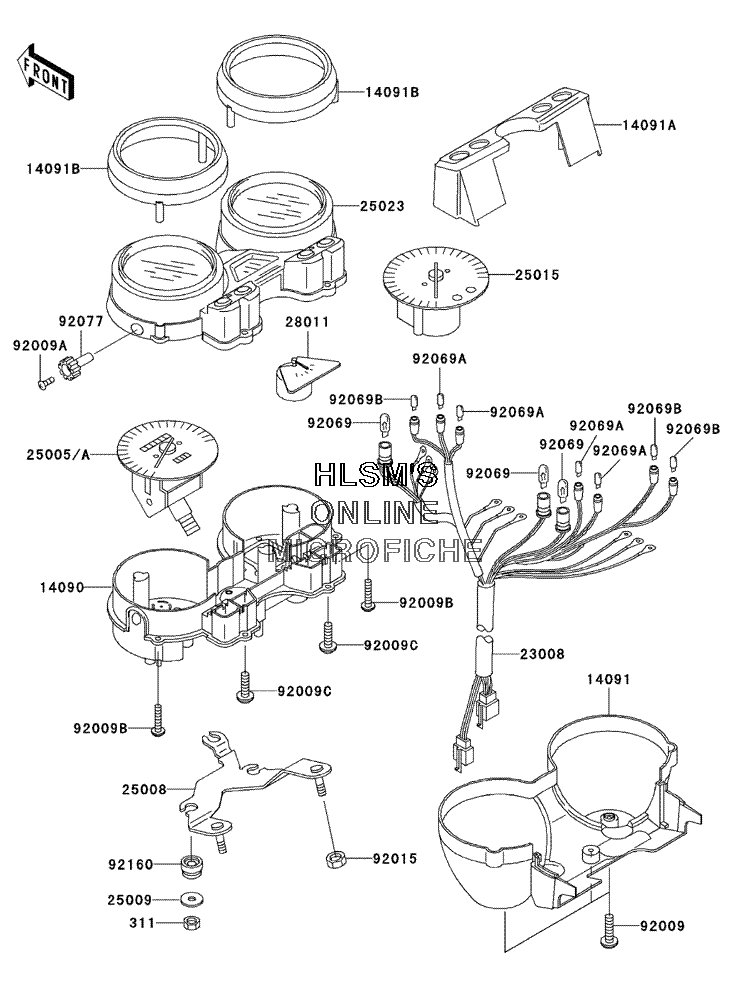

METER(S) для Kawasaki ZRX1200 - 2002 года выпуска
-
№АртикулНазвание
-
311311C0500 NUT, HEXNUT, HEX
-
1409014090-1842 COVER, METER HOUSINGCOVER, METER HOUSING
-
1409114091-1105 COVER, METER, LOWERCOVER, METER, LOWER
-
14091A14091-1154 COVER, PILOT BOX, UPPERCOVER, PILOT BOX, UPPER
-
14091B14091-1326 COVER, SPEEDO AND TACHOMETERCOVER, SPEEDO AND TACHOMETER
-
2300823008-1583 SOCKET, ASSY., METERSOCKET, ASSY., METER
-
2500525005-1691 SPEEDOMETER, KPH (CANADA ONLY)SPEEDOMETER, KPH (CANADA ONLY)
-
25005A25005-1692 SPEEDOMETER, MPH (US ONLY)SPEEDOMETER, MPH (US ONLY)
-
2500825008-1213 BRACKET, METERBRACKET, METER
-
2500925009-004 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
2501525015-1364 TACHOMETER, X1000R/MINTACHOMETER, X1000R/MIN
-
2502325023-1230 COVER, METER CASE, UPPERCOVER, METER CASE, UPPER
-
2801128011-1216 METER, FUELMETER, FUEL
-
9200992009-1158 SCREW, 4X16 (BLACK)SCREW, 4X16 (BLACK)
-
92009A92009-1172 SCREW, 2X6 (BLACK)SCREW, 2X6 (BLACK)
-
92009B92009-1391 SCREW, TAPPING, 3X16SCREW, TAPPING, 3X16
-
92009C92009-1503 SCREW, TAPPING, 4X14SCREW, TAPPING, 4X14
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9206992069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
92069A92069-1068 BULB, 12V 3W, T6.5BULB, 12V 3W, T6.5
-
92069B92069-1070 BULB, 12V 1.7W, T6.5BULB, 12V 1.7W, T6.5
-
9207792077-1073 KNOB, METERKNOB, METER
-
9216092160-1178 DAMPERDAMPER
