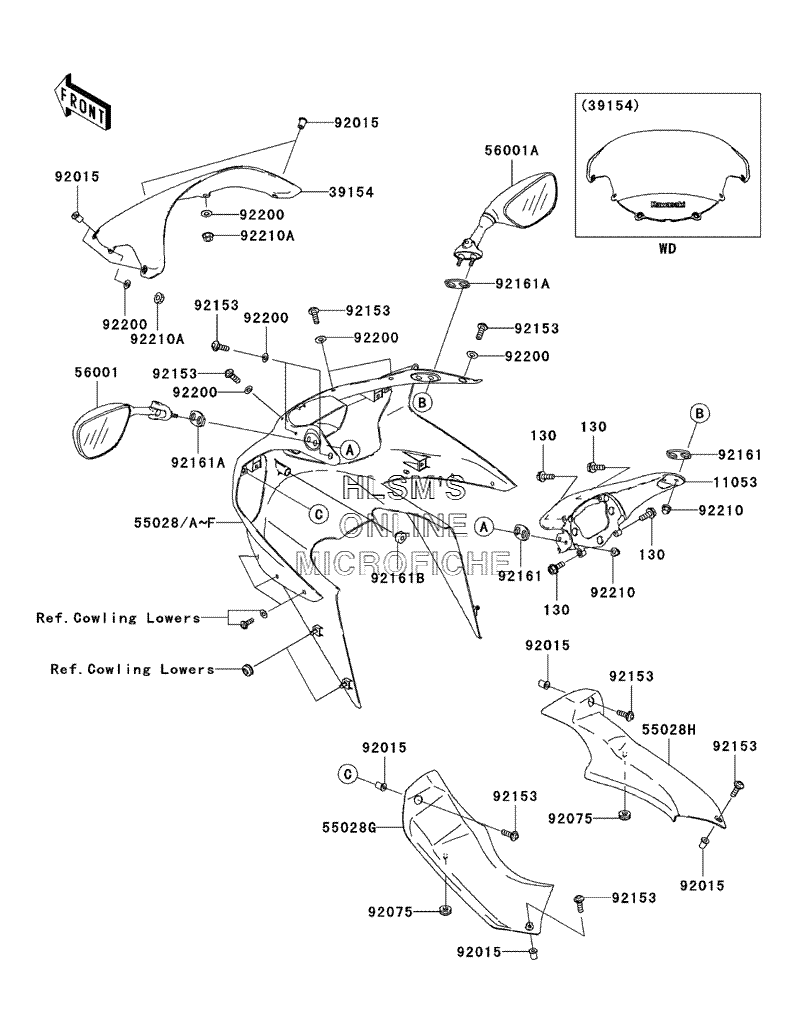

COWLING для Kawasaki NINJA ZX-6R - 2003 года выпуска
-
№АртикулНазвание
-
130130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
1105311053-1074 BRACKET, METER AND MIRRORBRACKET, METER AND MIRROR
-
3915439154-5020 WINDSHIELDWINDSHIELD
-
5502855028-1453-B5 COWLING, UPPER (BLACK)COWLING, UPPER (BLACK)
-
55028A55028-1453-E1 COWLING, UPPER (C.L.BLUE) (US ONLY)COWLING, UPPER (C.L.BLUE) (US ONLY)
-
55028B55028-1453-234 COWLING, UPPER (P.RED)COWLING, UPPER (P.RED)
-
55028E55028-1453-474 COWLING, UPPER (G.SILVER)COWLING, UPPER (G.SILVER)
-
55028F55028-1453-7F COWLING, UPPER (L.GREEN) (CANADA ONLY)COWLING, UPPER (L.GREEN) (CANADA ONLY)
-
55028G55028-1457-265 COWLING, INNER (LEFT) (M.F.BLACK)COWLING, INNER (LEFT) (M.F.BLACK)
-
55028H55028-1458-265 COWLING, INNER (RIGHT) (M.F.BLACK)COWLING, INNER (RIGHT) (M.F.BLACK)
-
5600156001-1589 MIRROR, ASSY (LEFT)MIRROR, ASSY (LEFT)
-
56001A56001-1590 MIRROR, ASSY (RIGHT)MIRROR, ASSY (RIGHT)
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9207592075-1067 DAMPERDAMPER
-
9215392153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9216192161-1323 DAMPER, MIRROR, INNERDAMPER, MIRROR, INNER
-
92161A92161-1324 DAMPER, MIRROR, OUTERDAMPER, MIRROR, OUTER
-
92161B92161-1329 DAMPER, HEAD LAMPDAMPER, HEAD LAMP
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210A92210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
