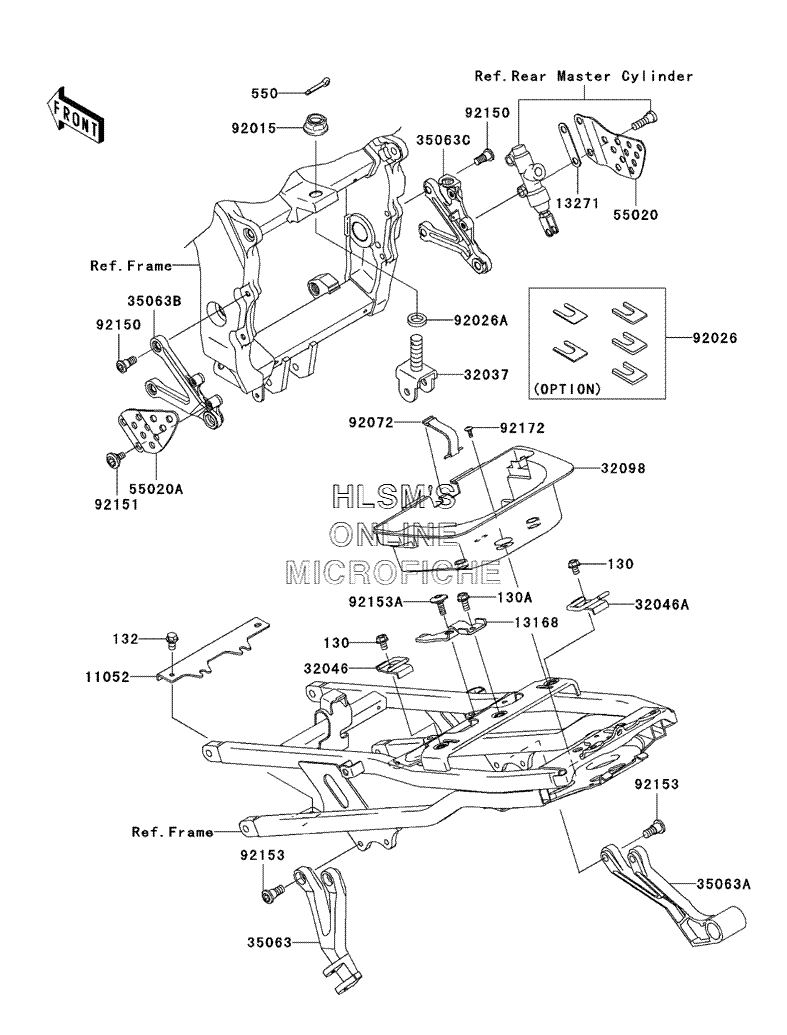

FRAME FITTINGS для Kawasaki NINJA ZX-6R - 2003 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
132132J0610 BOLT, FLANGED, SMALL, 6X10BOLT, FLANGED, SMALL, 6X10
-
550550D4025 PIN, COTTER, 4.0X25PIN, COTTER, 4.0X25
-
1105211052-1951 BRACKET, BATTERY CASEBRACKET, BATTERY CASE
-
1316813168-1765 LEVER, FRONT SEATLEVER, FRONT SEAT
-
1327113271-0104 PLATE, FOOT GUARDPLATE, FOOT GUARD
-
3203732037-1887 BRACKET, SHOCKABSORBERBRACKET, SHOCKABSORBER
-
3204632046-1522 BRACKET, SEAT (LEFT)BRACKET, SEAT (LEFT)
-
32046A32046-1523 BRACKET, SEAT (RIGHT)BRACKET, SEAT (RIGHT)
-
3209832098-1144 CASE, TOOLCASE, TOOL
-
3506335063-0031-458 STAY, REAR STEP (LEFT) (P.SILVER)STAY, REAR STEP (LEFT) (P.SILVER)
-
35063A35063-0032-458 STAY, REAR STEP (RIGHT) (P.SILVER)STAY, REAR STEP (RIGHT) (P.SILVER)
-
35063B35063-0037-458 STAY, FRONT STEP (LEFT) (P.SILVER)STAY, FRONT STEP (LEFT) (P.SILVER)
-
35063C35063-1257-458 STAY, FRONT STEP (RIGHT) (P.SILVER)STAY, FRONT STEP (RIGHT) (P.SILVER)
-
5502055020-0025 GUARD, FRONT STEP STAY (RIGHT)GUARD, FRONT STEP STAY (RIGHT)
-
55020A55020-1627 GUARD, FRONT STEP STAY (LEFT)GUARD, FRONT STEP STAY (LEFT)
-
9201592015-1881 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9202692026-1586 SPACER, SET (OPT)SPACER, SET (OPT)
-
92026A92026-1594 SPACER, 16.5X26X6SPACER, 16.5X26X6
-
9207292072-1349 BAND, TOOLBAND, TOOL
-
9215092150-1839 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9215192151-1334 BOLT, 6MMBOLT, 6MM
-
9215392153-0412 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
92153A92153-1262 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9217292172-0008 SCREW, 5X12SCREW, 5X12
