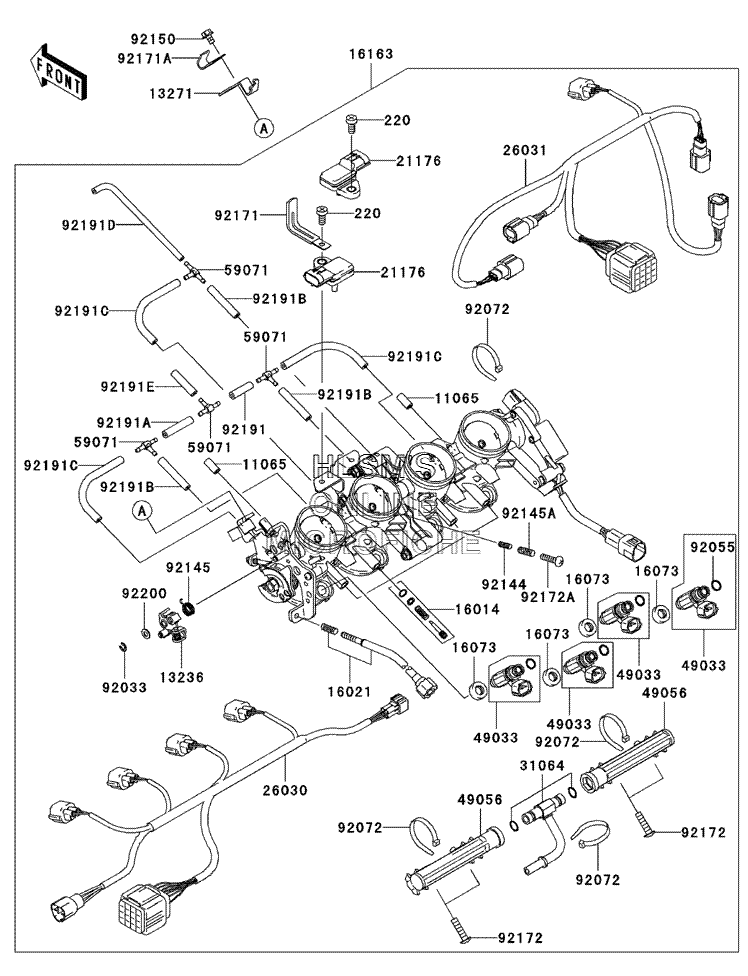

THROTTLE для Kawasaki NINJA ZX-6R - 2003 года выпуска
-
№АртикулНазвание
-
220220C0612 SCREW, PAN, CROS, 6X12SCREW, PAN, CROS, 6X12
-
1106511065-0018 CAPCAP
-
1323613236-0014 LEVER, COMP, FAST IDLELEVER, COMP, FAST IDLE
-
1327113271-0098 PLATEPLATE
-
1601416014-0002 SCREW, PILOT AIRSCREW, PILOT AIR
-
1602116021-0001 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-1120 THROTTLE, ASSYTHROTTLE, ASSY
-
2117621176-1118 SENSORSENSOR
-
2603026030-1998 HARNESSHARNESS
-
2603126031-1081 HARNESSHARNESS
-
3106431064-0002 PIPE, COMP, FUELPIPE, COMP, FUEL
-
4903349033-1059 NOZZLE, INJECTIONNOZZLE, INJECTION
-
4905649056-0001 PIPE, INJECTIONPIPE, INJECTION
-
5907159071-3752 JOINT, 3WAY, TJOINT, 3WAY, T
-
9203392033-0004 RING, SNAP, FAST IDLERING, SNAP, FAST IDLE
-
9205592055-1622 O-RING, INJECTION NOZZLEO-RING, INJECTION NOZZLE
-
9207292072-0012 BAND, SUB, HARNESSBAND, SUB, HARNESS
-
9214492144-1451 SPRING, THROTTLE ADJUST LOWERSPRING, THROTTLE ADJUST LOWER
-
9214592145-0054 SPRING, FAST IDLESPRING, FAST IDLE
-
92145A92145-0055 SPRING, THROTTLE SYNCROSPRING, THROTTLE SYNCRO
-
9215092150-1406 BOLT, 5X8BOLT, 5X8
-
9217192171-0112 CLAMPCLAMP
-
92171A92171-1539 CLAMPCLAMP
-
9217292172-0064 SCREW, PIPE INJECTIONSCREW, PIPE INJECTION
-
92172A92172-0065 SCREW, THROTTLE SYNCROSCREW, THROTTLE SYNCRO
-
9219192191-0020 TUBE, 3X7X25TUBE, 3X7X25
-
92191A92191-0021 TUBE, 3X7X35TUBE, 3X7X35
-
92191B92191-0022 TUBE, 3X7X40TUBE, 3X7X40
-
92191C92191-0023 TUBE, 3X7X100TUBE, 3X7X100
-
92191D92191-0024 TUBE, 3X7X153TUBE, 3X7X153
-
92191E92191-0025 TUBETUBE
-
9220092200-0033 WASHER, FAST IDLEWASHER, FAST IDLE
