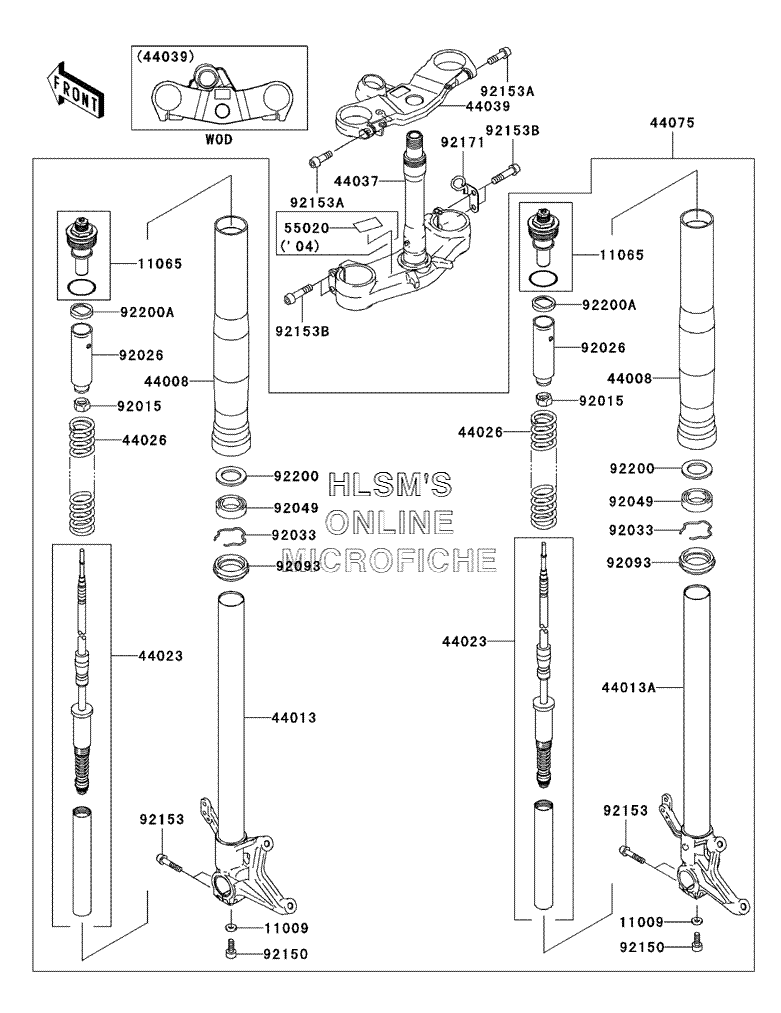

FRONT FORK для Kawasaki NINJA ZX-6R - 2003 года выпуска
-
№АртикулНазвание
-
1100911009-1127 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
1106511065-0003 CAPCAP
-
4400844008-0001 PIPE, FORK OUTERPIPE, FORK OUTER
-
4401344013-1510 PIPE, FORK INNER (LEFT)PIPE, FORK INNER (LEFT)
-
44013A44013-1511 PIPE, FORK INNER (RIGHT)PIPE, FORK INNER (RIGHT)
-
4402344023-0001 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
4402644026-0001 SPRING, FRONT FORKSPRING, FRONT FORK
-
4403744037-1442 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1332 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4407544075-1182 DAMPER, SET, FORKDAMPER, SET, FORK
-
9201592015-1795 NUTNUT
-
9202692026-0045 SPACER, FORKSPACER, FORK
-
9203392033-1036 RING, SNAPRING, SNAP
-
9204992049-0001 SEAL, OILSEAL, OIL
-
9209392093-1472 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215092150-1398 BOLT, 12X22BOLT, 12X22
-
9215392153-0006 BOLT, SOCKET, 8X40BOLT, SOCKET, 8X40
-
92153A92153-0007 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
92153B92153-1228 BOLT, SOCKET, 8X35BOLT, SOCKET, 8X35
-
9217192171-0028 CLAMPCLAMP
-
9220092200-0001 WASHERWASHER
-
92200A92200-0085 WASHERWASHER
