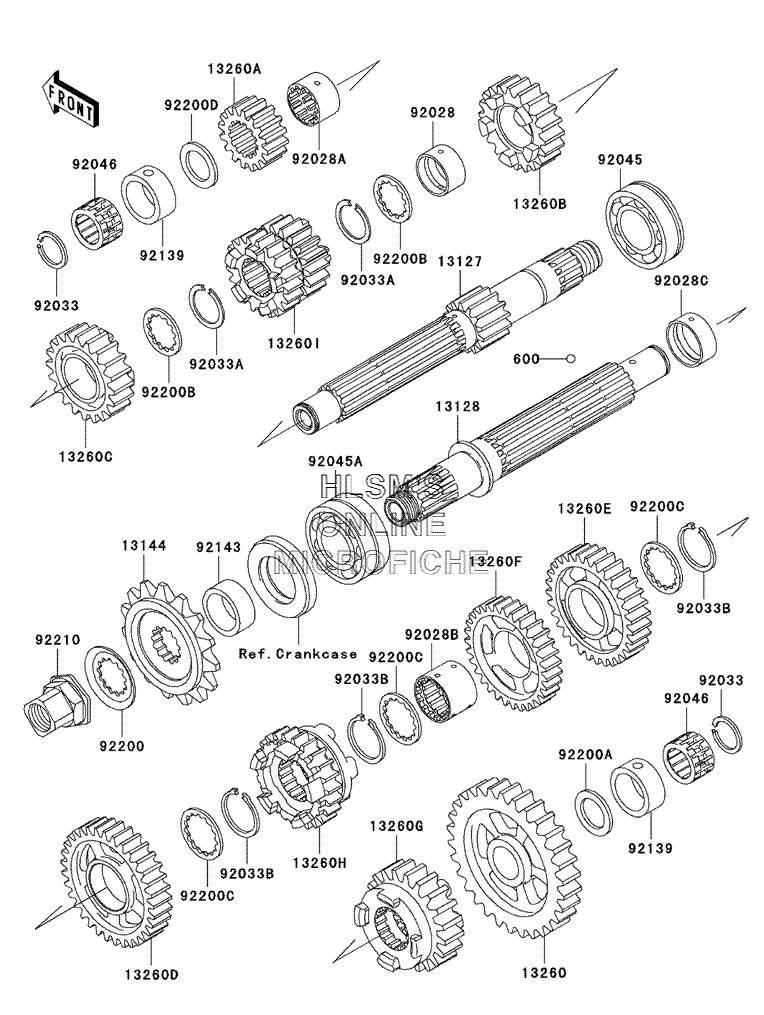

TRANSMISSION для Kawasaki NINJA ZX-6R - 2003 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1298 SHAFT, TRANSMISSION INPUT (13 TEETH)SHAFT, TRANSMISSION INPUT (13 TEETH)
-
1312813128-1264 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1324 SPROCKET, OUTPUT (15 TEETH)SPROCKET, OUTPUT (15 TEETH)
-
1326013260-1456 GEAR, OUTPUT LOW (38 TEETH)GEAR, OUTPUT LOW (38 TEETH)
-
13260A13260-1987 GEAR, INPUT 2ND (18 TEETH)GEAR, INPUT 2ND (18 TEETH)
-
13260B13260-1989 GEAR, INPUT 5TH (22 TEETH)GEAR, INPUT 5TH (22 TEETH)
-
13260C13260-1990 GEAR, INPUT TOP (26 TEETH)GEAR, INPUT TOP (26 TEETH)
-
13260D13260-1992 GEAR, OUTPUT 2ND (37 TEETH)GEAR, OUTPUT 2ND (37 TEETH)
-
13260E13260-1993 GEAR, OUTPUT 3RD (31 TEETH)GEAR, OUTPUT 3RD (31 TEETH)
-
13260F13260-1994 GEAR, OUTPUT 4TH (29 TEETH)GEAR, OUTPUT 4TH (29 TEETH)
-
13260G13260-1995 GEAR, OUTPUT 5TH (28 TEETH)GEAR, OUTPUT 5TH (28 TEETH)
-
13260H13260-1996 GEAR, OUTPUT TOP (30 TEETH)GEAR, OUTPUT TOP (30 TEETH)
-
13260I13260-1998 GEAR, INPUT 3RD AND 4TH (18/20 TEETH)GEAR, INPUT 3RD AND 4TH (18/20 TEETH)
-
9202892028-1735 BUSHING, INPUT 5TH GEARBUSHING, INPUT 5TH GEAR
-
92028A92028-1736 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028B92028-1738 BUSHING, OUTPUT, 3RD AND 4THBUSHING, OUTPUT, 3RD AND 4TH
-
92028C92028-1739 BUSHING, OUTPUT, 2NDBUSHING, OUTPUT, 2ND
-
9203392033-015 RING, SNAP, 20MMRING, SNAP, 20MM
-
92033A92033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033B92033-1037 RING, SNAP, T=1.2RING, SNAP, T=1.2
-
9204592045-0009 BEARING, BALL, HR6205C3BEARING, BALL, HR6205C3
-
92045A92045-035 BEARING, BALL, 83993SH2, CSBEARING, BALL, 83993SH2, CS
-
9204692046-1303 BEARING, NEEDLE, PK20X27X17X3BEARING, NEEDLE, PK20X27X17X3
-
9213992139-1090 BUSHING, 27X34X18.6BUSHING, 27X34X18.6
-
9214392143-1756 COLLAR, 25X32X13COLLAR, 25X32X13
-
9220092200-1065 WASHERWASHER
-
92200A92200-1238 WASHER, 20.3X30X2.3WASHER, 20.3X30X2.3
-
92200B92200-1239 WASHER, INPUT TOP AND 5THWASHER, INPUT TOP AND 5TH
-
92200C92200-1240 WASHER, T=1.5WASHER, T=1.5
-
92200D92200-1613 WASHER, 20.3X33X1.0WASHER, 20.3X33X1.0
-
9221092210-1098 NUT, SPROCKETNUT, SPROCKET
