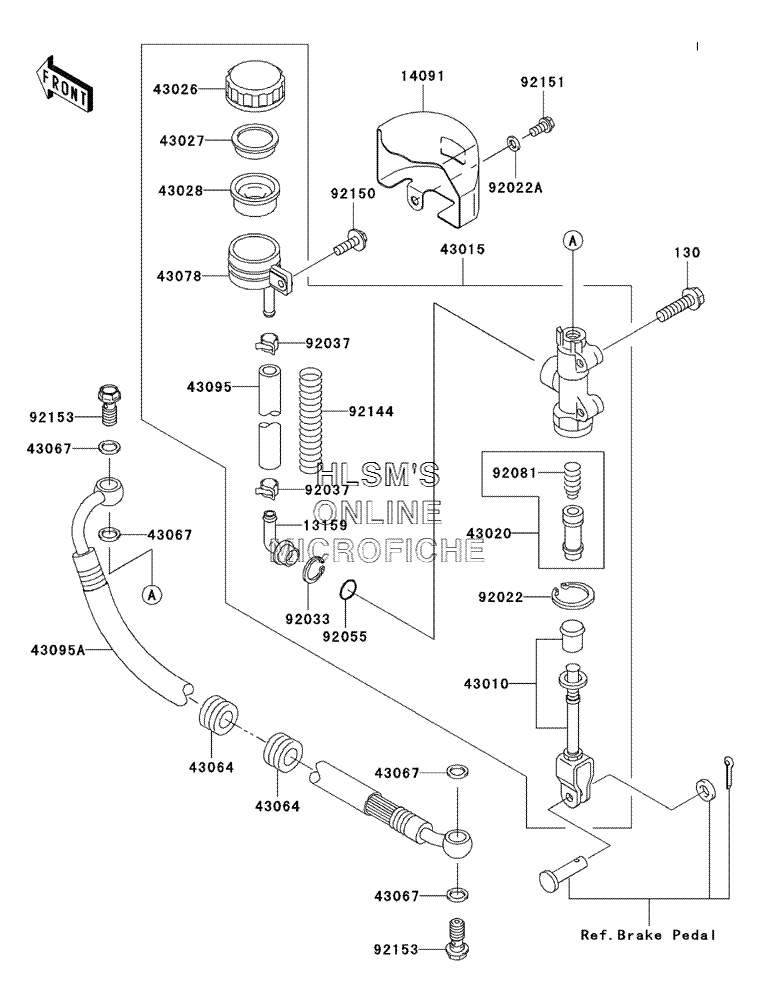

BRAKE - MASTER CYLINDER - REAR для Kawasaki Vulcan 800 Drifter - 2003 года выпуска
-
№АртикулНазвание
-
130130J0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
1409114091-1300 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
4301043010-1055 ROD, ASSY, BRAKEROD, ASSY, BRAKE
-
4301543015-1647 CYLINDER, ASSY, MASTER, REARCYLINDER, ASSY, MASTER, REAR
-
4302043020-1057 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1051 CAP, BRAKECAP, BRAKE
-
4302743027-1051 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1165 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-1148 HOSE, BRAKE, REAR MASTER CYLINDERHOSE, BRAKE, REAR MASTER CYLINDER
-
43095A43095-1168 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
92022A92022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9214492144-1513 SPRING, PROTECTORSPRING, PROTECTOR
-
9215092150-1633 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9215192151-1401 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
