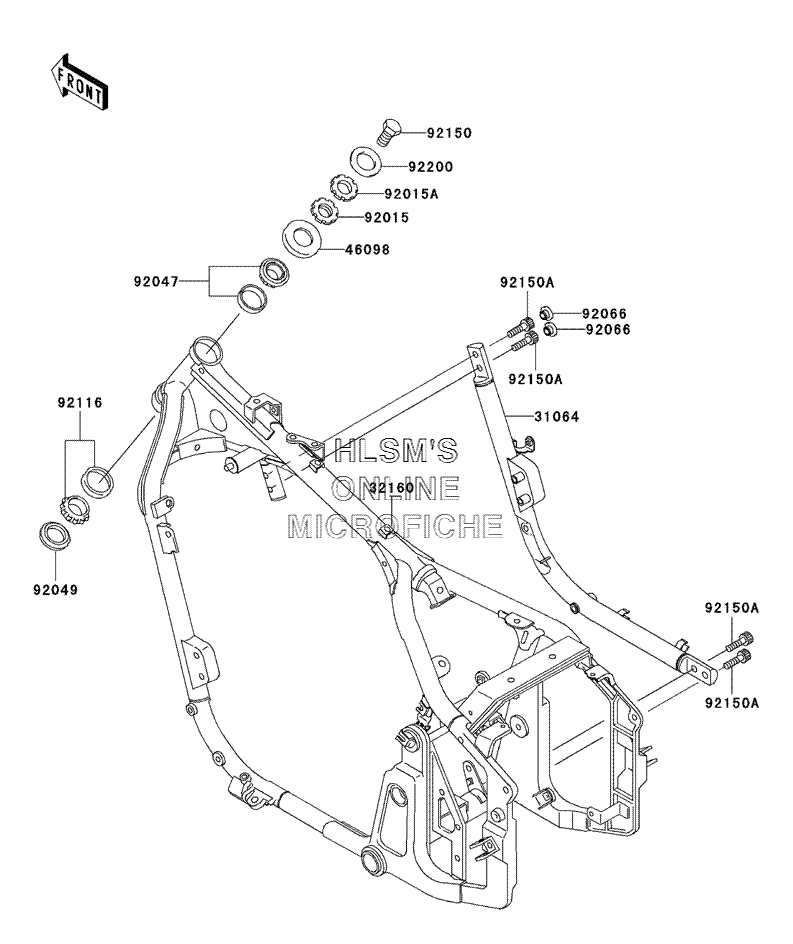

FRAME для Kawasaki Vulcan 800 Drifter - 2003 года выпуска
-
№АртикулНазвание
-
3106431064-1221 PIPE, COMP, DOWNTUBE (RIGHT)PIPE, COMP, DOWNTUBE (RIGHT)
-
3216032160-1697 FRAME, COMPFRAME, COMP
-
4609846098-017 CAP, STEERING STEMCAP, STEERING STEM
-
9201592015-1377 NUT, 25MM, T=10NUT, 25MM, T=10
-
92015A92015-1378 NUT, 25MM, T=6NUT, 25MM, T=6
-
9204792047-017 RACE, ROLLER, 32005JR RSRACE, ROLLER, 32005JR RS
-
9204992049-1162 SEAL, OIL, XMHE36X52X4JSEAL, OIL, XMHE36X52X4J
-
9206692066-1285 PLUGPLUG
-
9211692116-1009 BEARING, ROLLER, HR320/28XJBEARING, ROLLER, HR320/28XJ
-
9215092150-1672 BOLT, 14X25BOLT, 14X25
-
92150A92150-1942 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9220092200-1140 WASHERWASHER
