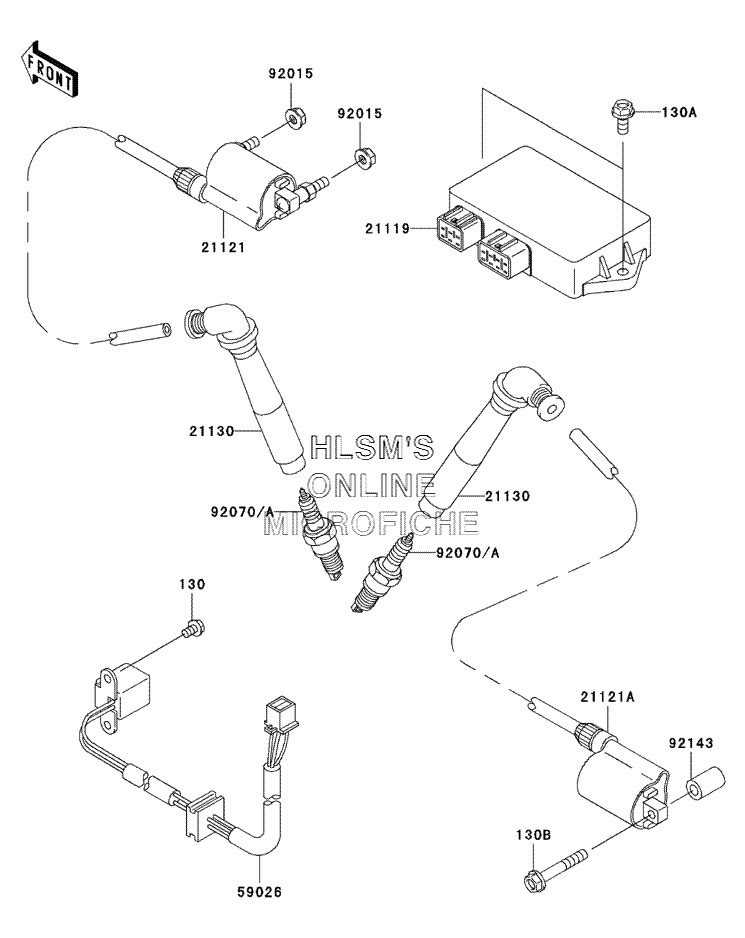

IGNITION SYSTEM для Kawasaki Vulcan 800 Drifter - 2003 года выпуска
-
№АртикулНазвание
-
130130G0510 BOLT, FLANGEDBOLT, FLANGED
-
130A130G0614 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
130B130V0640 BOLT, FLANGEDBOLT, FLANGED
-
2111921119-1535 IGNITERIGNITER
-
2112121121-1245 COIL, IGNITION, FRONTCOIL, IGNITION, FRONT
-
21121A21121-1246 COIL, IGNITION, REARCOIL, IGNITION, REAR
-
2113021130-1075 CAP, SPARK PLUGCAP, SPARK PLUG
-
5902659026-1130 COIL, PULSINGCOIL, PULSING
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9207092070-1169 PLUG, SPARK, CR8E (NGK) (OPT)PLUG, SPARK, CR8E (NGK) (OPT)
-
92070A92070-1209 PLUG, SPARK, CR7E (NGK)PLUG, SPARK, CR7E (NGK)
-
9214392143-1773 COLLAR, 6.8X13X20COLLAR, 6.8X13X20
