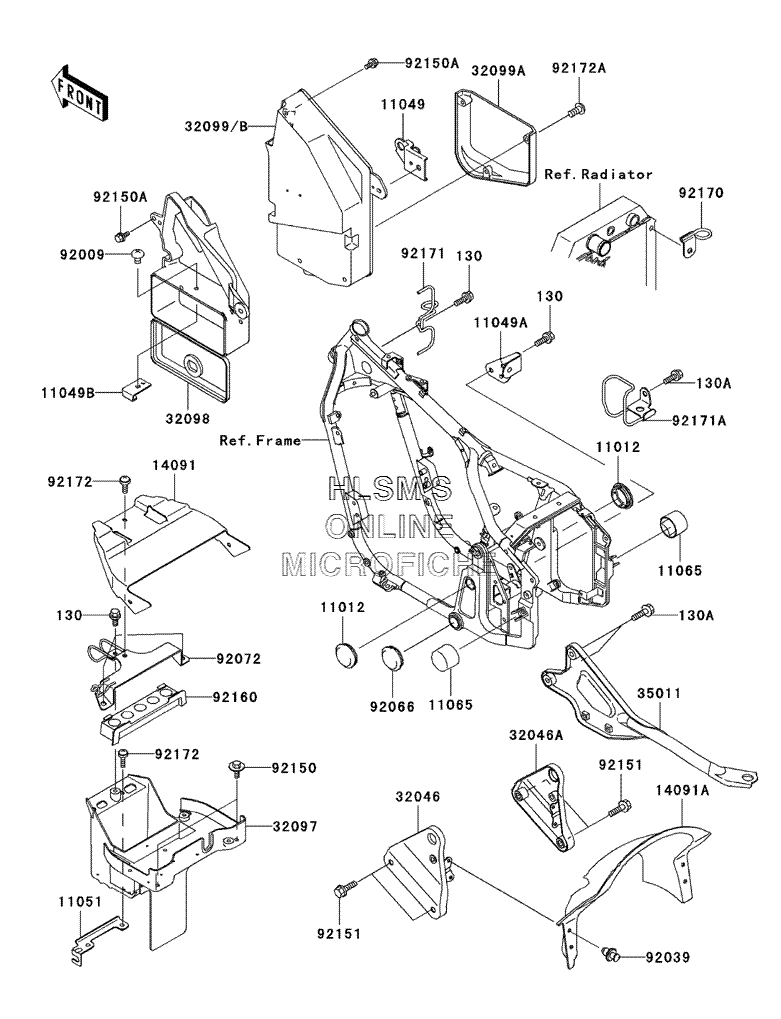

FRAME FITTINGS для Kawasaki Vulcan 800 Drifter - 2003 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0825 BOLT, FLANGED, 8X25 (BLACK)BOLT, FLANGED, 8X25 (BLACK)
-
1101211012-1926 CAPCAP
-
1104911049-1183 BRACKET, SIDE COVER LOCKBRACKET, SIDE COVER LOCK
-
11049A11049-1233 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
11049B11049-1266 BRACKET, TOOL CASE LOCKBRACKET, TOOL CASE LOCK
-
1105111051-1328 BRACKET, STARTER CABLEBRACKET, STARTER CABLE
-
1106511065-1183 CAPCAP
-
1409114091-1060 COVER, ELECTRICCOVER, ELECTRIC
-
14091A14091-1368 COVER, SEAT UNDERCOVER, SEAT UNDER
-
3204632046-1494 BRACKET, SEAT (LEFT)BRACKET, SEAT (LEFT)
-
32046A32046-1495 BRACKET, SEAT (RIGHT)BRACKET, SEAT (RIGHT)
-
3209732097-1189 CASE, BATTERYCASE, BATTERY
-
3209832098-1106 CASE, TOOLCASE, TOOL
-
3209932099-1163 CASE, BASE (CALIF. ONLY)CASE, BASE (CALIF. ONLY)
-
32099A32099-1164 CASECASE
-
32099B32099-1167 CASE, BASE (EXCEPT CALIF.)CASE, BASE (EXCEPT CALIF.)
-
3501135011-1972 STAY, MUFFLERSTAY, MUFFLER
-
9200992009-1653 SCREW, 5X14SCREW, 5X14
-
9203992039-1227 RIVETRIVET
-
9206692066-1434 PLUGPLUG
-
9207292072-1366 BAND, BATTERYBAND, BATTERY
-
9215092150-1133 BOLT, 6X14BOLT, 6X14
-
92150A92150-1689 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9215192151-1442 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
9216092160-1634 DAMPER, BATTERY BANDDAMPER, BATTERY BAND
-
9217092170-1608 CLAMP, CABLECLAMP, CABLE
-
9217192171-1074 CLAMP, HARNESS AND CABLECLAMP, HARNESS AND CABLE
-
92171A92171-1180 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
-
92172A92172-0006 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
