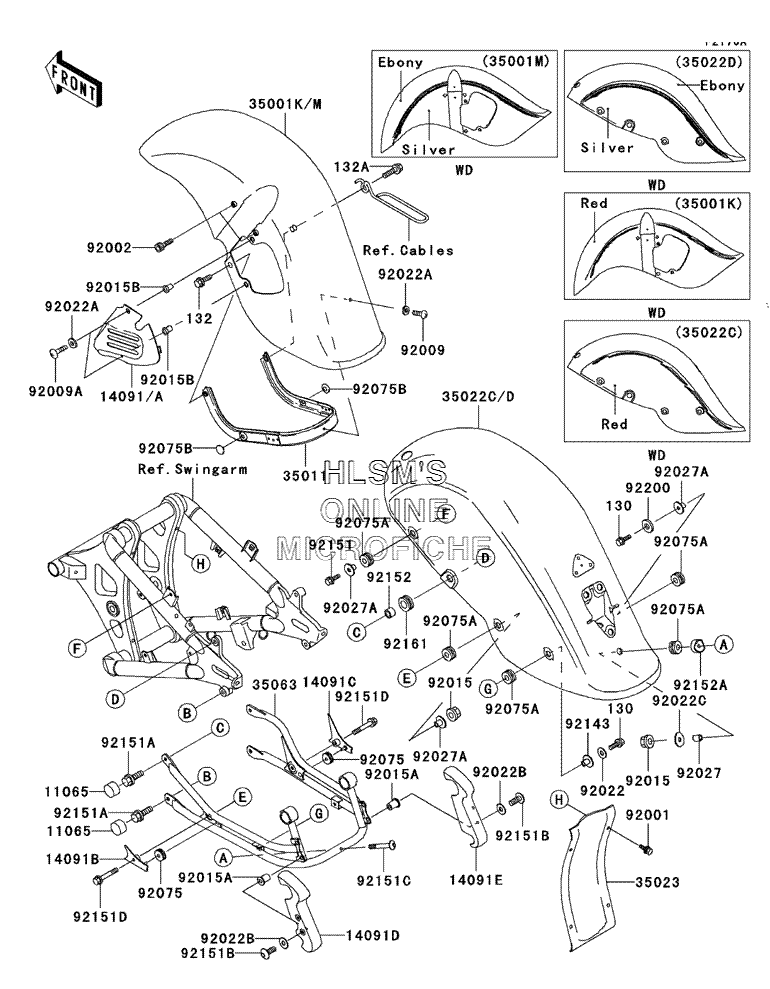

FENDER(S) для Kawasaki Vulcan 800 Drifter - 2003 года выпуска
-
№АртикулНазвание
-
1106511065-1195 CAPCAP
-
1409114091-1059-468 COVER, FRONT CALIPER (M.R.RED)COVER, FRONT CALIPER (M.R.RED)
-
14091B14091-1312 COVER, REAR FENDER STAY, FRONT (LEFT)COVER, REAR FENDER STAY, FRONT (LEFT)
-
14091C14091-1313 COVER, REAR FENDER STAY, FRONT (RIGHT)COVER, REAR FENDER STAY, FRONT (RIGHT)
-
14091D14091-1318 COVER, REAR FENDER STAY, REAR (LEFT)COVER, REAR FENDER STAY, REAR (LEFT)
-
14091E14091-1319 COVER, REAR FENDER STAY, REAR (RIGHT)COVER, REAR FENDER STAY, REAR (RIGHT)
-
35001K35001-5058-468 FENDER, ASSY, FRONT (M.R.RED)FENDER, ASSY, FRONT (M.R.RED)
-
3501135011-1962 STAY, FRONT FENDERSTAY, FRONT FENDER
-
35022C35022-5123-468 FENDER, COMP, REAR (M.R.RED)FENDER, COMP, REAR (M.R.RED)
-
3502335023-1417 FENDER, REARFENDER, REAR
-
3506335063-1150 STAY, REAR FENDERSTAY, REAR FENDER
-
9200192001-1765 BOLT, 6X20BOLT, 6X20
-
9200292002-1179 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9200992009-1652 SCREW, 5X12SCREW, 5X12
-
92009A92009-1654 SCREW, 5X16 (BLACK)SCREW, 5X16 (BLACK)
-
9201592015-1386 NUT, 6MMNUT, 6MM
-
92015A92015-1700 NUTNUT
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
92022A92022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
92022B92022-1654 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
92022C92022-228 WASHER, 7X24X1.6WASHER, 7X24X1.6
-
130130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
132132E0820 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132E0825 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
9202792027-1143 COLLAR, 6.3X10X12COLLAR, 6.3X10X12
-
92027A92027-1450 COLLAR, L=13.1 (BLACK)COLLAR, L=13.1 (BLACK)
-
9207592075-1629 DAMPERDAMPER
-
92075A92075-1690 DAMPERDAMPER
-
92075B92075-261 DAMPER, RUBBERDAMPER, RUBBER
-
9214392143-1960 COLLARCOLLAR
-
9215192151-1488 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92151A92151-1509 BOLT, FLANGED, 10X34BOLT, FLANGED, 10X34
-
92151B92151-1750 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92151C92151-1902 BOLT, SOCKET, 6X50BOLT, SOCKET, 6X50
-
92151D92151-1921 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
9215292152-1165 COLLAR, 11X18X11.5COLLAR, 11X18X11.5
-
92152A92152-1283 COLLARCOLLAR
-
9216192161-1051 DAMPERDAMPER
-
9220092200-1380 WASHER, 6.5X13X4WASHER, 6.5X13X4
