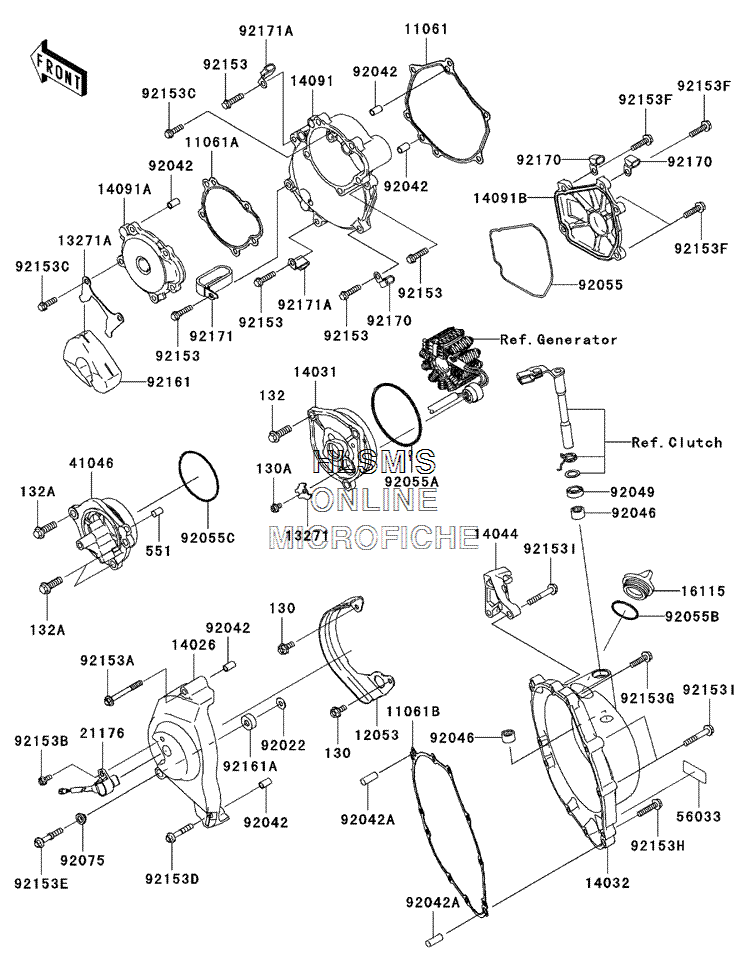

ENGINE COVER для Kawasaki NINJA ZX-10R - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-0047 GASKET, STARTER COVER, LARGEGASKET, STARTER COVER, LARGE
-
11061A11061-0048 GASKET, STARTER COVER, SMALLGASKET, STARTER COVER, SMALL
-
11061B11061-0049 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1205312053-0044 GUIDE, CHAINGUIDE, CHAIN
-
1327113271-0149 PLATEPLATE
-
13271A13271-0265 PLATE, STARTER COVERPLATE, STARTER COVER
-
1402614026-0017 COVER, CHAINCOVER, CHAIN
-
1403114031-0012 COVER, GENERATORCOVER, GENERATOR
-
1403214032-0039 COVER, CLUTCHCOVER, CLUTCH
-
1404414044-0011 HOLDER, CABLE, CLUTCHHOLDER, CABLE, CLUTCH
-
1409114091-0108 COVER, STARTER, LARGECOVER, STARTER, LARGE
-
14091A14091-0109 COVER, STARTER, SMALLCOVER, STARTER, SMALL
-
14091B14091-0303 COVER, PULSINGCOVER, PULSING
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
2117621176-0032 SENSOR, SPEEDSENSOR, SPEED
-
4104641046-0005 HOUSING, BEARINGHOUSING, BEARING
-
5603356033-0061 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9202292022-2373 WASHER, 6.2X15.0X1.2WASHER, 6.2X15.0X1.2
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
92042A92042-044 PIN, DOWEL, 8X22PIN, DOWEL, 8X22
-
9204692046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
9204992049-1475 SEAL, OIL, CLUTCH RELEASESEAL, OIL, CLUTCH RELEASE
-
9205592055-0020 O-RINGO-RING
-
92055A92055-0038 O-RING, 80.8X3.5O-RING, 80.8X3.5
-
92055B92055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
92055C92055-1408 O-RING, 65.2X2.4O-RING, 65.2X2.4
-
9207592075-1855 DAMPERDAMPER
-
9215392153-0604 BOLT, 6X25BOLT, 6X25
-
92153A92153-0609 BOLT, 6X55BOLT, 6X55
-
92153B92153-0630 BOLT, 5X12BOLT, 5X12
-
92153C92153-0631 BOLT, 6X20BOLT, 6X20
-
92153D92153-0690 BOLT, 6X35BOLT, 6X35
-
92153E92153-0691 BOLT, 6X38BOLT, 6X38
-
92153F92153-0732 BOLT, 6X22BOLT, 6X22
-
92153G92153-0764 BOLT, 6X25BOLT, 6X25
-
92153H92153-0765 BOLT, 6X30BOLT, 6X30
-
92153I92153-0766 BOLT, 6X40BOLT, 6X40
-
9216192161-0140 DAMPER, STARTER COVERDAMPER, STARTER COVER
-
92161A92161-0177 DAMPERDAMPER
-
9217092170-1577 CLAMPCLAMP
-
130130L0614 BOLT, FLANGEDBOLT, FLANGED
-
130A130Y0508 BOLT, FLANGED, M5X8BOLT, FLANGED, M5X8
-
132132L0825 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0825 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
551551A0812 PIN, DOWEL, 8X12PIN, DOWEL, 8X12
-
9217192171-0254 CLAMPCLAMP
-
92171A92171-0255 CLAMP, HARNESSCLAMP, HARNESS
