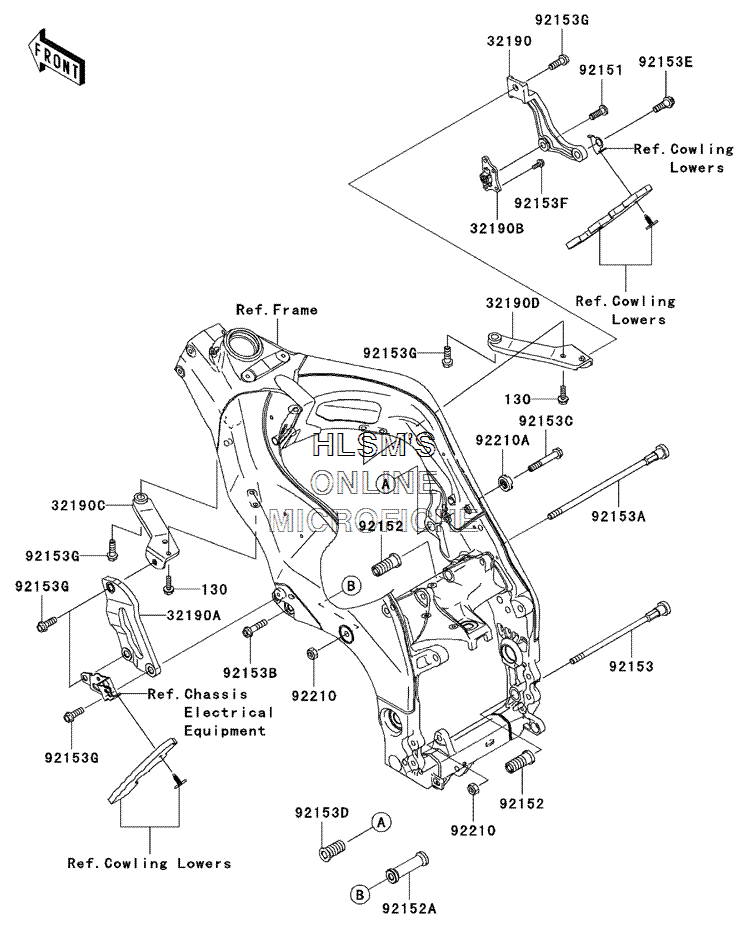

ENGINE MOUNT для Kawasaki NINJA ZX-10R - 2004 года выпуска
-
№АртикулНазвание
-
130130W0822 BOLT, FLANGEDBOLT, FLANGED
-
3219032190-0063 BRACKET, ENGINE (RIGHT/LOWER)BRACKET, ENGINE (RIGHT/LOWER)
-
32190A32190-0114 BRACKET, ENGINE (LEFT/LOWER)BRACKET, ENGINE (LEFT/LOWER)
-
32190B32190-0118 BRACKET, ENGINE, HEAD (RIGHT)BRACKET, ENGINE, HEAD (RIGHT)
-
32190C32190-0119 BRACKET, ENGINE (LEFT/UPPER)BRACKET, ENGINE (LEFT/UPPER)
-
32190D32190-0120 BRACKET, ENGINE (RIGHT/UPPER)BRACKET, ENGINE (RIGHT/UPPER)
-
9215192151-1372 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
9215292152-0076 COLLAR, ENGINE MOUNTCOLLAR, ENGINE MOUNT
-
92152A92152-0096 COLLAR, ENGINE MOUNTCOLLAR, ENGINE MOUNT
-
9215392153-0436 BOLT, SOCKET, 10X227BOLT, SOCKET, 10X227
-
92153A92153-0437 BOLT, SOCKET, 10X279BOLT, SOCKET, 10X279
-
92153B92153-0438 BOLT, FLANGED, 10X42BOLT, FLANGED, 10X42
-
92153C92153-0439 BOLT, FLANGED, 10X67BOLT, FLANGED, 10X67
-
92153D92153-0488 BOLT, SOCKET, 20X43BOLT, SOCKET, 20X43
-
92153E92153-0588 BOLT, FLANGED, 10X31BOLT, FLANGED, 10X31
-
92153F92153-0713 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92153G92153-0801 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
9221092210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1365 NUT, 20MMNUT, 20MM
