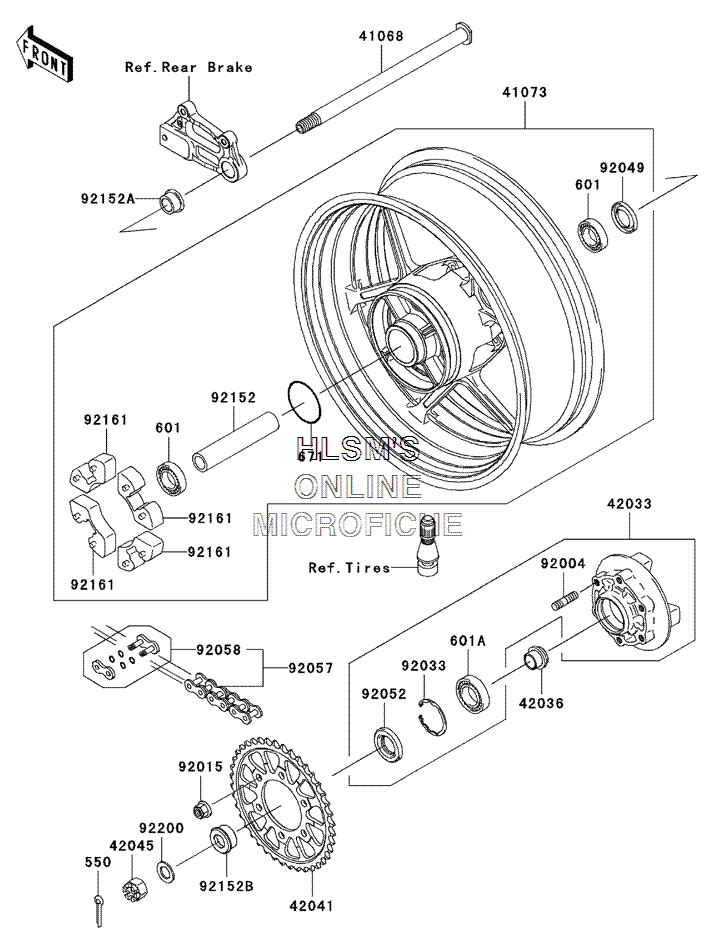

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-10R - 2004 года выпуска
-
№АртикулНазвание
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6204UU BEARING, BALL, 6204UUC3BEARING, BALL, 6204UUC3
-
601A601B6205UU BEARING, BALLBEARING, BALL
-
671671B2560 O-RING, 60MMO-RING, 60MM
-
4106841068-0012 AXLE, REARAXLE, REAR
-
4107341073-0013-R2 WHEEL, ASSY, REAR (BLACK)WHEEL, ASSY, REAR (BLACK)
-
4203342033-0003 COUPLING, ASSY, REAR HUBCOUPLING, ASSY, REAR HUB
-
4203642036-1251 SLEEVE, REAR HUB, L=23SLEEVE, REAR HUB, L=23
-
4204142041-0005 SPROCKET, HUB (39 TEETH)SPROCKET, HUB (39 TEETH)
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9203392033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9204992049-1056 SEAL, OIL, BJN28475SEAL, OIL, BJN28475
-
9205292052-006 SEAL, OIL, TWC35527SEAL, OIL, TWC35527
-
9205792057-0087 CHAIN, DRIVE, RK525MFOX110LCHAIN, DRIVE, RK525MFOX110L
-
9205892058-0005 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9215292152-0088 COLLAR, REAR HUB, L=144.5COLLAR, REAR HUB, L=144.5
-
92152A92152-0105 COLLAR, FRONT AXLE, L=17 (RIGHT)COLLAR, FRONT AXLE, L=17 (RIGHT)
-
92152B92152-0206 COLLAR, FRONT AXLE, L=18 (LEFT)COLLAR, FRONT AXLE, L=18 (LEFT)
-
9216192161-0058 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-1489 WASHER, 19X32X2.6WASHER, 19X32X2.6
