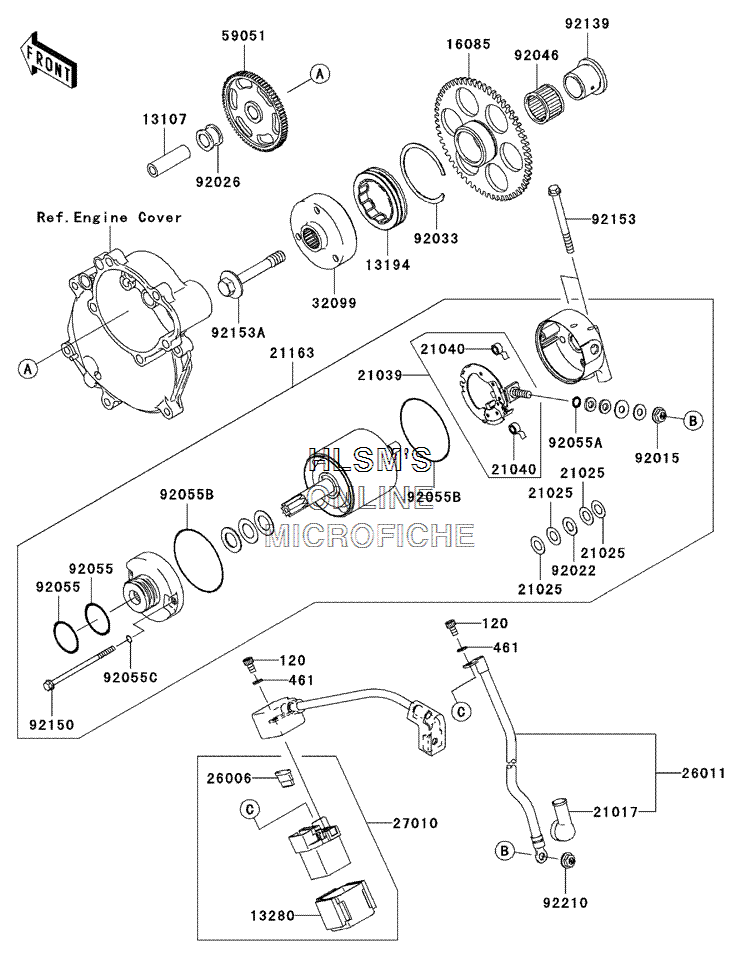

STARTER MOTOR для Kawasaki NINJA ZX-10R - 2004 года выпуска
-
№АртикулНазвание
-
120120S0510 BOLT, SOCKETBOLT, SOCKET
-
461461K0500 WASHER, SPRING, 5MM (BLACK)WASHER, SPRING, 5MM (BLACK)
-
1310713107-0023 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
1319413194-3704 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
1328013280-1263 HOLDERHOLDER
-
1608516085-0012 GEAR, 58TGEAR, 58T
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1066 BRUSHBRUSH
-
2104021040-1057 SPRING, BRUSHSPRING, BRUSH
-
2116321163-0013 STARTER, ELECTRICSTARTER, ELECTRIC
-
2600626006-1006 FUSE, 30A, GFUSE, 30A, G
-
2601126011-0033 WIRE, LEADWIRE, LEAD
-
2701027010-1446 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3209932099-0007 CASECASE
-
5905159051-0012 GEAR, SPUR, IDLEGEAR, SPUR, IDLE
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
9202692026-0024 SPACERSPACER
-
9203392033-3731 RING, SNAPRING, SNAP
-
9204692046-0004 BEARING, NEEDLE, RS263020BEARING, NEEDLE, RS263020
-
9205592055-1276 O-RINGO-RING
-
92055A92055-1370 O-RING, 4.5X2.0O-RING, 4.5X2.0
-
92055B92055-1550 O-RINGO-RING
-
92055C92055-1551 O-RINGO-RING
-
9213992139-0024 BUSHINGBUSHING
-
9215092150-1969 BOLTBOLT
-
9215392153-0018 BOLT, FLANGED, 6X70BOLT, FLANGED, 6X70
-
92153A92153-0451 BOLT, 10X62BOLT, 10X62
-
9221092210-0188 NUT, 6MMNUT, 6MM
