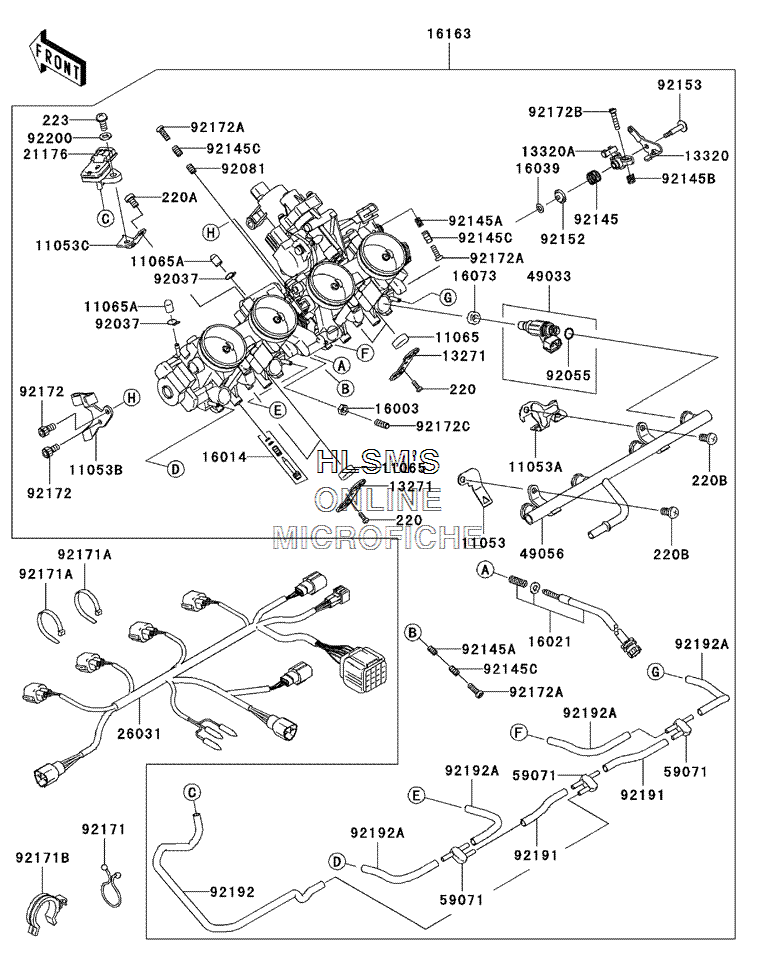

THROTTLE для Kawasaki NINJA ZX-10R - 2004 года выпуска
-
№АртикулНазвание
-
1105311053-0761 BRACKETBRACKET
-
11053A11053-0762 BRACKETBRACKET
-
11053B11053-0966 BRACKETBRACKET
-
11053C11053-0967 BRACKETBRACKET
-
1106511065-0071 CAPCAP
-
11065A11065-0072 CAPCAP
-
1327113271-0343 PLATEPLATE
-
1332013320-0007 LEVER, ASSYLEVER, ASSY
-
13320A13320-0008 LEVER, ASSYLEVER, ASSY
-
1600316003-013 NUT, 5MMNUT, 5MM
-
1601416014-0005 SCREW, PILOT AIRSCREW, PILOT AIR
-
1602116021-0007 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1603916039-038 WASHER, PLAINWASHER, PLAIN
-
1607316073-1123 INSULATOR, INJECTERINSULATOR, INJECTER
-
1616316163-0039 THROTTLE, ASSYTHROTTLE, ASSY
-
2117621176-1118 SENSORSENSOR
-
2603126031-0195 HARNESSHARNESS
-
4903349033-0003 NOZZLE, INJECTIONNOZZLE, INJECTION
-
4905649056-0005 PIPE, INJECTIONPIPE, INJECTION
-
5907159071-0022 JOINTJOINT
-
9203792037-1124 CLAMP, TUBECLAMP, TUBE
-
9205592055-1622 O-RING, INJECTION NOZZLEO-RING, INJECTION NOZZLE
-
9208192081-2008 SPRING, THROTTLE ADJUST SCREWSPRING, THROTTLE ADJUST SCREW
-
9214592145-0209 SPRINGSPRING
-
92145A92145-0210 SPRINGSPRING
-
92145B92145-0212 SPRINGSPRING
-
92145C92145-1184 SPRING, THROTTLE ADJUSTSPRING, THROTTLE ADJUST
-
9215292152-0194 COLLARCOLLAR
-
9215392153-0719 BOLTBOLT
-
9217192171-0355 CLAMPCLAMP
-
92171A92171-0356 CLAMPCLAMP
-
92171B92171-0359 CLAMPCLAMP
-
9217292172-0151 SCREWSCREW
-
92172A92172-0153 SCREWSCREW
-
92172B92172-0154 SCREWSCREW
-
92172C92172-0155 SCREWSCREW
-
9219192191-1552 TUBE, 3.2X7.4X70TUBE, 3.2X7.4X70
-
9219292192-0130 TUBETUBE
-
92192A92192-0131 TUBETUBE
-
9220092200-0147 WASHERWASHER
-
220220D0308 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
220A220D0508 SCREW, PAN, CROSSCREW, PAN, CROS
-
220B220D0612 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
223223D0514 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
